Help with diagnosing my Terminator X
Thread Starter
Joined: Apr 2006
Posts: 3,894
Likes: 1,139
From: Grand Rapids, Michigan
Help with diagnosing my Terminator X I recently installed a Terminator X EFI on my '98 Firebird Formula that's also running a piggyback setup with the factory PCM. Engine is an '06 turbo LH6, 24x/1x with a front mounted cam sensor. I've had some help with getting it tuned, but I've had a few problems pop up that I can't figure out. The first one is, we were street tuning it and out of nowhere it started to run rough. Diagnostic LED #7 was lit up red, cam sensor sync. So I bought a new cam sensor ( the original was the high mileage one from the donor engine )and it seemed to fix it. Was really pulling hard finally. Then it began to run rough again after a few hard pulls. This time both the cam & crank sensor sync popped up red. This only seems to happen when trying full throttle pulls, part throttle it doesn't seem to bother it any. Always seems to happen when it goes heavy into boost. Checked all grounds and harnesses, everything seems fine. What should I be looking for here? Could any of the safeties cause this to occur?
Second problem popped up after trying to figure out if the second fuel pump was working. I have a Racetronix twin 340 in-tank setup. It comes with a double pump hotwire harness that I have wired directly to the alternator. See here: https://www.racetronix.biz/p/udp-hd-...mp280/udph-005. Both pumps have ground switched relays out back. In a factory configuration using the factory PCM, each pump has a connector with a jumper wire so they both switch on at the same time. I didn't want that, so I used the Holley's green fuel pump wire and tied that into my integration harness's fuel pump request wire. This sends the request through the factory relay/fuse setup first, and then back to the relay in the rear of the car. On this pump, I left the jumper wire in place, as it allows the factory computer to control the pump as normal. Prior to testing to see if the second pump would turn on, the first pump worked fine. The second pump uses a ground side switched output from the Terminator X that's supposed to turn on at 2 psi boost and above 3000 RPM. We did some testing and found 61 Ohms resistance to ground when the pump was commanded on, which didn't sound right. Either way, my main problem occurred when I disconnected the output from the Holley and instead replaced it with the jumper that comes in the Racetronix kit. I meant to disconnect it after testing, but I drove the car for a few minutes with it. I figured that out, and reconnected everything as it was. However, every time the car goes into boost now, the fuel pump shuts right off. Like the green fuel pump output wire is shutting off the pump, nothing else makes sense. As soon as it's out of boost, fuel pressure goes back to normal. Every time it hits boost, instantly shuts off. Anyone have any idea what I should look for?
I posted this up on the Holley forum as well, and it was suggested to do a firmware update, so I'll make a go of that - In the meantime I just wanted to see if anyone has ran across either of these issues or knows what could cause them.
Second problem popped up after trying to figure out if the second fuel pump was working. I have a Racetronix twin 340 in-tank setup. It comes with a double pump hotwire harness that I have wired directly to the alternator. See here: https://www.racetronix.biz/p/udp-hd-...mp280/udph-005. Both pumps have ground switched relays out back. In a factory configuration using the factory PCM, each pump has a connector with a jumper wire so they both switch on at the same time. I didn't want that, so I used the Holley's green fuel pump wire and tied that into my integration harness's fuel pump request wire. This sends the request through the factory relay/fuse setup first, and then back to the relay in the rear of the car. On this pump, I left the jumper wire in place, as it allows the factory computer to control the pump as normal. Prior to testing to see if the second pump would turn on, the first pump worked fine. The second pump uses a ground side switched output from the Terminator X that's supposed to turn on at 2 psi boost and above 3000 RPM. We did some testing and found 61 Ohms resistance to ground when the pump was commanded on, which didn't sound right. Either way, my main problem occurred when I disconnected the output from the Holley and instead replaced it with the jumper that comes in the Racetronix kit. I meant to disconnect it after testing, but I drove the car for a few minutes with it. I figured that out, and reconnected everything as it was. However, every time the car goes into boost now, the fuel pump shuts right off. Like the green fuel pump output wire is shutting off the pump, nothing else makes sense. As soon as it's out of boost, fuel pressure goes back to normal. Every time it hits boost, instantly shuts off. Anyone have any idea what I should look for?
I posted this up on the Holley forum as well, and it was suggested to do a firmware update, so I'll make a go of that - In the meantime I just wanted to see if anyone has ran across either of these issues or knows what could cause them.
I recently installed a Terminator X EFI on my '98 Firebird Formula that's also running a piggyback setup with the factory PCM. Engine is an '06 turbo LH6, 24x/1x with a front mounted cam sensor. I've had some help with getting it tuned, but I've had a few problems pop up that I can't figure out. The first one is, we were street tuning it and out of nowhere it started to run rough. Diagnostic LED #7 was lit up red, cam sensor sync. So I bought a new cam sensor ( the original was the high mileage one from the donor engine )and it seemed to fix it. Was really pulling hard finally. Then it began to run rough again after a few hard pulls. This time both the cam & crank sensor sync popped up red. This only seems to happen when trying full throttle pulls, part throttle it doesn't seem to bother it any. Always seems to happen when it goes heavy into boost. Checked all grounds and harnesses, everything seems fine. What should I be looking for here? Could any of the safeties cause this to occur?
Second problem popped up after trying to figure out if the second fuel pump was working. I have a Racetronix twin 340 in-tank setup. It comes with a double pump hotwire harness that I have wired directly to the alternator. See here: https://www.racetronix.biz/p/udp-hd-...mp280/udph-005. Both pumps have ground switched relays out back. In a factory configuration using the factory PCM, each pump has a connector with a jumper wire so they both switch on at the same time. I didn't want that, so I used the Holley's green fuel pump wire and tied that into my integration harness's fuel pump request wire. This sends the request through the factory relay/fuse setup first, and then back to the relay in the rear of the car. On this pump, I left the jumper wire in place, as it allows the factory computer to control the pump as normal. Prior to testing to see if the second pump would turn on, the first pump worked fine. The second pump uses a ground side switched output from the Terminator X that's supposed to turn on at 2 psi boost and above 3000 RPM. We did some testing and found 61 Ohms resistance to ground when the pump was commanded on, which didn't sound right. Either way, my main problem occurred when I disconnected the output from the Holley and instead replaced it with the jumper that comes in the Racetronix kit. I meant to disconnect it after testing, but I drove the car for a few minutes with it. I figured that out, and reconnected everything as it was. However, every time the car goes into boost now, the fuel pump shuts right off. Like the green fuel pump output wire is shutting off the pump, nothing else makes sense. As soon as it's out of boost, fuel pressure goes back to normal. Every time it hits boost, instantly shuts off. Anyone have any idea what I should look for?
I posted this up on the Holley forum as well, and it was suggested to do a firmware update, so I'll make a go of that - In the meantime I just wanted to see if anyone has ran across either of these issues or knows what could cause them.
Second problem popped up after trying to figure out if the second fuel pump was working. I have a Racetronix twin 340 in-tank setup. It comes with a double pump hotwire harness that I have wired directly to the alternator. See here: https://www.racetronix.biz/p/udp-hd-...mp280/udph-005. Both pumps have ground switched relays out back. In a factory configuration using the factory PCM, each pump has a connector with a jumper wire so they both switch on at the same time. I didn't want that, so I used the Holley's green fuel pump wire and tied that into my integration harness's fuel pump request wire. This sends the request through the factory relay/fuse setup first, and then back to the relay in the rear of the car. On this pump, I left the jumper wire in place, as it allows the factory computer to control the pump as normal. Prior to testing to see if the second pump would turn on, the first pump worked fine. The second pump uses a ground side switched output from the Terminator X that's supposed to turn on at 2 psi boost and above 3000 RPM. We did some testing and found 61 Ohms resistance to ground when the pump was commanded on, which didn't sound right. Either way, my main problem occurred when I disconnected the output from the Holley and instead replaced it with the jumper that comes in the Racetronix kit. I meant to disconnect it after testing, but I drove the car for a few minutes with it. I figured that out, and reconnected everything as it was. However, every time the car goes into boost now, the fuel pump shuts right off. Like the green fuel pump output wire is shutting off the pump, nothing else makes sense. As soon as it's out of boost, fuel pressure goes back to normal. Every time it hits boost, instantly shuts off. Anyone have any idea what I should look for?
I posted this up on the Holley forum as well, and it was suggested to do a firmware update, so I'll make a go of that - In the meantime I just wanted to see if anyone has ran across either of these issues or knows what could cause them.
That said I attempted to use the same harness on my car going thru the factory relay and it flat out didn't work. For whatever reason I couldn't get power to the pumps using that harness. I was diagnosing it for like 3 days along side of talking to Racetronix and after all of that they still said it was something I was overlooking. I pulled it out cut up the harness and wired the pumps up and haven't had an issue since. Good luck.
Last edited by 91 Z28; Aug 24, 2024 at 01:11 PM.
Thread Starter
Joined: Apr 2006
Posts: 3,894
Likes: 1,139
From: Grand Rapids, Michigan
The way it's wired in, the green Terminator X pump trigger wire is connected to my integration harness, which then uses the factory relay to turn on pump #1. Pump #2 is configured using one of the Terminator X outputs, and is supposed to turn on over 3000 RPM and 2 lbs. of boost. Pump #2 isn't even needed yet, though, as I'm just running on 93 octane and on my 7 lb. wastegate spring. Aside from cutting off under boost, pump #1 works perfectly fine. I am going to have to pull the relay for pump #1 to test if pump #2 is working, though. I can't tell one pump running over two when they're in the tank side by side.
The way it's wired in, the green Terminator X pump trigger wire is connected to my integration harness, which then uses the factory relay to turn on pump #1. Pump #2 is configured using one of the Terminator X outputs, and is supposed to turn on over 3000 RPM and 2 lbs. of boost. Pump #2 isn't even needed yet, though, as I'm just running on 93 octane and on my 7 lb. wastegate spring. Aside from cutting off under boost, pump #1 works perfectly fine. I am going to have to pull the relay for pump #1 to test if pump #2 is working, though. I can't tell one pump running over two when they're in the tank side by side.
Edit: Yes it does have that function. No need to pull any relays just hook up your laptop, key on and hit the output test button at the top. It'll show all your outputs and you can turn each one on from there
Thread Starter
Joined: Apr 2006
Posts: 3,894
Likes: 1,139
From: Grand Rapids, Michigan
Copied this from a post I made on the Holley forum, just to get more eyes on it. @91 Z28 , looking at my wiring explanation below, do you see anything wrong with how I wired it?

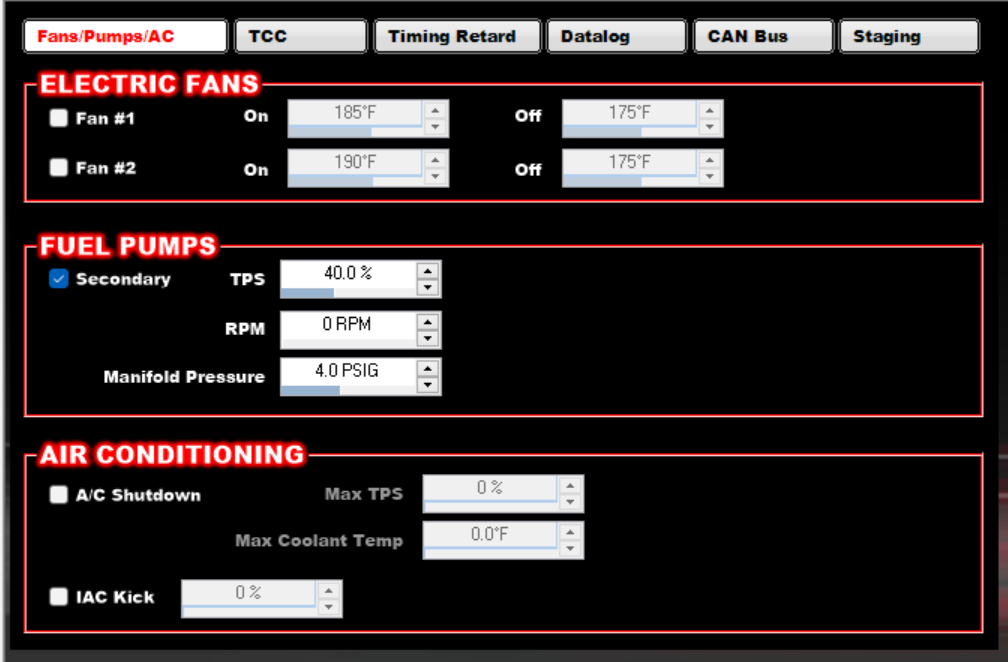

I did some diagnostics on the secondary fuel pump not turning on, and I don't know what is causing it yet. I verified that both pumps function correctly by switching which pump is the primary and which is secondary. I did an output test for the secondary pump, which is on pin B10, and it didn't turn on. I hooked my volt meter to the output and set it to ohms, and when I triggered the output, it was reading 40-60 ohms. I'm wondering if I have the secondary pump wired incorrectly? Here is a pic of where it gets tied into the double pump harness: https://www.racetronix.com/product/F...PH-005-1-L.jpg I left one of those looped terminals in, so the factory relay turns on the pump. That part works fine, and is triggered by the green fuel pump output wire on the Holley.
