Vin From Thread 28 / Build Sheet / Take Notice / Order Type 10 - PEP /Special Event..



Order Type 10 was used for all Special Event Vehicles...Could be New car shows, Pace Cars etc...
See Below:


Vehicle Information
VIN: 2G2FV22G922125425 Model: 2FV87-2002 PONTIAC FIREBIRD TRANS AM
Service Contract: No Branded Title: No Warranty Block: No PDI Status: No
Order Type: 10 - P.E.P./SPL EVENT
Field Actions: 0 Open


Vehicle Build
Model: 2FV87-2002 PONTIAC FIREBIRD TRANS AM Order Number: DQFZ1V
Gross Vehicle Weight: 1,930 Build Date: 11/07/2001
Build Plant: 2-




Option Codes
*IVH is not the definitive source of GM Vehicle RPO information and is intended for service reference only. Should there be any questions about the vehicle's original build or RPO information please refer to the original vehicle invoice or window sticker.

194 - TRIM, EBONY 19I - INT TRIM, EBONY
1SA - OPTION GROUP - 1SA 54U - COLLECTOR YELLOW
6BT - COMPONENT FRT LH COMPUT SEL SUS 7BT - COMPONENT FRT RH COMPUT SEL SUS
8TJ - COMPONENT RR LH COMPUT SEL SUSP 9TJ - COMPONENT RR RH COMPUT SEL SUSP
AAA - STANDARD EQUIPMENT PROCESSING OPTION AG1 - 6-WAY POWER DRIVER SEAT
AK5 - DUAL FRONTAL AIR BAGS AQ9 - CUSTOM BUCKET SEATS W/ADJUSTABLE LUMBAR SUPPORTS
AU0 - REMOTE KEYLESS ENTRY BBS - HURST SHIFTER
C60 - AIR CONDITIONING, CUSTOM CAF - HANDLING CHARGE-ST. THERESE TO AMERICAN SUNROOF
CC1 - LOCKING HATCH ROOF, REMOVABLE DE4 - HATCH ROOF SUNSHADES, REMOVABLE
DG7 - DUAL POWER SPORT MIRRORS DL5 - DECAL ROADSIDE SERVICE
FE4 - RIDE & HANDLING SPECIAL SUSPENSION SYSTEM FE9 - 50-STATE LOW EMISSION VEHICLE
G80 - LIMITED SLIP TORSEN REAR DIFFERENTIAL GU6 - 3.4 RATIO REAR AXLE
IL4 - TRIM INTERIOR DESIGN J65 - BRAKES, PWR 4-WHL,DISC FRT & RR
K43 - 102 AMP GENERATOR LS1 - 5.7 LITER SFI V8 ENGINE
MM6 - TRANSMISSION, 6-SPEED MANUAL MN6 - TRANSMISSION, 6-SPEED MANUAL
NF7 - FEDERAL LOW EMISSION NP5 - STEERING WHEEL, LEATHER WRAPPED W/LEATHER WRAPPED SHIFT ****
PBT - TEMP. WHL & TIRE-UPFITTER DLVY PDC - SECURITY PACKAGE CONSISTS OF: THEFT DETERRENT SYSTEM REMOTE KEYLESS ENTRY
PDN - POWER PACKAGE QA9 - WHEEL 17X9 ALUM, PAINTED
QFK - TIRES, P275/40ZR17 SPEED RATED R6J - CDN
R7C - EXPEDITE PROCESSING OF ORDERS SLM - SALES STOCK ORDERS
STE - ASM PLT ST. THERESE T43 - SPOILER, REAR DECK LID
T78 - HEADLAMP CONTROL DELETE U1S - REMOTE COMPACT DISC CHANGER, TRUNK MOUNTED, 12 DISC CAPACITY
U75 - POWER ANTENNA UA6 - THEFT DETERRENT SYSTEM
UB3 - RALLY GAGES W/TACHOMETER UK3 - LEATHER WRAPPED STEERING WHEEL W/RADIO CONTROLS
V12 - POWER STEERING COOLING SYSTEM V73 - VEHICLE CERTIFICATION U.S.
VE2 - PROTECTOR SOURCE APPLIED VM3 - BUMPER STD IMPACT 5 MPH FRT &RR
W55 - RADIO ETR AM/FM STEREO W/COMPACT DISC PLAYER AND GRAPHIC EQUALIZER, INCL. CLOCK, SEEK UP/DOWN, REMOTE CD PRE-WIRING, MONSOON 500 WATT PEAK POWER W/10 SPEAKER PREMIUM SOUND SYSTEM AND STEERING WHEEL, LEATHER WRAPPED, W/RADIO CONTROLS WS6 - RAM AIR PERFORM.& HANDLING PKG: * RAM AIR INDUCTION SYSTEM * FUNCTIONAL AIR SCOOPS * 17" HIGH POLISHED ALUMINUM WHEELS * P275/40ZR17 SPEED RATED TIRES * SPECIFIC LOW RESTRICTION DUAL EXHAUST SYSTEM * SPECIFIC TUNED SUSPENSION
WS9 - FORMULA OPTION Y82 - TRANS AM OPTION
Z15 - ******************************* * COLLECTORS EDITION * *******************************



If you notice, this vehicle was not delivered by a dealer...Invoicing was to GM



Vehicle Information
VIN: 2G2FV22G922125425 Model: 2FV87-2002 PONTIAC FIREBIRD TRANS AM
Service Contract: No Branded Title: No Warranty Block: No PDI Status: No
Order Type: 10 - P.E.P./SPL EVENT
Field Actions: 0 Open


Invoice Information
Invoicing Service Agent: 165940
GENERAL MOTORS COMPANY
7111 E.11 MILE ROAD
WARREN MI 48092-2709 Invoice Date: 12/05/2001



Ship to Information
Invoicing Service Agent: 1676116


Ship to Date: N/A



Delivery Information
Delivery Service Agent: . Delivery Date: N/A
Delivery Type:
Delivery Odometer: 0



In Service Information
Invoicing Service Agent: In Service Date: N/A
In Service Type: 0000
In Service Odometer: 0



Check out the build date..22100004...Daytona was Feb 18th in 2001...Gonna be hard to make from canada to ASC to Daytona for the Daytona Race...



Vehicle Information
VIN: 2G2FV22G322100004 Model: 2FV87-2002 PONTIAC FIREBIRD TRANS AM
Service Contract: No Branded Title: No Warranty Block: No PDI Status: No
Order Type: 10 - P.E.P./SPL EVENT
Field Actions: 0 Open


Vehicle Build
Model: 2FV87-2002 PONTIAC FIREBIRD TRANS AM Order Number: PPF004
Gross Vehicle Weight: 1,934 Build Date: 03/13/2001
Build Plant: 2-




Option Codes
*IVH is not the definitive source of GM Vehicle RPO information and is intended for service reference only. Should there be any questions about the vehicle's original build or RPO information please refer to the original vehicle invoice or window sticker.

194 - TRIM, EBONY 19I - INT TRIM, EBONY
1SA - OPTION GROUP - 1SA 54U - COLLECTOR YELLOW
6BT - COMPONENT FRT LH COMPUT SEL SUS 7BT - COMPONENT FRT RH COMPUT SEL SUS
8TJ - COMPONENT RR LH COMPUT SEL SUSP 9TJ - COMPONENT RR RH COMPUT SEL SUSP
AG1 - 6-WAY POWER DRIVER SEAT AK5 - DUAL FRONTAL AIR BAGS
AQ9 - CUSTOM BUCKET SEATS W/ADJUSTABLE LUMBAR SUPPORTS AU0 - REMOTE KEYLESS ENTRY
BBS - HURST SHIFTER C60 - AIR CONDITIONING, CUSTOM
CAF - HANDLING CHARGE-ST. THERESE TO AMERICAN SUNROOF CC1 - LOCKING HATCH ROOF, REMOVABLE
DE4 - HATCH ROOF SUNSHADES, REMOVABLE DG7 - DUAL POWER SPORT MIRRORS
FE4 - RIDE & HANDLING SPECIAL SUSPENSION SYSTEM FE9 - 50-STATE LOW EMISSION VEHICLE
G80 - LIMITED SLIP TORSEN REAR DIFFERENTIAL GU6 - 3.4 RATIO REAR AXLE
IL4 - TRIM INTERIOR DESIGN J65 - BRAKES, PWR 4-WHL,DISC FRT & RR
K43 - 102 AMP GENERATOR LS1 - 5.7 LITER SFI V8 ENGINE
MM6 - TRANSMISSION, 6-SPEED MANUAL MN6 - TRANSMISSION, 6-SPEED MANUAL
NF7 - FEDERAL LOW EMISSION NP5 - STEERING WHEEL, LEATHER WRAPPED W/LEATHER WRAPPED SHIFT ****
NW9 - TRACTION CONTROL PBT - TEMP. WHL & TIRE-UPFITTER DLVY
PDC - SECURITY PACKAGE CONSISTS OF: THEFT DETERRENT SYSTEM REMOTE KEYLESS ENTRY QA9 - WHEEL 17X9 ALUM, PAINTED
QFK - TIRES, P275/40ZR17 SPEED RATED STE - ASM PLT ST. THERESE
T43 - SPOILER, REAR DECK LID T78 - HEADLAMP CONTROL DELETE
U1S - REMOTE COMPACT DISC CHANGER, TRUNK MOUNTED, 12 DISC CAPACITY U75 - POWER ANTENNA
UA6 - THEFT DETERRENT SYSTEM UB3 - RALLY GAGES W/TACHOMETER
UK3 - LEATHER WRAPPED STEERING WHEEL W/RADIO CONTROLS V12 - POWER STEERING COOLING SYSTEM
V73 - VEHICLE CERTIFICATION U.S. VE2 - PROTECTOR SOURCE APPLIED
W55 - RADIO ETR AM/FM STEREO W/COMPACT DISC PLAYER AND GRAPHIC EQUALIZER, INCL. CLOCK, SEEK UP/DOWN, REMOTE CD PRE-WIRING, MONSOON 500 WATT PEAK POWER W/10 SPEAKER PREMIUM SOUND SYSTEM AND STEERING WHEEL, LEATHER WRAPPED, W/RADIO CONTROLS WD0 - "CAPTIVE FLEET" ORDERS
WD1 - PILOT PROCESSING OPTION WS6 - RAM AIR PERFORM.& HANDLING PKG: * RAM AIR INDUCTION SYSTEM * FUNCTIONAL AIR SCOOPS * 17" HIGH POLISHED ALUMINUM WHEELS * P275/40ZR17 SPEED RATED TIRES * SPECIFIC LOW RESTRICTION DUAL EXHAUST SYSTEM * SPECIFIC TUNED SUSPENSION
WS9 - FORMULA OPTION Y82 - TRANS AM OPTION
Z15 - ******************************* * COLLECTORS EDITION * *******************************



221000004 Delivery info..



View Vehicle Delivery Information






This screen allows IVH users to view the available information for the selected VIN delivered to the Service Agent and the ultimate customer. Not all sections will be populated for all VINs.


Vehicle Information
VIN: 2G2FV22G322100004 Model: 2FV87-2002 PONTIAC FIREBIRD TRANS AM
Service Contract: No Branded Title: No Warranty Block: No PDI Status: No
Order Type: 10 - P.E.P./SPL EVENT
Field Actions: 0 Open


Invoice Information
Invoicing Service Agent: 000020
CIPS Dummy Dealer Chile

Invoice Date: 10/09/2001



Ship to Information
Invoicing Service Agent: 137066
TRANSGLOBAL LLC
1020 DORIS RD
AUBURN HILLS MI 48326-2613 24834062460000 Ship to Date: N/A



Delivery Information
Delivery Service Agent: . Delivery Date: N/A
Delivery Type:
Delivery Odometer: 0



In Service Information
Invoicing Service Agent: In Service Date: N/A
In Service Type: 0000
In Service Odometer: 0



You would be better off having that from PHS or Daytona. I'm sure there is a pace car registery or website somewhere



These cars paced the 2002 race



PHS was no help too new. Texasless thanks for the info but yea these cars did pace the 02 race not the 01 race.



Invoice Information
Invoicing Service Agent: 000020
CIPS Dummy Dealer Chile

Invoice Date: 10/09/2001


Wonder what this means???



Yep,,,,you're right...2002 race....My bad...I was just looking @ build date. The Chile thing ? No clue



any chance u still have this guys info. I just bought a 2002 CE Daytona with no paper work. I’m having a hard time trying to confirm it’s originality.



Is @jrinehart81 still around? Wonder how his car is doing. With his SPID it shows his is a Pilot car.
Do these other ones have a pic of the SPID for them?



@jrinehart81 hasn't posted on here since 2012, so doubtful.



I don’t have a pic of the SPIDs, but have the VINs & RPOs for them. What is your question? I think there were only a few options available on these. Manual/auto, CD changer and traction control/ASR I think, along with the Hurst shifter for the M6 cars.



That is correct, 2001 was the last year a Cassette HU was offered.



I was wondering if the ones that were Pilot cars or Pace cars had the Pilot option codes?
(like the one jrinehart81 showed)

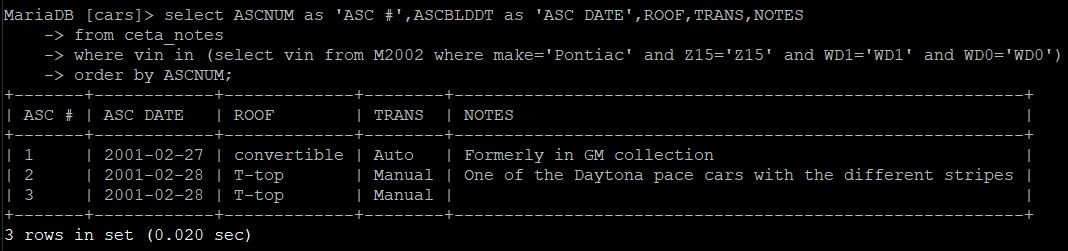

Looks like the first 3 CETA had WD0 (Platform Containment Vehicle) and WD1 (Pilot Vehicle). Two manual coupes and an automatic convertible. The SPID above (vin 004) is ASC# 2.

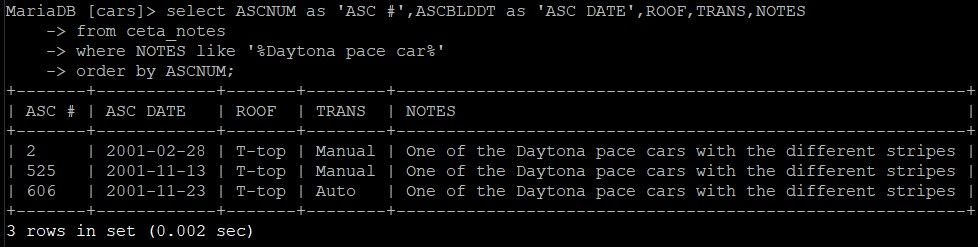

These columns/data was imported from the ASC spreadsheets. Their notes indicate that ASC #2, #525 & #606 were "One of the Daytona pace cars with the different stripes". Other cars have notes like "Daytona parade car, Dale Earnhardt Jr" and "Daytona parade car, Jimmie Johnson".


FYI RPO's pulled from a separate source support the ASC data of two manuals and one automatic. I know a post above says otherwise.



ASC conversion sequence isn't always the same as the VIN sequence, You have a point..



To close the loop on this, CompNine's records indicate that ALL '02 T/As and Formulas got the W55 HU (coupes) / and T/A 'verts got the X20 HU. There was a W53 HU that I suspect was standard on the V6 Firebird coupes while W55 was optional. Curiously, all V6 Firebird 'verts got the X20 HU.



Forgot about this thread.

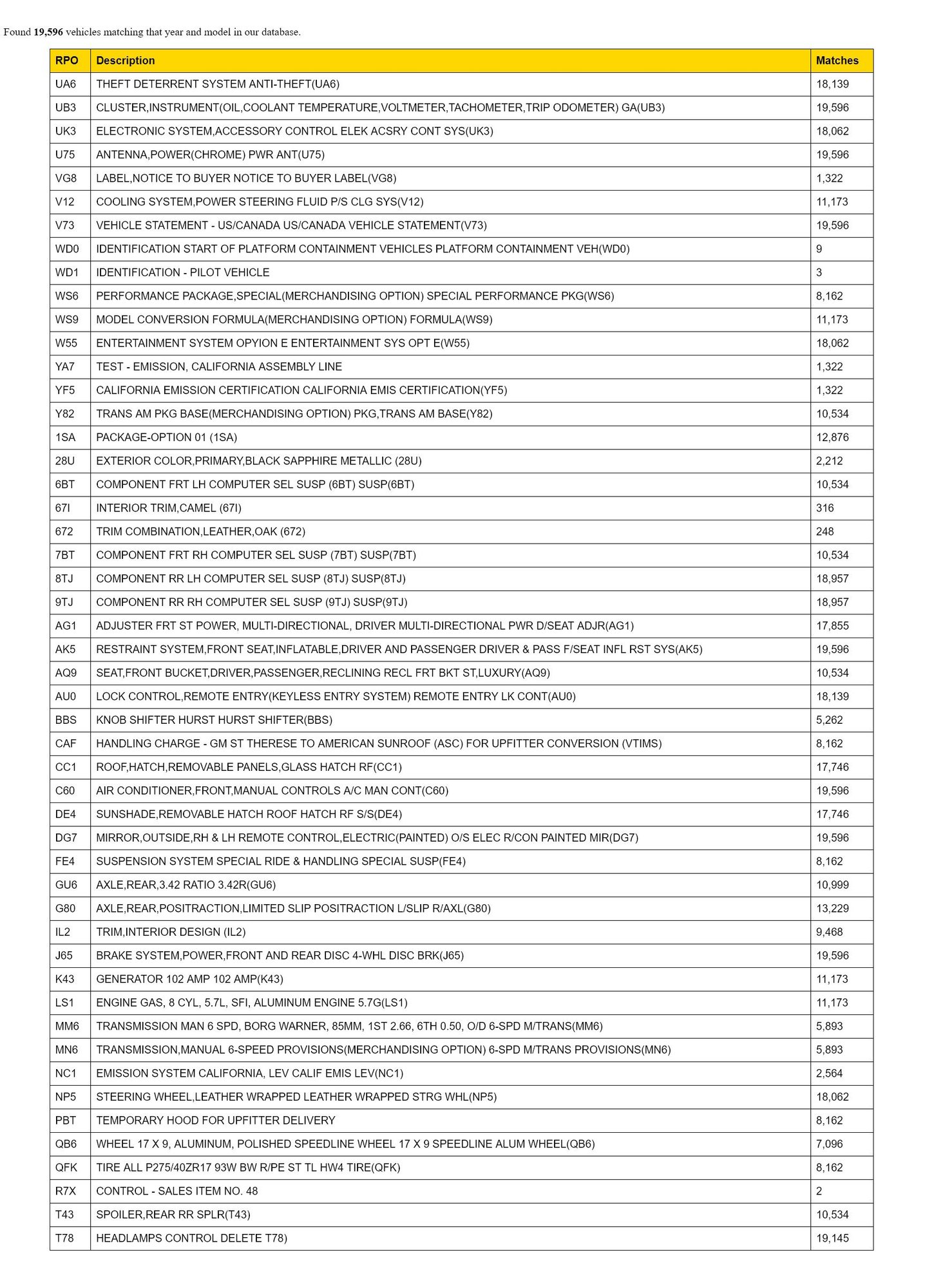

I have the compnine report for a Pace car, showing one of 3 made. It is manual tranny and T-Top, probably ASC 525?.



I can confirm there were 3 WD1 WS6 CETAs. ASC numbers 1, 2 and 3. All built in late February 2001.

Based on the R7X and MN6 I can say that car is probably CETA #2.
