I haven't been able to do anything to the car in years & finally decided to finish off the top end of the engine & upgrade the wheels, tires & brakes.

I'm still waiting on the front wheels to show up before I start everything, but since I had all the parts laying around, I figured I'd snap some pics.

I'm relocating the coil packs with the Proform brackets (similar to the Katech design) & painting the coils to match the intake.





Trickflow 215's with titanium retainers

98-mongooSSe

iTrader: (2)

Weld S71's - Rear 18x10.5


Medium pad design


Front: Michelin Pilot Super Sports 285/35/18, Rears: M/T ET Streets 305/35/18

98-mongooSSe

iTrader: (2)

14" Front rotors, 12.9" Rears

blackbyrd

iTrader: (14)

Looks nice! That topend combo really pops

micbegz28

iTrader: (5)

Very nice ! That top end set up looks straight out of a magazine

eb110americana

iTrader: (4)

Looks like you have the same front brakes I do, but with cross drilled rotors in black (mine are slotted with black calipers only). I found that the pads wind up sitting partially off the outer edge of the rotor when shimmed correctly. I confirmed this with Wilwood, who said this should not be an issue. This appears to result from using a caliper from a smaller rotor on several kits, including this 14" as the largest one.

98-mongooSSe

iTrader: (2)

Thanks guys.

Eb110, thanks for the heads up. I don't suppose you'd have a close up pic of this pad alignment, would you?

eb110americana

iTrader: (4)

ONE SHIM:
With one shim, the pads sit correctly on the rotor swept surface, but the caliper is too close to the outer edge of the rotor.











FOUR SHIMS:

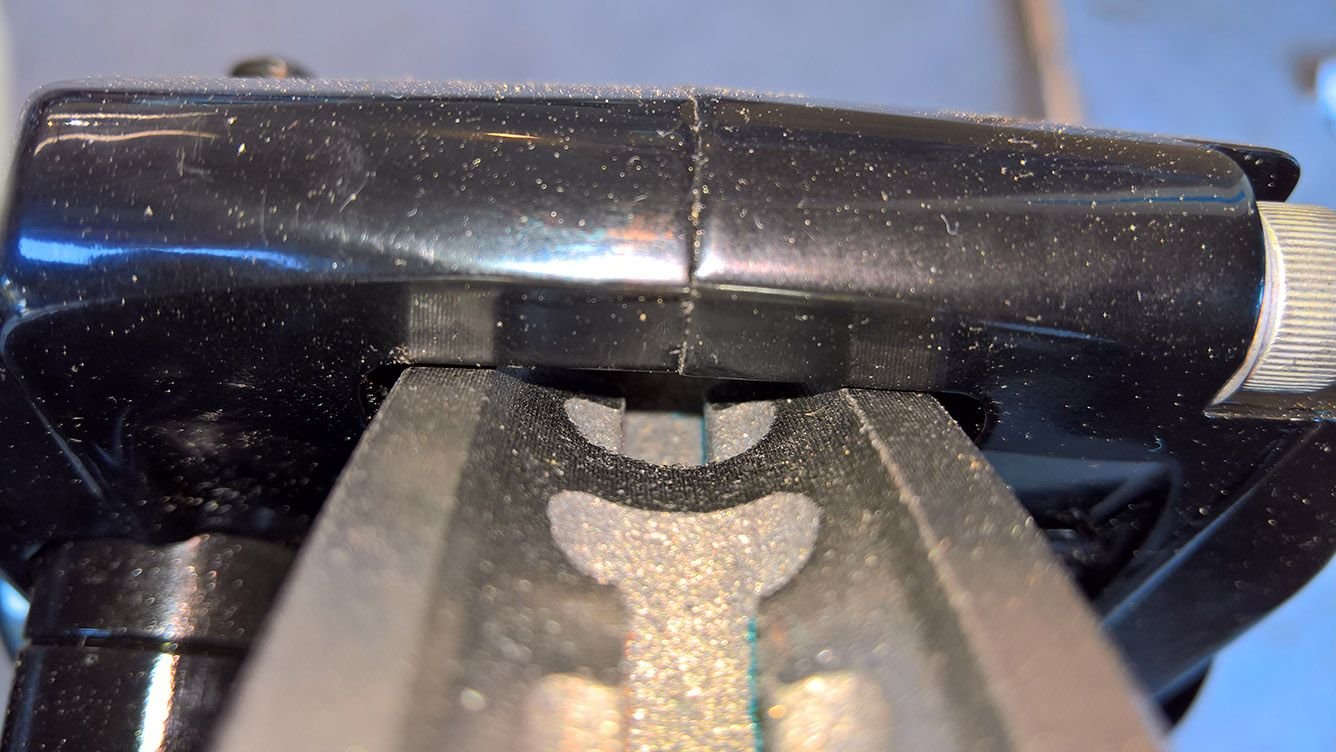

With four shims (and you may find that three works for you), the pads hang off the outer edge of the rotor at their center. However, the clearance between the rotor and caliper is now within spec.













These are the same pics Wilwood support looked at and approved with 4 shims.

383z

iTrader: (2)

You bounced back with some great parts. I love buying new parts. They look f'n awesome!

98-mongooSSe

iTrader: (2)

Thanks for the detailed pics! I would have questioned that when building it for sure. Did you have to shim the mounting bracket more than one to get the caliper to center over the rotor?

eb110americana

iTrader: (4)

To be honest, I don't remember anymore. I think whatever it said in the instructions was right the first time on caliper centering.
