Need help please 4L60e
Thread Starter
Teching In
Joined: Feb 2016
Posts: 36
Likes: 0
Need help please 4L60e Hi every1
I bought 6.0L LQ9 2003 of Sierra for my 70 Camaro.
Which I am converting to LS2.i have th400 and just bought 4L60e 1997 of astro van.so like to know if I want to put 4L60e on my lq9 what parts need to be replace to install the trany with the engine.please if any one can write me a list what parts will I need.I have all the swap parts from brp.
Thank you
I bought 6.0L LQ9 2003 of Sierra for my 70 Camaro.
Which I am converting to LS2.i have th400 and just bought 4L60e 1997 of astro van.so like to know if I want to put 4L60e on my lq9 what parts need to be replace to install the trany with the engine.please if any one can write me a list what parts will I need.I have all the swap parts from brp.
Thank you
Moderator
Joined: Aug 2010
Posts: 7,323
Likes: 529
From: Ann Arbor, MI
First a '97 will not bolt up directly to an LS engine, but only needs a spacer and the enlargement of the holes in the flexplate. My sticky documents the details:
https://ls1tech.com/forums/automatic...s-spacers.html
My real concern is taking a nearly 20 year old trans, likely with a zillion miles, which was designed for 300HP/TQ engine and hooking it up to a 450HP+ engine. If this trans was never rebuilt, there is a good chance it will fail after just a few WOT runs, which will not only ruin the trans and the converter, but also waste a lot of your time and/or money.
GM make improvements in '98 to handle the additional power of the LS1 engine and again in '03 to handle the additional power of LS2 engines. Besides the weak 3/4 clutch, the sun shell and forward sprag are common failure points when an old 4L60E is hooked up to a powerful LSx engine.
So, I would suggest putting the '97 on CL and finding a '03 through '08 4L60E/4L65E/4L70E. Probably not what you wanted to hear, but it will save your money, effort and frustration in the not-so-distant future.
Of course, there might be other opinions too....
https://ls1tech.com/forums/automatic...s-spacers.html
My real concern is taking a nearly 20 year old trans, likely with a zillion miles, which was designed for 300HP/TQ engine and hooking it up to a 450HP+ engine. If this trans was never rebuilt, there is a good chance it will fail after just a few WOT runs, which will not only ruin the trans and the converter, but also waste a lot of your time and/or money.
GM make improvements in '98 to handle the additional power of the LS1 engine and again in '03 to handle the additional power of LS2 engines. Besides the weak 3/4 clutch, the sun shell and forward sprag are common failure points when an old 4L60E is hooked up to a powerful LSx engine.
So, I would suggest putting the '97 on CL and finding a '03 through '08 4L60E/4L65E/4L70E. Probably not what you wanted to hear, but it will save your money, effort and frustration in the not-so-distant future.
Of course, there might be other opinions too....
Moderator
Joined: Aug 2010
Posts: 7,323
Likes: 529
From: Ann Arbor, MI
You will need the spacer that bolts on behind the flexplate and a compatible flexplate.
There are numerous threads on the electrical harness and/or tuning changes needed for a 4L80E; many others have done it successfully without too much trouble.
Personally I think this is a better choice than the old '97 4L60E.
Since you have a '70 Camaro, are you also on nastyz28.com? The "High Tech Retrofits" section has a wealth of LSx info for Gen 1 and 2 Camaros.
There are numerous threads on the electrical harness and/or tuning changes needed for a 4L80E; many others have done it successfully without too much trouble.
Personally I think this is a better choice than the old '97 4L60E.
Since you have a '70 Camaro, are you also on nastyz28.com? The "High Tech Retrofits" section has a wealth of LSx info for Gen 1 and 2 Camaros.
Thread Starter
Teching In
Joined: Feb 2016
Posts: 36
Likes: 0
Yes I am on nastyz28 but not at high tech retrofits .
I have notice on my engine where the trany attach there is a notch and bolt on top of the engine coming out ...normally when the trany and engine attach it should be flat surface.
I have notice on my engine where the trany attach there is a notch and bolt on top of the engine coming out ...normally when the trany and engine attach it should be flat surface.
Moderator
Joined: Aug 2010
Posts: 7,323
Likes: 529
From: Ann Arbor, MI
We might need to see a picture if you cannot figure it out.
Trending Topics
Thread Starter
Teching In
Joined: Feb 2016
Posts: 36
Likes: 0
mrvedit, sorry I just noticed that the bolt on top of the tranny, at 12 O'clock is actually just a piece of the previous tranny broken.. my error.
I just picked up a transmission/flexplate off a 2005 Silverado.
Just a question, when I had bought my motor, it didnt come with the torque converter but just a flex plate, the flex plate that came originally with the motor has 3 bolts for the torque converter, whereas the torque converter/flex plate that came with the 4L80E that I just bought has 6 bolts for the flex/torque converter.
Just wondering why would it be different? I guess the new tranny and the stuff will bolt right up, but why is it the the flexplate that came with the motor has different bolt?
I just picked up a transmission/flexplate off a 2005 Silverado.
Just a question, when I had bought my motor, it didnt come with the torque converter but just a flex plate, the flex plate that came originally with the motor has 3 bolts for the torque converter, whereas the torque converter/flex plate that came with the 4L80E that I just bought has 6 bolts for the flex/torque converter.
Just wondering why would it be different? I guess the new tranny and the stuff will bolt right up, but why is it the the flexplate that came with the motor has different bolt?
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Awesome K5 Blazer Restomod Comes With C7 Corvette Power
Verdad Gallardo
10 Camaros You Should Never Buy
10 LS Engine Myths That Refuse to Die
Verdad Gallardo Moderator
Joined: Aug 2010
Posts: 7,323
Likes: 529
From: Ann Arbor, MI
I figured the extra bolt was a "piece of the previous tranny broken" but didn't know how to say that politely.
The 4L60E and 4L80E have different bolt pattern diameters. While all 4L60E converters have 3 bolts, I believe some/most/all 4L80E converters have 6 bolts.
The 4L60E and 4L80E have different bolt pattern diameters. While all 4L60E converters have 3 bolts, I believe some/most/all 4L80E converters have 6 bolts.
Moderator
Joined: Aug 2010
Posts: 7,323
Likes: 529
From: Ann Arbor, MI

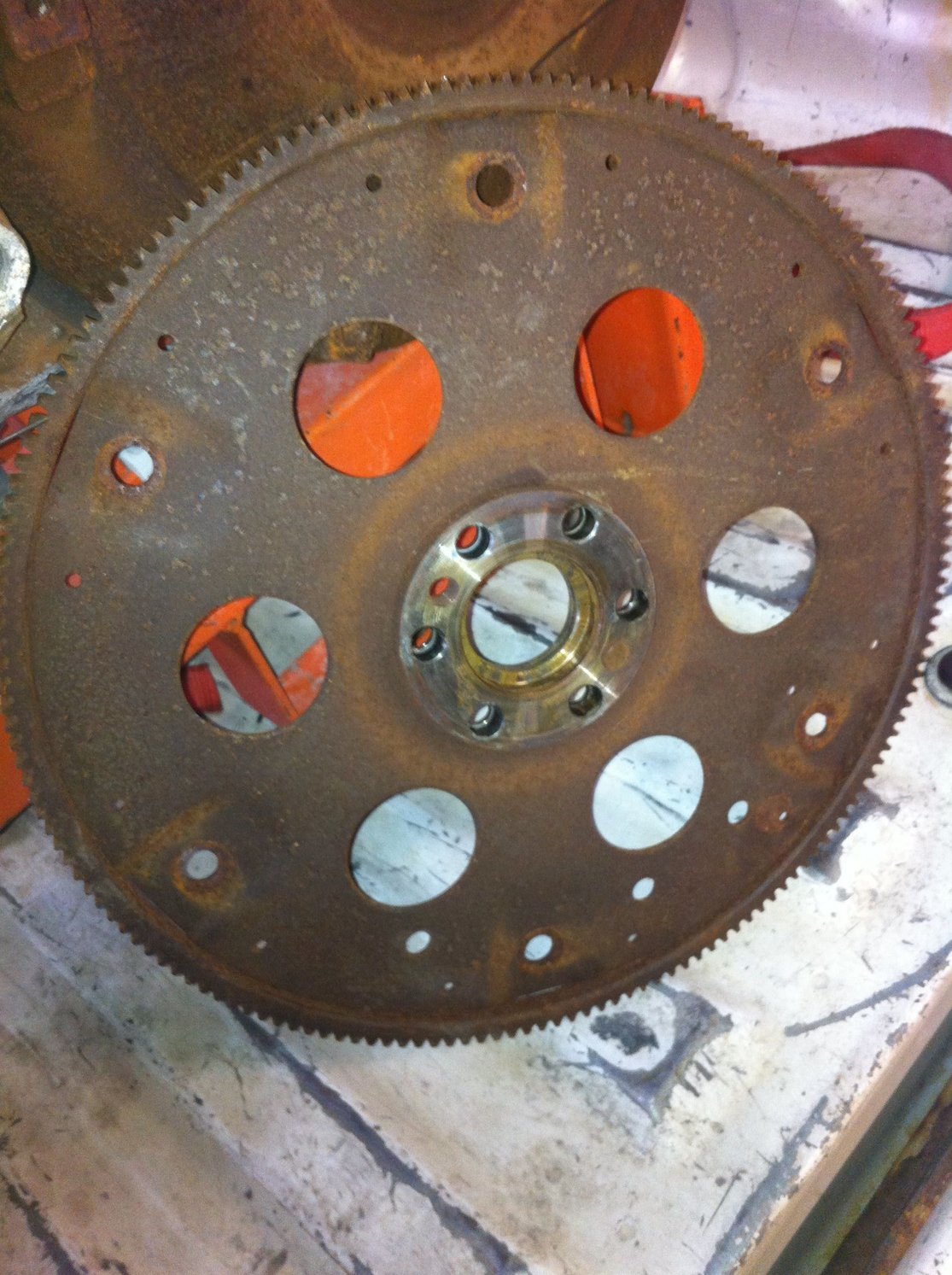

I didn't know such flexplate with built-in spacer existed, but it looks promising as long as the outer gear is dished toward the front of the engine so that the starter engages properly. However, I don't know much about the various flexplates.
