4L60 speed sensor wiring?
Thread Starter
12 Second Club
Joined: Dec 2017
Posts: 1,032
Likes: 220
From: San Antonio
4L60 speed sensor wiring? I have a 2000 Camaro that came with a 4L60. I need to find the wire that goes from the transmission speed sensor to the speedometer. It's basically the speed signal wire that I need to find. My transmission wire harness has 2 small connectors, and 1 big connector. I need to connect my new (6L80) transmission wire harness to the speed signal wire on my car to make the speedometer work. I figured it would be easier to get to the wire harness under the car, rather than take the dash apart.
Thread Starter
12 Second Club
Joined: Dec 2017
Posts: 1,032
Likes: 220
From: San Antonio
So, that’s pin 50 of the red PCM connector, right?
Is that the input signal or the output signal wire? I would need the input signal wire. The PCM should give my speedometer the correct speed once I give the PCM the transmission output speed. So basically, the transmission output goes to the PCM input.
Is that the input signal or the output signal wire? I would need the input signal wire. The PCM should give my speedometer the correct speed once I give the PCM the transmission output speed. So basically, the transmission output goes to the PCM input.
Thread Starter
12 Second Club
Joined: Dec 2017
Posts: 1,032
Likes: 220
From: San Antonio
What about pins 20 and 21? Those appear to be VSS signals high and low. Do those go into the PCM from the transmission? That’s basically the “side” of the PCM I need to tie into. I need to give the PCM a transmission speed signal. Once it has the transmission speed, it will send the correct signal to the speedometer through one of the other wires.
Thread Starter
12 Second Club
Joined: Dec 2017
Posts: 1,032
Likes: 220
From: San Antonio
I don’t have a rear speed sensor anymore. I have a 6L80 now. The transmission harness I bought provides the speed signal. I just needed to know which PCM wire to splice it too. I think pin 20 or 21 will work. I’ll try a temporary splice before I cut any wires and make it permanent.
Trending Topics
Thread Starter
12 Second Club
Joined: Dec 2017
Posts: 1,032
Likes: 220
From: San Antonio
Well, pin #21 didn't work. I guess I'll try the others until I find one that works. It shouldn't need a ground if it's just a signal, right? The TCM/harness is grounded, and all other signal wires are working without any "extra" grounds.
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Awesome K5 Blazer Restomod Comes With C7 Corvette Power
Verdad Gallardo
10 Camaros You Should Never Buy
10 LS Engine Myths That Refuse to Die
Verdad Gallardo
Moderator
Joined: Aug 2010
Posts: 7,323
Likes: 529
From: Ann Arbor, MI
This thread explains the problem and suggests some solutions:
https://67-72chevytrucks.com/vboard/...d.php?t=509662
In short the only signals from/to a 6L80E are on the digital CANBUS; kinda like the network wire to your computer. So you cannot just tap into it; you need another computer to decode it, like an ECU or BCM. According to that thread a typical ECU does not have a speedometer output signal, only a compatible BCM does.
What ECU are you using to connect to the 6L80E?
Perhaps someone has made a simple computer module to listen on the CANBUS and read the vehicle speed from it. More info on decoding the GM CANBUS is here: https://pcmhacking.net/forums/viewtopic.php?t=7113
https://67-72chevytrucks.com/vboard/...d.php?t=509662
In short the only signals from/to a 6L80E are on the digital CANBUS; kinda like the network wire to your computer. So you cannot just tap into it; you need another computer to decode it, like an ECU or BCM. According to that thread a typical ECU does not have a speedometer output signal, only a compatible BCM does.
What ECU are you using to connect to the 6L80E?
Perhaps someone has made a simple computer module to listen on the CANBUS and read the vehicle speed from it. More info on decoding the GM CANBUS is here: https://pcmhacking.net/forums/viewtopic.php?t=7113
Thread Starter
12 Second Club
Joined: Dec 2017
Posts: 1,032
Likes: 220
From: San Antonio
My car doesn't have CANBUS. I am using the TCM-2600 Harness from Zero Gravity. It is connected to the 6L80, and appears to be working as advertised. I just don't have any speed indication in the car. Zero Gravity suggested splicing their "speed output" wire to my PCM (red) pin #21. I tried that, and still don't have speed indication.
Thread Starter
12 Second Club
Joined: Dec 2017
Posts: 1,032
Likes: 220
From: San Antonio
I'm thinking (hoping) that maybe the TCM-2600 does all the signal converting internally, and sends it out ready to be used by the speedometer. Perhaps connecting the TCM-2600 to pin #50 would make the speedo work (as previously suggested). I'll try that next, and report back.
Moderator
Joined: Aug 2010
Posts: 7,323
Likes: 529
From: Ann Arbor, MI
Pin 50 on the PCM is an output signal. You should never connect two output signal together as one device could then burn out the other. However, it will be fine to connect your TCM-2600 output to whatever Pin 50 is connected to, presumably your speedometer, as long as the connection to pin 50 is cut.
Sorry for the confusion from my previous post - between moderating "Conversions and swap" and other areas, I've been looking at CANBUS solutions lately and overlooked that you had a 2000 PCM even though I had days earlier studied Mr. Bond's diagram.
Sorry for the confusion from my previous post - between moderating "Conversions and swap" and other areas, I've been looking at CANBUS solutions lately and overlooked that you had a 2000 PCM even though I had days earlier studied Mr. Bond's diagram.
TECH Junkie
Joined: May 2012
Posts: 3,049
Likes: 714
From: Poplarville, MS
Yes, you are correct. Your car does not have CANBUS but your 6L80 trans TCM does use CANBUS.

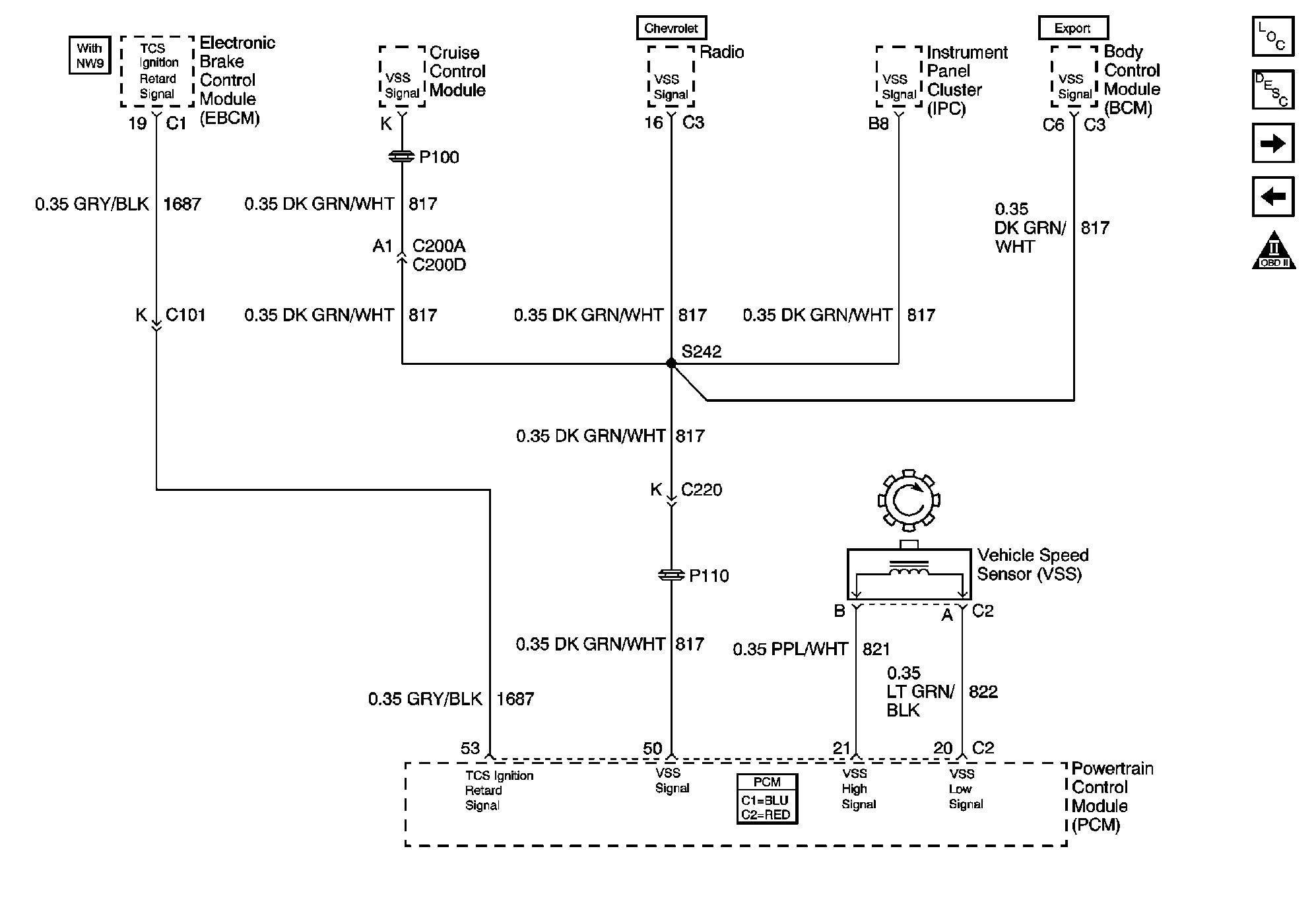

I looked up what the TCM-2600 is. It is a transmission control module and harness. You may be able to disconnect pin 50 at the engine PCM and connect the speed signal wire from the TCM-2600 module to pin 50, dark green/ white wire as dixiebandit69 said in post 2.
