45 degree flare to -6 AN adapter? Hi all,
I have never used any AN fittings before, but I've read up here and went to the auto parts store to at least look at them. My setup is going to be almost exactly like the 67rsss schematic and like Bczee's. I believe I have it all figured out as to what I need now, except for an adapter at the fuel tank.

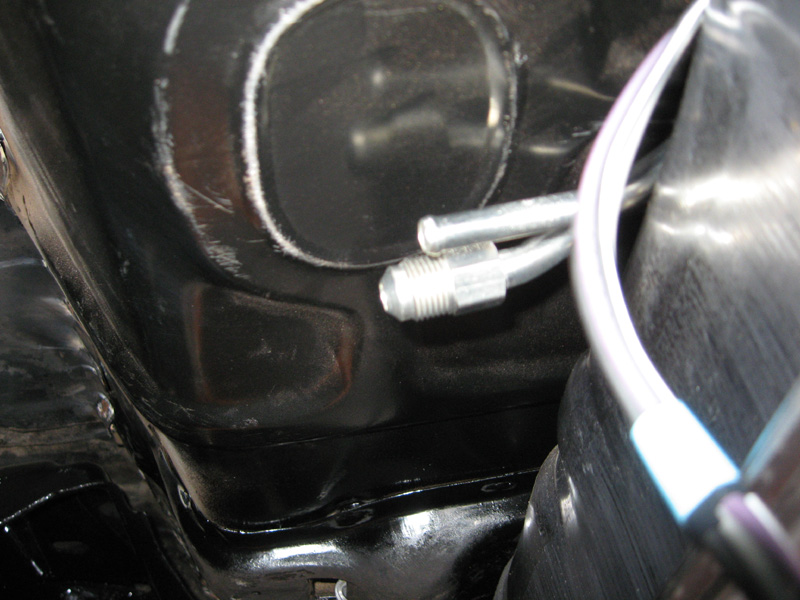

On my Spectra EFI tank from rockauto.com, I have a male 45 degree flare with 3/8-24 threads.
It comes with the female fitting to use hose and clamps with that I don't want to use....
I am hoping to find an adapter that goes from female 45 degree flare, 3/8-24 to male -6 AN. Does anyone know if such an adapter exists?
I have ordered all fittings, hose and tubing I need to plumb for fuel but haven't figured out how to adapt to tank without cutting 45 degree flare off. If there is no such adapter, how did others do it?
Thanks!
Rob
I have never used any AN fittings before, but I've read up here and went to the auto parts store to at least look at them. My setup is going to be almost exactly like the 67rsss schematic and like Bczee's. I believe I have it all figured out as to what I need now, except for an adapter at the fuel tank.
On my Spectra EFI tank from rockauto.com, I have a male 45 degree flare with 3/8-24 threads.
It comes with the female fitting to use hose and clamps with that I don't want to use....
I am hoping to find an adapter that goes from female 45 degree flare, 3/8-24 to male -6 AN. Does anyone know if such an adapter exists?
I have ordered all fittings, hose and tubing I need to plumb for fuel but haven't figured out how to adapt to tank without cutting 45 degree flare off. If there is no such adapter, how did others do it?
Thanks!
Rob
Have you checked Pegasus. If they don't have it, it probably doesn't exist.
http://www.pegasusautoracing.com/adv...ryID=PLUMADAPT
http://www.pegasusautoracing.com/adv...ryID=PLUMADAPT
Rob
If I was going to do it again.. I'd take the sender off.. and just get some 3/8" and 5/16" AN -6 Threaded ends and just braze them on... No compression fitting, no Quick Disconnect fittings at all.
That is what I did on my Fuel Rail... Would have done it on the sender if I had thought about it before I spent all of the cash for adapters and QD's.
If I was going to do it again.. I'd take the sender off.. and just get some 3/8" and 5/16" AN -6 Threaded ends and just braze them on... No compression fitting, no Quick Disconnect fittings at all.
That is what I did on my Fuel Rail... Would have done it on the sender if I had thought about it before I spent all of the cash for adapters and QD's.
TECH Resident
Joined: May 2004
Posts: 792
Likes: 2
From: SoCal

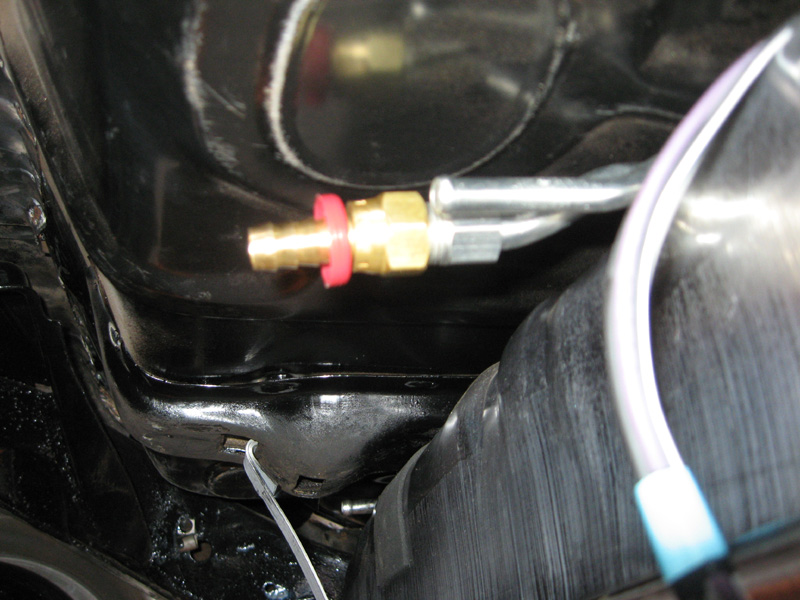

Rob, that's actually a high pressure push-on hose fitting in your photo. The push-on high pressure rated hose and fittings are rated to 250psi. Having said that, if this is for an under car application I'd be inclined to simply go with hard lines; In you case standard brake line uses the 45 degree fittings.
