Aftermarket Digital Gauges
Thread Starter
Registered User
Joined: Mar 2017
Posts: 6
Likes: 0
Aftermarket Digital Gauges I bought a set of "Create a Dash" digital gauges by Intellitronix for my 04 Silverado. DID NOT DO MY HOMEWORK.
The following is an attempt to figure out exactly what each of the following sending units/sensors output - so as to properly adapt them to the new gauges. The connections for all are at the PCM and are connected to what I believe to be the primary for each. I got the pin outs from a post here.
1. Speedometer - Correct me if I'm wrong but it seems that the output from the VSS comes in two flavors - 4K pulses per mile or 129k pulses per mile. The new gauge operates in a range from 8k to 16k. Current solution is to buy a GPS speed unit that outputs 16k. Did I miss something?
2. Tach - I'm told that the new unit is looking for 5V Square something or other... What does the Engine speed sensor actually output? The new gauge is doing absolutely nothing.
3. Temp - This one came with a replacement sensor. (One wire type). I know that the factory sensor serves the gauge and the fan. Hoping to t-tap the gauge side and keep the all too important fan switch intact... same issue, what is the actual output at the sensor?
4. Oil - Issue is identical to temp. I have a new sending unit but I'm betting that the factory sensor serves more than one purpose and that the signal from the sensor may not be compatible...???
5. Fuel - The new fuel gauge has multiple setting that are based on resistance ranges. All of which were industry standards - at least until 1995. What is the output from the fuel gauge at the PCM??
The following is an attempt to figure out exactly what each of the following sending units/sensors output - so as to properly adapt them to the new gauges. The connections for all are at the PCM and are connected to what I believe to be the primary for each. I got the pin outs from a post here.
1. Speedometer - Correct me if I'm wrong but it seems that the output from the VSS comes in two flavors - 4K pulses per mile or 129k pulses per mile. The new gauge operates in a range from 8k to 16k. Current solution is to buy a GPS speed unit that outputs 16k. Did I miss something?
2. Tach - I'm told that the new unit is looking for 5V Square something or other... What does the Engine speed sensor actually output? The new gauge is doing absolutely nothing.
3. Temp - This one came with a replacement sensor. (One wire type). I know that the factory sensor serves the gauge and the fan. Hoping to t-tap the gauge side and keep the all too important fan switch intact... same issue, what is the actual output at the sensor?
4. Oil - Issue is identical to temp. I have a new sending unit but I'm betting that the factory sensor serves more than one purpose and that the signal from the sensor may not be compatible...???
5. Fuel - The new fuel gauge has multiple setting that are based on resistance ranges. All of which were industry standards - at least until 1995. What is the output from the fuel gauge at the PCM??
What engine and ECU/PCM are you running?
Coolant temp has 2 available ports. Drivers side port is near the front of the head and the passenger is near the rear. You can use the available one for the gauge and keep the other for the ECU
The tach puts out pulses not a 5v curve. I believe its pulsed like a 4cyl 2 pulses per cycle. I can look that up for sure if i know what your donor engine is from
The oil pressure sensor can be taped into the oil filter housing. Oil is drawn from the pan, to the pump then through the filter so you will see oil pressure at the filter housing
fuel gauge - what is the donor vehicle? i can give you the range data for it.
If you need any other diagram info just let me know your donor engine's vehicle and also what the engine is in
Coolant temp has 2 available ports. Drivers side port is near the front of the head and the passenger is near the rear. You can use the available one for the gauge and keep the other for the ECU
The tach puts out pulses not a 5v curve. I believe its pulsed like a 4cyl 2 pulses per cycle. I can look that up for sure if i know what your donor engine is from
The oil pressure sensor can be taped into the oil filter housing. Oil is drawn from the pan, to the pump then through the filter so you will see oil pressure at the filter housing
fuel gauge - what is the donor vehicle? i can give you the range data for it.
If you need any other diagram info just let me know your donor engine's vehicle and also what the engine is in
FWIW I looked into their gauges as well for the Sorento when i swapped in the Ly6. I ended up with gauges from SpeedHut. Their fuel gauge made it wicked easy because it has the same ranges as Intelletronix but also a manual program/learn. Set it when its empty and set it when its full and it automatically figures out your range.
Thread Starter
Registered User
Joined: Mar 2017
Posts: 6
Likes: 0
Thanks for the quick responses.
No swap here. It's my 2004 Silverado with the 4.8. I only changed the gauges. Some of you may be familiar with the stepper motor fiasco. Ive been without speed, tach and temp for several years.
So, on the temp issue - there are two in use and therefore I can replace one or will I find an unused port?
No swap here. It's my 2004 Silverado with the 4.8. I only changed the gauges. Some of you may be familiar with the stepper motor fiasco. Ive been without speed, tach and temp for several years.
So, on the temp issue - there are two in use and therefore I can replace one or will I find an unused port?
TECH Apprentice
Joined: Oct 2013
Posts: 319
Likes: 4
From: Longview, TX
Thanks for the quick responses.
No swap here. It's my 2004 Silverado with the 4.8. I only changed the gauges. Some of you may be familiar with the stepper motor fiasco. Ive been without speed, tach and temp for several years.
So, on the temp issue - there are two in use and therefore I can replace one or will I find an unused port?
No swap here. It's my 2004 Silverado with the 4.8. I only changed the gauges. Some of you may be familiar with the stepper motor fiasco. Ive been without speed, tach and temp for several years.
So, on the temp issue - there are two in use and therefore I can replace one or will I find an unused port?
At rear of the passenger head is a round plug with an internal hex for an allen wrench to fit into. It is on the same face as the exhaust manifold, just past the last exhaust port. This is a M12 threaded hole. Get an adapter if needed to screw in your sender for the gauges. The adapter would be something like this:
Or this one:
For the Oil Pressure, find this part: This one has been drilled a tapped for a sensor.
http://i529.photobucket.com/albums/d...1/71ff1a76.jpg

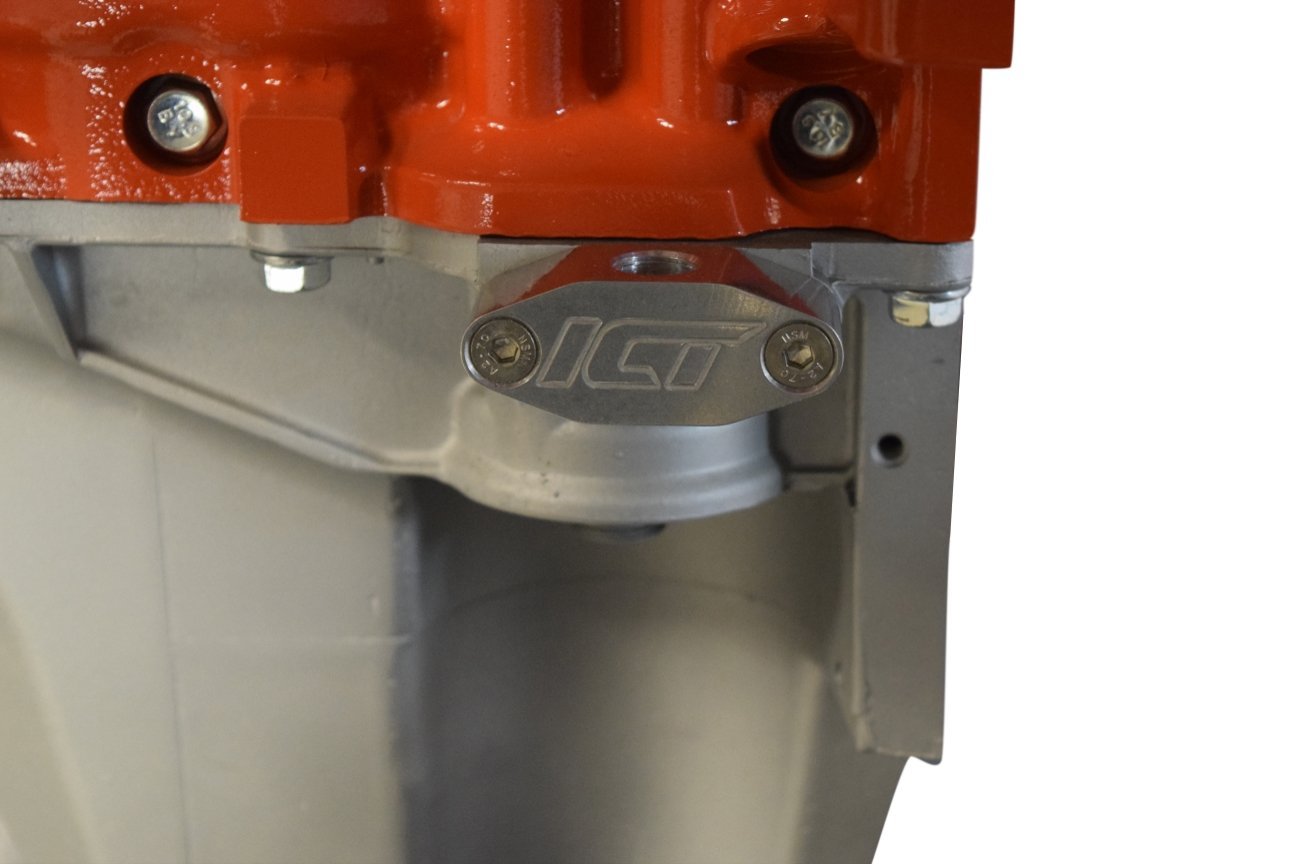

IF you cannot drill and tap yours, here is a replacement part for adding a sender:
https://images-na.ssl-images-amazon....L._SL1296_.jpg
Thread Starter
Registered User
Joined: Mar 2017
Posts: 6
Likes: 0
Okay, temp and oil solved! Thank you aggie91 ! Speed will be GPS. Still need info on the fuel level sensor and after some research into an adaptor kit for LS1, it seems that the tach may need a 10K pull up resistor??
By the way, you guys are awesome. I've gotten more info today than I have in two weeks on my own.
By the way, you guys are awesome. I've gotten more info today than I have in two weeks on my own.
Trending Topics
Thanks for the quick responses.
No swap here. It's my 2004 Silverado with the 4.8. I only changed the gauges. Some of you may be familiar with the stepper motor fiasco. Ive been without speed, tach and temp for several years.
So, on the temp issue - there are two in use and therefore I can replace one or will I find an unused port?
No swap here. It's my 2004 Silverado with the 4.8. I only changed the gauges. Some of you may be familiar with the stepper motor fiasco. Ive been without speed, tach and temp for several years.
So, on the temp issue - there are two in use and therefore I can replace one or will I find an unused port?
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Awesome K5 Blazer Restomod Comes With C7 Corvette Power
Verdad Gallardo
10 Camaros You Should Never Buy
10 LS Engine Myths That Refuse to Die
Verdad Gallardo
Thread Starter
Registered User
Joined: Mar 2017
Posts: 6
Likes: 0
UPDATE : 10K resistor is the fix for the tach. The engine speed sensor and its input to the computer is open collector and requires a 10K resister between +12v and the gauge input wire - to pull up the signal. Thanks to all who contributed to the conversation.
*********STILL NOT SURE WHAT TO DO ON THE FUEL GAUGE**************
THE FIRST TO SOLVE THIS ONE FOR ME GETS DINNER FOR TWO
(AT MCDONALDS) :-)
*********STILL NOT SURE WHAT TO DO ON THE FUEL GAUGE**************
THE FIRST TO SOLVE THIS ONE FOR ME GETS DINNER FOR TWO
(AT MCDONALDS) :-)
Staging Lane
Joined: Apr 2015
Posts: 94
Likes: 0
From: Knoxville, TN
Can someone clarify where to put the 10k resistor? I have a Summit Racing "SUM-g2981" and it reads 0000's all the time all the way across. Does the 10k resistor go inline with the signal wire from the ECM (Green 10) or does it go inline with the ignition 12v being supplied to the gauge. OR, do I run a second 12v wire spliced into the signal wire with the resistor in between?
Also, given that the ECM puts out 4cyl signal I cut the orange wire. Correct?
Gauge info below:
https://static.summitracing.com/glob...sum-g2981w.pdf
Engine, harness, and ECM are from an 03 Envoy. (5.3l LM4)
I tried talking to Summit Tech support and they are about worthless. Their advice was to try the tach on another car or I have a bad ECM....
Also, given that the ECM puts out 4cyl signal I cut the orange wire. Correct?
Gauge info below:
https://static.summitracing.com/glob...sum-g2981w.pdf
Engine, harness, and ECM are from an 03 Envoy. (5.3l LM4)
I tried talking to Summit Tech support and they are about worthless. Their advice was to try the tach on another car or I have a bad ECM....
