There really isn't any reason to use AC request over the data bus on the P01/P59 computers IMO. Might I ask why you think it would be useful when request by wire is so simple?

On the E38 or E67 the only option is over the data bus so I why you would need it on one of those computers.



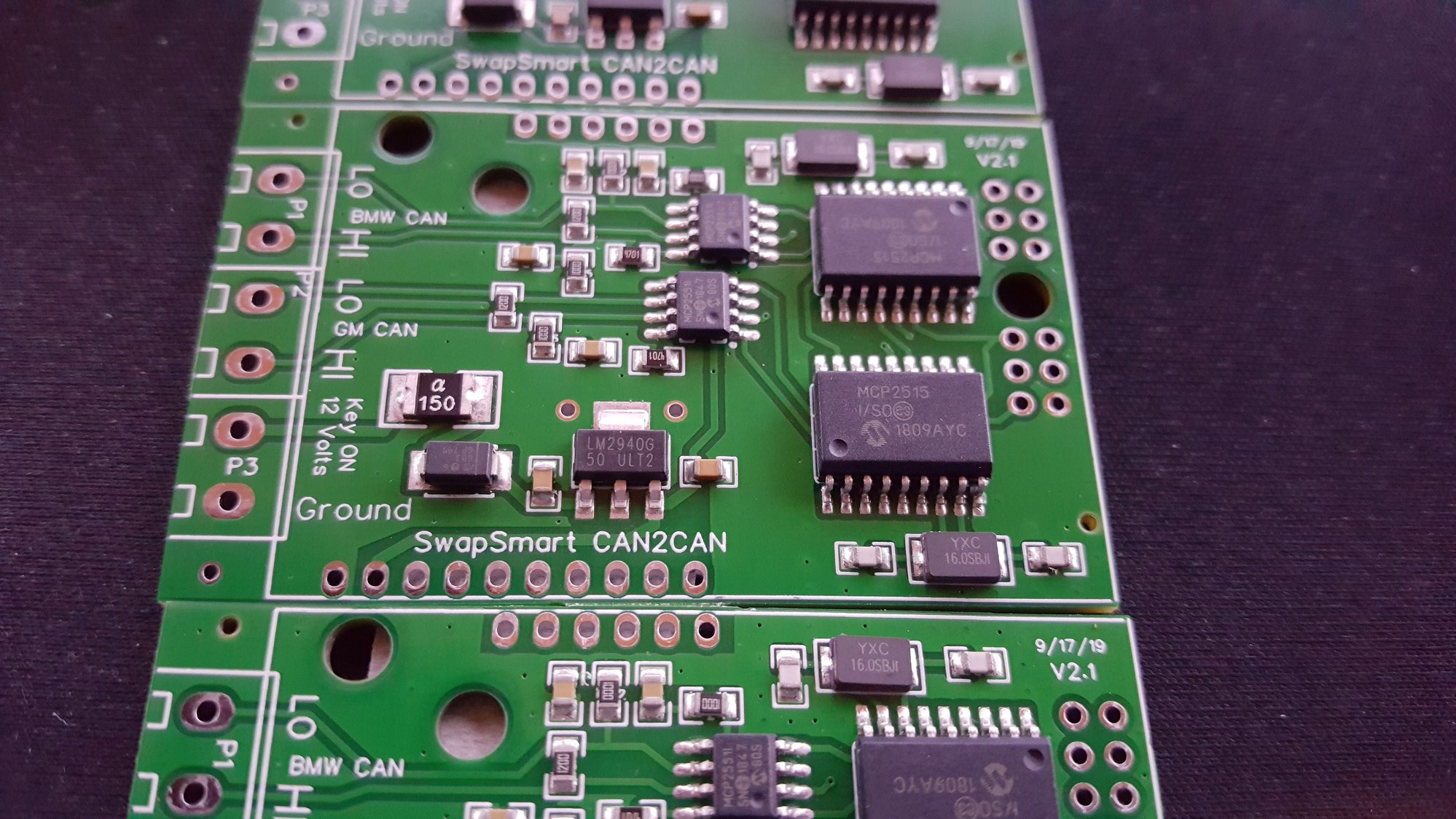

I have been making conversion modules for the P01/P59 and E38/E67 into the BMW E46 chassis for several years now



I've been an auto mechanic by trade for about 25 years now and specialized in automotive electrical for the last 10-15 of those years. However none of that is really relevant to data bus conversion, even the most sophisticated scan tools never go past working with data pids, I've never seen a scan tool that would let you view the raw data in any form present on the data bus and to be honest viewing that information would be heavily frowned on in this industry. Training classes would lead techs to believe that watching the data bus with a scope attempting to track down module faults is somehow useful.....the moment you suggest plugging into the bus and just watching bus traffic for corrupted packets and you'd see every head in the room explode.

I am a self taught C++ programmer who just happens to also have a very good understanding of how electrical circuits and devices operate.



Nice...I don't even remember how to write a simple for/next loop lol



It's my understanding these PCM's use that serial request from the HVAC Module in the dash to tell the PCM to turn the compressor on instead of a 12 Volt signal wire as found in the Blue/Red harness. I've seen multiple ways to wire it like an Express Van, etc but I'd like to keep it stock with the serial data telling the compressor to come on and then let the pressure sensor, not switch, inform the PCM so as to have the PCM turn the fans on.



Give me a vehicle to look at, the only vehicle that comes to mind off the top of my head that uses request over serial is the trailblazer but those were P59 computers.



My particular application is a 2005 GMC Sierra into a 1969 Chevy truck. From what I've read I think this is common for 03-07 then GM switched to CAN and I think the CAN communicates with the A/C is similar.



Ok getting a bit of mixed data here. You said initially Red/Blue Pcm meaning its a 99-02 computer(P01) but now your talking about the Blue/Green computers(P59). There is a diffidence between these in terms of how AC request can be done and what over laps.

For both types of PCM's there are 3 possible configures for the AC as setup with a tuning software, its possible some programs don't give access to the AC setup but assuming they do they work as follows.

Type 1 is done as a request over the data bus and system pressure is monitored with a pressure transducer. May also use a low pressure cut out switch to disable AC.
Type 2 is done as a hard wired request and uses a pressure transducer to monitor line pressure. May also use a low pressure cut out switch to disable AC.
Type 3 is done as a hard wired request but uses a pressure cycling switch on the lower pressure side with a pressure cut out switch to disable the system on the high pressure line.

All P01 computers can be setup to work with all 3 methods above.
All P59's that are capable of controlling an IAC for drive by cable throttle can also be setup to work with all 3 system types listed above.
P59's that are not capable of drive by wire throttle will work with AC Type 1 or Type 3 only.

AC System Type 1 & 2 will control a multi speed fan based on system pressure read by the transducer, vehicle cooling fan control based on engine temperature will work for low speed fan and high speed fan with the ability to control AC inhibit based on min and max temperature values.

Type 3 allows fan control for high and low speed fan control based on engine temperature and also allows for either high or low speed fan engagement based on Ac request outside of temperature based fan control. You can also configure the High and low speed fans to run based on vehicle speed over X mph and when vehicle speed falls below X mph.

I think I've only ever had one other person who asked about AC request over serial data but it was with an E40 from a Trail Blazer where the PCM has both CAN and J-1850 data buses in use with no option for a hard wired AC request.

Designing something that reads a switch and then sends a message over the data bus is possible but unless your developing something like that for personal use just to say that you did it seems rather pointless when there are much simpler ways to do the same thing with just a switch.



Thanks for the info. Mine is a Drive By Wire and has the pressure transducer and low pressure cut out



Thanks for the response.



Well I glad you're here on LS1tech. Great job.

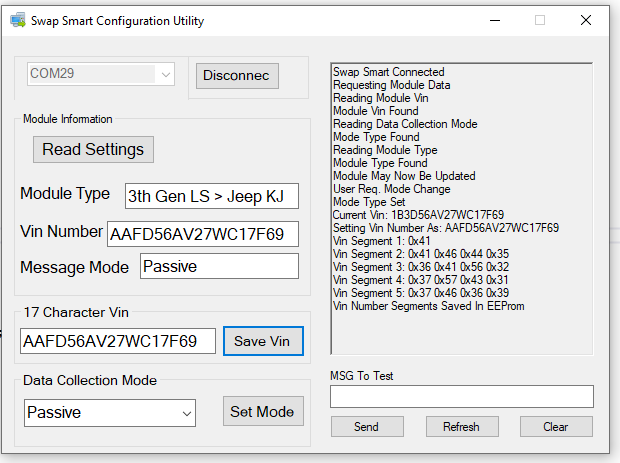

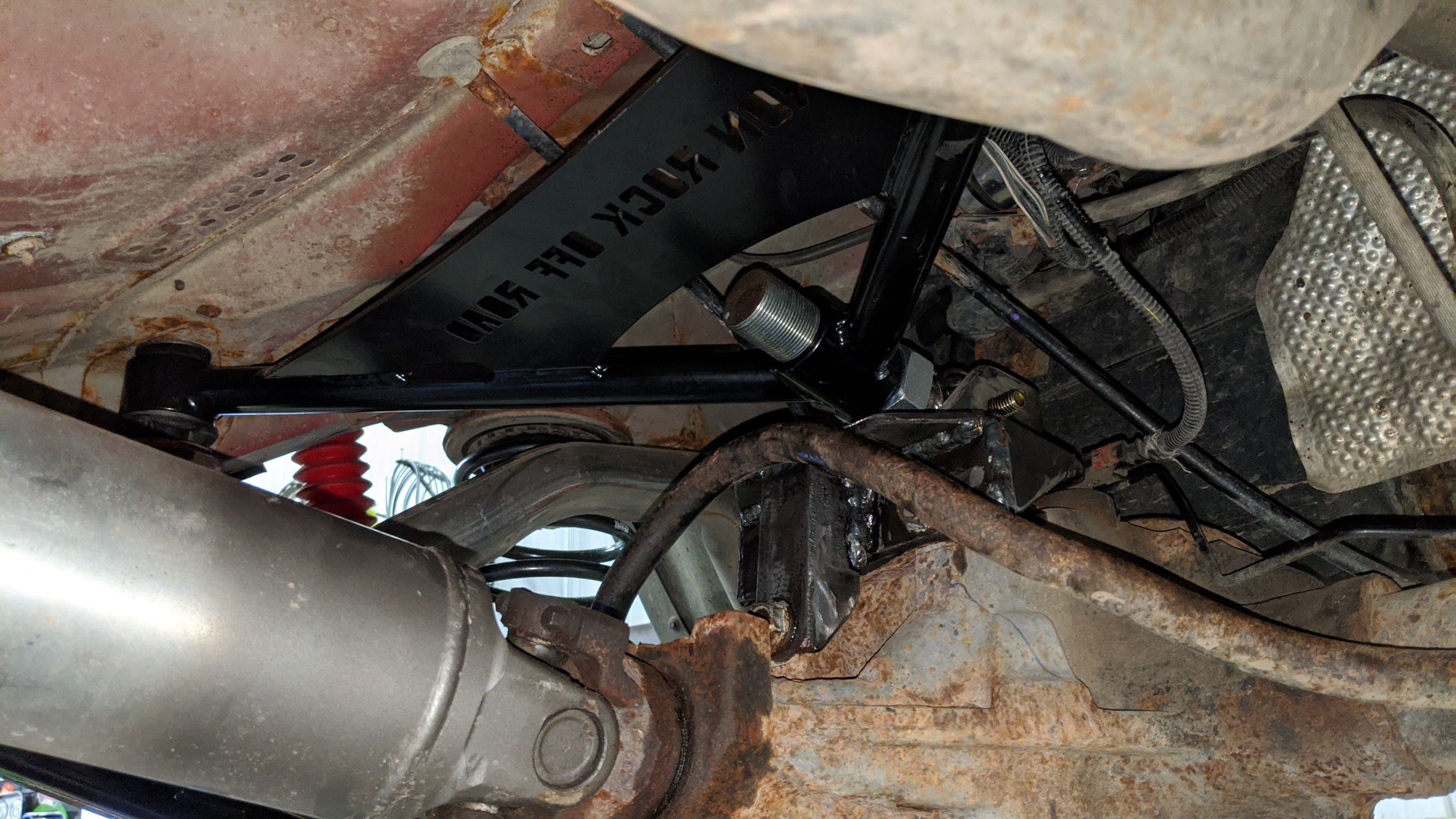

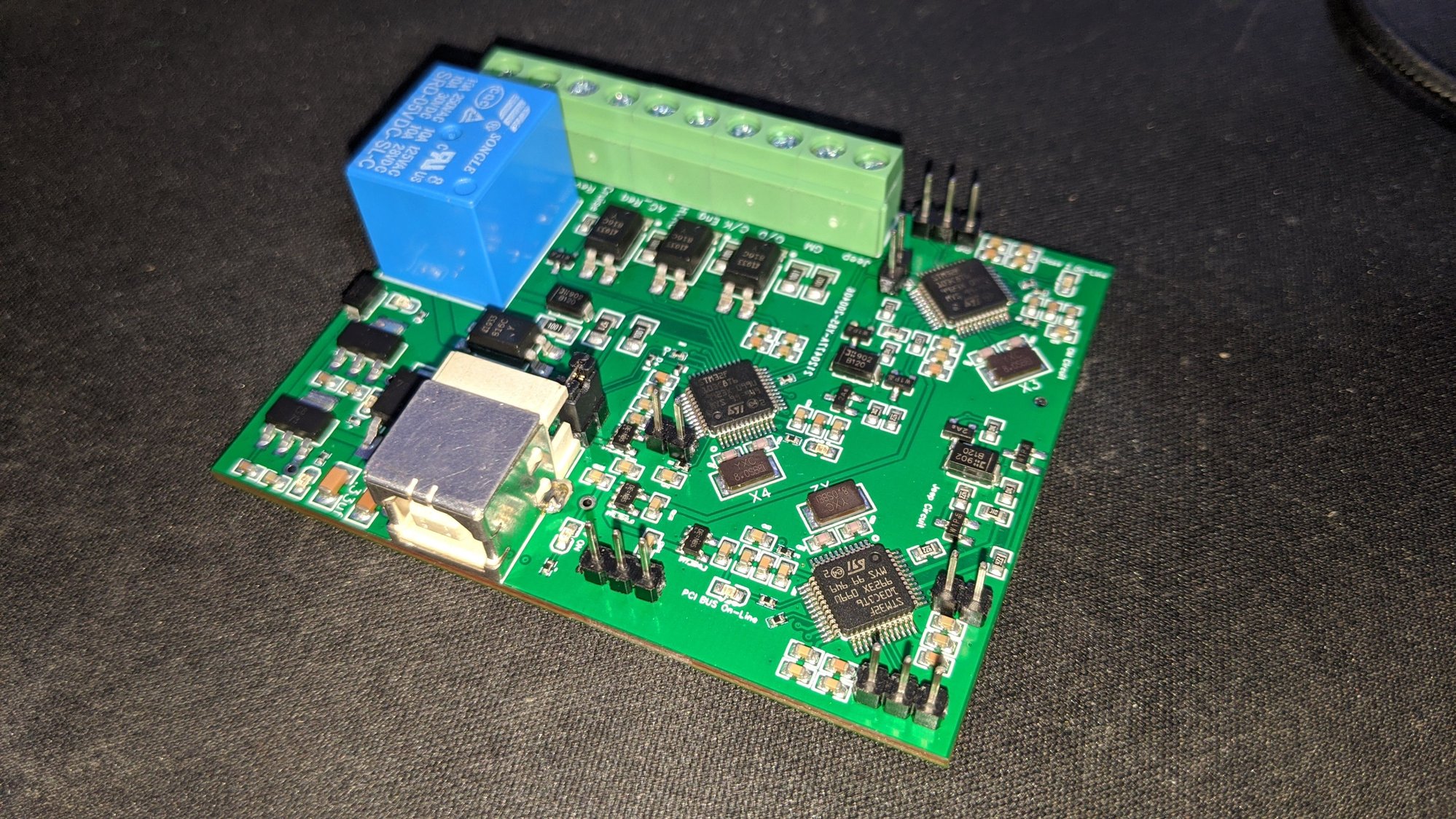

For anyone wondering.....this is far from a dead subject. I've been working on this pretty diligently while I've been off work due to the COVID-19 quarantine in my state. I'm just about happy with the hardware at this point and have worked out the issues with an end user being able to "update" the vin number in the module and set the way the module collects and passes data from the engine computer to the Jeeps data bus. About the only real thing I'm still working on gettting sorted out is software that will allow for firmware updates on the modules main program.
