LS2 Harness HELP
Here's a few PIN's and wires that I could use some help with
- C1 PIN 49- vehicle speed signal Do I need this? Or Remove?
- C1 PIN 21- VSS to BCM Is this to speedo?? Or remove?
- Wires from big black body harness connector (I think c206?) to trans computer module. 3 wires: yellow, dark blue, light blue. What do I do with these???
- C3 pin35 -5 volt reference on body harness connector Remove?
- C3 PIN 33 - Low reference on body harness connector Remove?
- Light green and pink wire coming from OEM fuse box panel to big white transmission connector What are these, and do I need them to be hooked up to my new fusebox?
Thanks a bunch, cant wait to get this bad boy on the road.
I should be able to merge some of the hots (pink wires) into each other to go into the fuse box.
Is there anything I should be considering when doing so, ie: can I run all the injectors into 1 switched hot and into a single spot, or is that overload?
You vehicle speed sensor will need to feed either your gauges or the PCM for correct shifting to occur. From your words above, I can't tell which end of the wire you are referring to.
I'm guessing that yes, you could tie all injectors to one switched ignition hot location as long as it was not a low amperage feed. I'm thinking all eight injectors could easily consume 15 amps or more but I'd refer to a wiring diagram here first to be certain.
Have you been to the "LT1Swap.com" web site? Brandan's diagrams there should be able to answer all of your other questions.
Rick
You vehicle speed sensor will need to feed either your gauges or the PCM for correct shifting to occur. From your words above, I can't tell which end of the wire you are referring to.
Yes, the VSS wires themselves route from the sensor to the TCM.
The pins I am talking about are both from the C1 pcm connector into black body harness connector. One has to be to the speed, but what's the other?!?
I'm guessing that yes, you could tie all injectors to one switched ignition hot location as long as it was not a low amperage feed. I'm thinking all eight injectors could easily consume 15 amps or more but I'd refer to a wiring diagram here first to be certain.
I'll keep looking into thethe d and possibly of this.
Have you been to the "LT1Swap.com" web site? Brandan's diagrams there should be able to answer all of your other questions.
YES! His site is amazing, but he doesn't have anything specific to the E40 pcm.
Here's a link to a spreadsheet that should be helpful, if you haven't already come across it.
Here's a link to a spreadsheet that should be helpful, if you haven't already come across it.
That is the pinout I used to hack out the rest of what I don't need, but the pins I'm asking about don't seem right via that sheet.
C1- pins 21 & 49 are both labled as vehicle speed signal and to remove them. The sheet says 1 goes to BCM, and the other to brake control module. I feel these may be needed, but am not sure what the brake control is, maybe they are to be removed?
C3- pins 33 & 35 are listed on that sheet as empty, but I've triple checked and I definitely have those pins in use on my stock LS2 harness !?!?!?!??
The other questions aren't covered in a pinout since they're trans related.
Any help is appreciated.

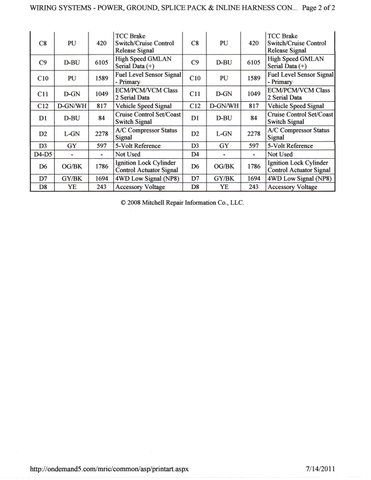

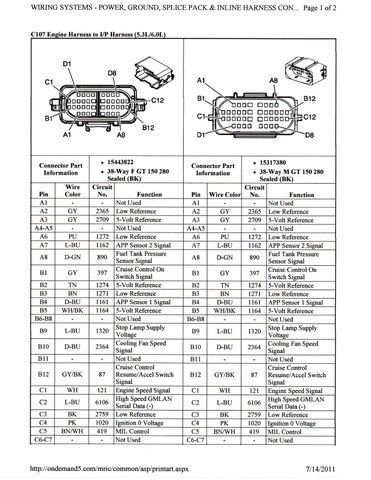

- 3 wires: yellow, dark blue, light blue that come from the trans harness into the I/P body harness connector. lignt blue= (-) serial data and dark blue is (+) serial data. These will go to the obdII. The yellow is an accessory voltage, which I believe is needed to be hooked to the fuse box. I have attached the pinouts for this connector.
Last edited by Fst_Byrd; Jan 24, 2019 at 08:10 PM.
Trending Topics
The Best V8 Stories One Small Block at Time
I believe 2007+ tbss got the e67 pcm...e38 was used in LS2 vettes, but don't quote me on that.
do you have your engine, harness and PCM yet?
Last edited by Fst_Byrd; Jan 24, 2019 at 08:15 PM.
It's hard to wipe the smile off your face when driving my buddies 76' C10 with a bone stock LQ9 in it. So your truck will be a blast!
If you have any questions, shoot them over and I'll see what I can do to help out.
Not yet. But will update if when I do.
https://ls1tech.com/forums/showpost....&postcount=188
Looks like it might have what you need.
https://ls1tech.com/forums/showpost....&postcount=188
Looks like it might have what you need.
- C1 PIN 49- vehicle speed signal goes to abs, remove
- C1 PIN 21- VSS to BCM goes to speed, keep
- C3 pin35 -5 volt reference on body harness connector fan wiring, remove
- C3 PIN 33 - Low reference on body harness same as above. Fan, remove
I'm not using the BCM, but pulled the wires/ pins needed from it and will run them directly to what they need to go to- speedo, tach, cruise, ignition.

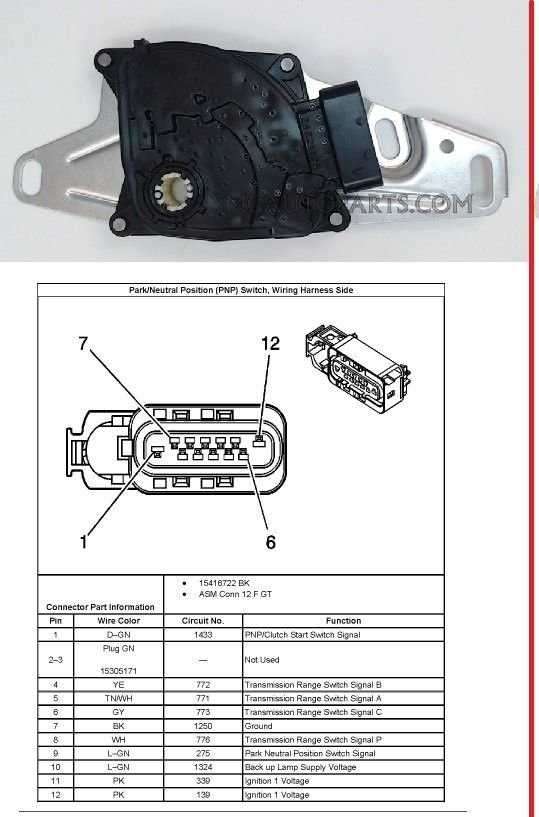

I found this in case you're still looking into wiring for the range switch, this guy seems to be the guy who knows all of this😊 :
Originally Posted by ls1nova71
Pin 12 hooks to the ignition switch (start), pin 1 goes to the starter relay 86, 85 will go to ground. 30 will be constant power and 87 will go to the starter.
Pin 11 is ignition power into the switch, and 10 is to the back up lights.
