TCC brake switch

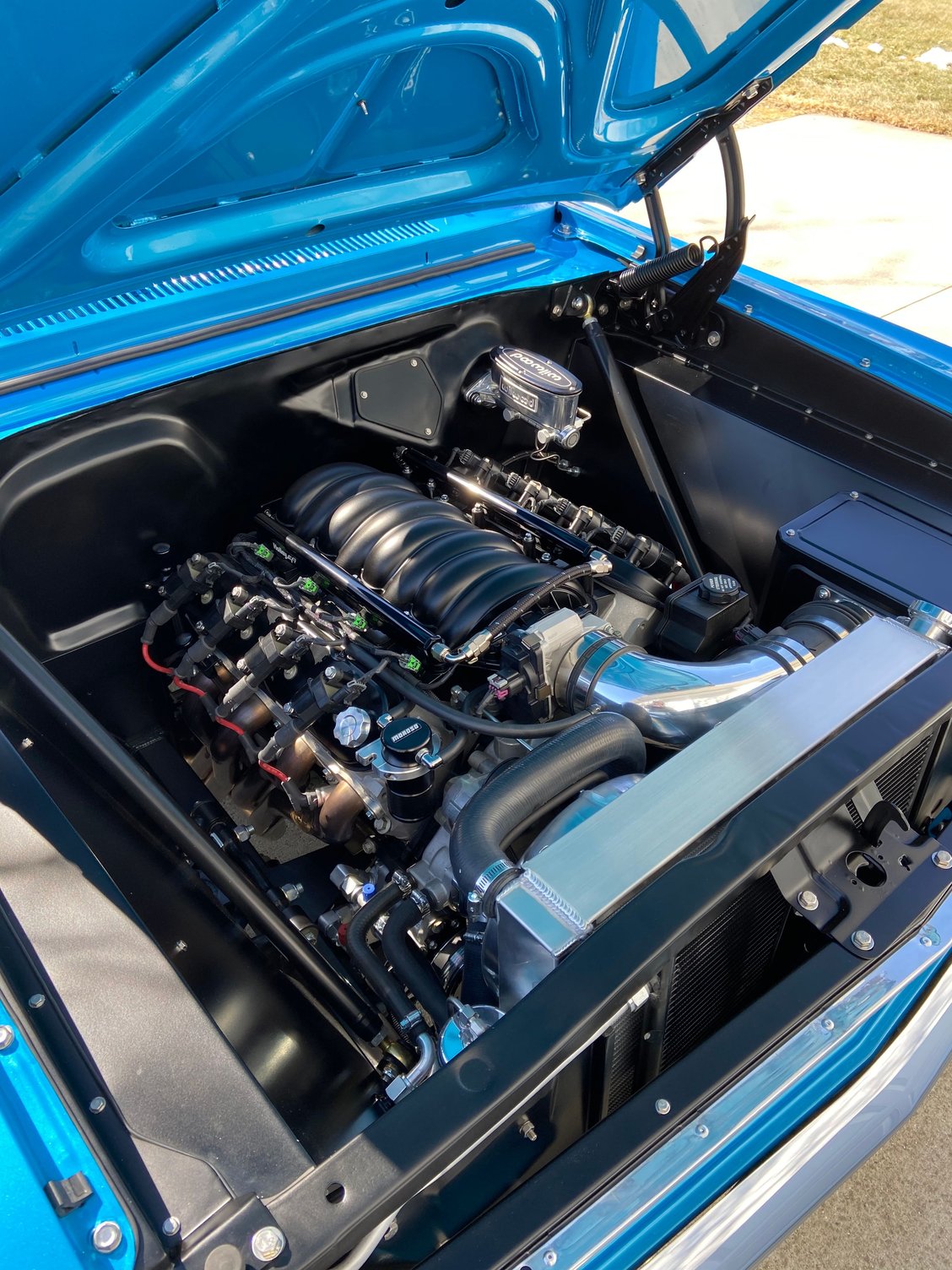

Stats, 08 GMC 5.3 4l65e 4x4. Transmission has been converted to 2wd by way of output shaft change. OS system is a e38 ECM t42 TCM. Wiring harness was modified by me using lt1.com. This is in my 65 Nova restomod.
I’m having an issue with the TCC circuit 9 on the ECM. With KO ignition I’m getting 9.5 volts. With the engine running its around 10.5 to 11. I’ve hooked it directly to the brake switch white wire NO trying to use the brake light filaments as resistors to ground it. I’ve tried a 1k 1/4 watt resistor to ground it. In both situations with the brakes applied the voltage will drop to -3.5 volts. I’ve read multiple posts on this but no one has ever concluded a solution. Has anyone here been able to fix this?
I guess what I’m asking is this circuit needs to see ground until the brakes are applied. Should I be looking for zero volts? When it’s grounded or does it just need a ground seems like the volts feeding from the circuit isn’t a good thing.
It appears that I have this incorrect below for Gen IV. I will leave it, as it's correct for Gen III, if someone is researching.
Usually, its the opposite. A factory ECM wants to see 12v on the TCC line (NC switch) and then when you press the brakes, the switch opens and the line drops to zero. (Note that an aftermarket ECU like the Holley's have opposite logic of this).
Most 80s GM cars with a 700R4 should have the correct brake switch. It will have 2 sets of contacts. 1 set is for your normal brake lights wiring. The other set is NC, you will feed a switched battery (hot in start and run) to one terminal, and then the other is the TCC line to the trans. In my 1972 GMC, I used a brake switch from a mid 80s Monte Carlo (I think I had to spec with cruise control or something).
For those wondering why, the OEMs wire it this way for safety. The torque converter can only lock up when it sees 12 volts. So if there is a blown fuse, or a broken wire, the 12V goes away and lock up is prevented. In a Holley system, it *unlocks* when it sees 12 volts (and yeah, also based on gear and other factors). So if the wire isn't connected, it won't unlock when they hit the brakes.
Last edited by Haggar; Apr 7, 2021 at 10:53 AM.
To the OP, you should get a ground through the brake lights unless you are using LED brake lights. Are you having an issue? Or just checking for the sake of checking it?
To the OP, you should get a ground through the brake lights unless you are using LED brake lights. Are you having an issue? Or just checking for the sake of checking it?
Trending Topics
Yes I’m experiencing problems with my transmission. It will not shift normally as though it’s not communicating with the ECM. It acts like some have described as being in limp mode. It will drive but it’s 3rd gear only it will down shift manually to 2nd. It will not run up through the gears or down on its own. I have been through the wiring several times to check continuity, grounding and power, it has it all! I’m trying to eliminate possible causes one at a time. I had read somewhere that a non functional TCC switch could cause this. So I started there but I’m not understanding the whole grounding thing, so that’s the reason for the voltage tests. My electrical schematics call for the 6311 circuit to tie together from the ECM ,TCM it then splits and one goes to the BCM were there is a 750ohm resistor inside, the other to the brake switch. Now at the point of KO with it plugged into the brake switch with non led bulbs my volt meter registers 9.5 volts. When I press the pedal it registers minus 3.4ish. Is this normal? Now I’ve thought that maybe it could be serial wake up data circuits. Some say it’s needed some say not?
Last edited by ScottR65; Apr 8, 2021 at 06:05 PM.
The Best V8 Stories One Small Block at Time
Last edited by ScottR65; Apr 9, 2021 at 07:09 PM.
Last edited by ScottR65; Apr 9, 2021 at 07:10 PM.
Any help would be much appreciated!
Please I’m desperate! I know there’s some super intelligent people on here that could help me sort this out and in the process help others.
Have you double checked that you actually have 12v ignition power to the transmission and the TCM?
Now I’ve been at this build for some time. So long that my first wiring schematic came from Brenden at lt1.com for the identical setup year make and model by chance it worked out that way. It’s been so long that the paperwork I have for this gen IV TCC switch wire he described as working like a gen iii 12volt all time until the brake pedal is depressed.
Since then he has changed his description on the web site as to how it works. Grounded till pedal is depressed than 12volt.
Ive read that if the TCC switch is not working properly it will cause a limp mode situation? True? False? Dunno?
It seems there is a lot of confusion as to how this works. Someone here has to know?
Now in my quest for an answer to this I came across some discussion on that the gen IV TCC switch wire looks for a ground. Which most people use the tail light bulbs or a 1k resistor to help pull it to 0 volts?
I’ve tried this, neither approach works for me.
It starts at 9.5 volts and when the pedal is pressed it’s -3.4 volts it never pulls it to 0 volts however it’s configured? Someone here has had to deal with this. All of the threads and countless post I’ve read on the net on this never comes to a conclusion and I’m hoping someone here can help end this for me and others by solving this for whatever why mystery!
I feel as though I can’t move beyond the TCC signal until it works properly and move on to the next possibility if it doesn’t solve the problem.
Anyone?
