Electric fan wiring
Thread Starter
Teching In
Joined: Jan 2014
Posts: 5
Likes: 0
From: pnw
Electric fan wiring I've researched but can't find anything.
2001 ss camaro ecm and ls1in a 56 chev. EBay dual electric fans. Ecm flashed for dual fans so I have fan 1 and fan 2 wires. I connected one each to the fans, then grounded the fans to frame. I'm getting a po480 code and no fans. I've read that the ecm grounds the fans to turn them on but I don't understand how...I only have fan 1 and fans wires. Should I not have grounded the fans?
Thanks for any help...this is my first ls swap!
2001 ss camaro ecm and ls1in a 56 chev. EBay dual electric fans. Ecm flashed for dual fans so I have fan 1 and fan 2 wires. I connected one each to the fans, then grounded the fans to frame. I'm getting a po480 code and no fans. I've read that the ecm grounds the fans to turn them on but I don't understand how...I only have fan 1 and fans wires. Should I not have grounded the fans?
Thanks for any help...this is my first ls swap!
TECH Fanatic
Joined: Dec 2017
Posts: 1,467
Likes: 265
From: Bossier City, Louisiana
You need relays to control those fans. Let's hope you have not fried those fan circuits by running way, way too many amps through that area of the printed circuit board. The PCM grounds the control relay, not the fans themselves.
Rick
Rick
Here's one if you want to roll your own...this makes them work like GM intended.
https://ls1tech.com/forums/conversio...r-diagram.html
Post #4.
https://ls1tech.com/forums/conversio...r-diagram.html
Post #4.
Thread Starter
Teching In
Joined: Jan 2014
Posts: 5
Likes: 0
From: pnw
Thanks guys and sorry for not getting back...I couldn't log in! I have the relays and my harness was wired for 2 fans. I believe the wires were green and blue. That's the 2 wires I connected to fans, ran the grounds together to frame.
The green and blue wires should go to the relays, not the fans themselves, is that what you mean? Hooking those wires directly to the fan will burn up the drivers in the PCM,
Trending Topics
Thread Starter
Teching In
Joined: Jan 2014
Posts: 5
Likes: 0
From: pnw
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Awesome K5 Blazer Restomod Comes With C7 Corvette Power
Verdad Gallardo
10 Camaros You Should Never Buy
10 LS Engine Myths That Refuse to Die
Verdad Gallardo
TECH Regular
Joined: Nov 2018
Posts: 467
Likes: 116

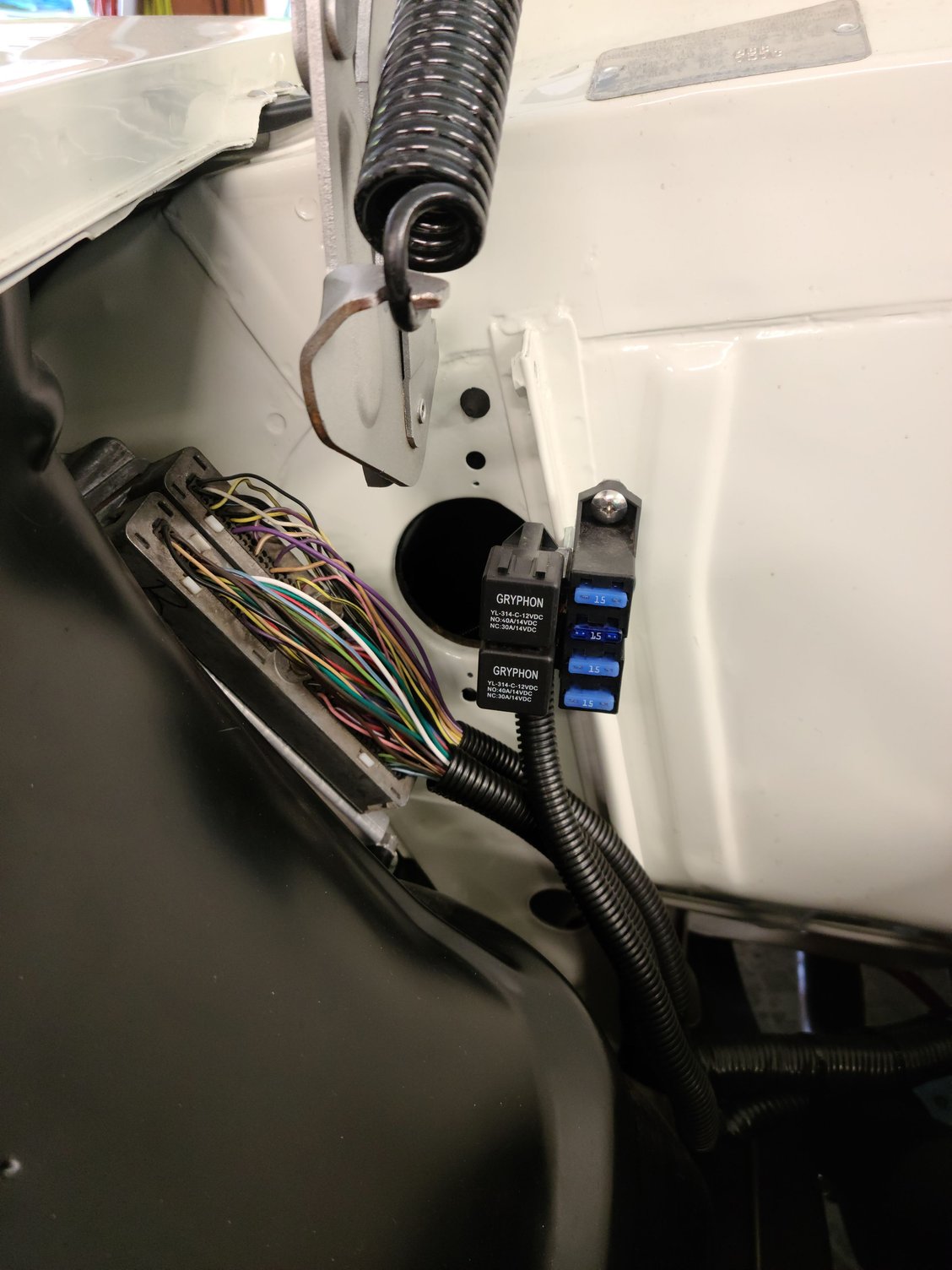

However, that picture there looks suspiciously like a standard 2 relay/4fuse setup that nearly every LS swap uses for the engine, coils, fuel pump. And fans pulls more than 15amps...so that picture, at least to me, looks like the engine relays and not the fan. The fans also use 10ga wire for the supply and grounds and if the green and blue wires you have there are like 18ga like what's in a factory harness...then you do not have built in fan wiring and wired it straight to the ECM.
