New drive-shaft dynamometer. Need your help.
Thread Starter
Staging Lane
Joined: Mar 2005
Posts: 78
Likes: 2
From: So Cal.
New drive-shaft dynamometer. Need your help. I'm not sure this is the right place for this. But, here goes...

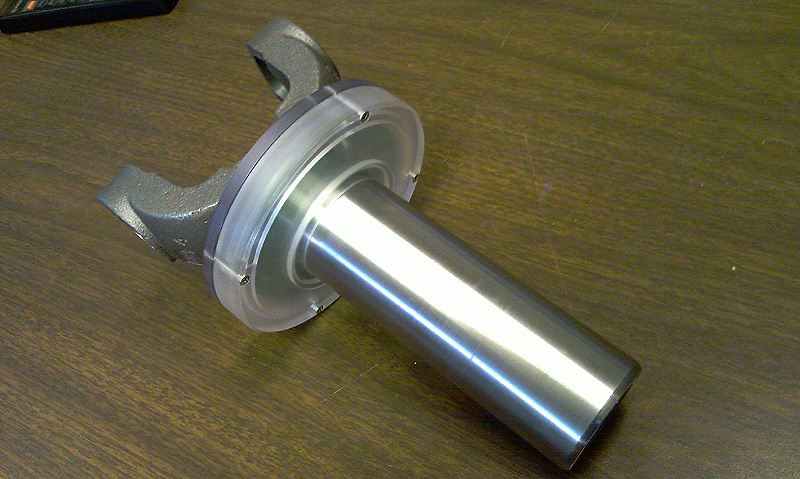

I have just developed a new drive-shaft torque sensor/dynamometer.

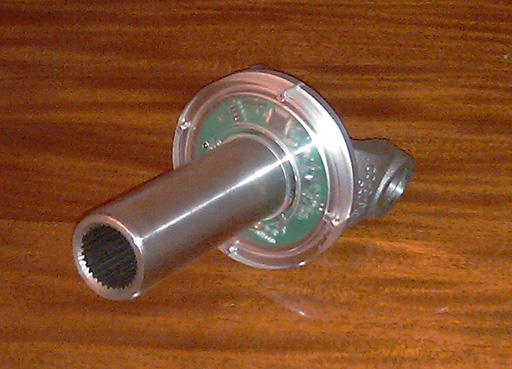

It works with the Innovate Motorsports LogWorks software. And the LC-1 and the rest of their MTS devices. It is a real strain-gage based torsional force sensor. No accelerometers, timers, GPS, etc.

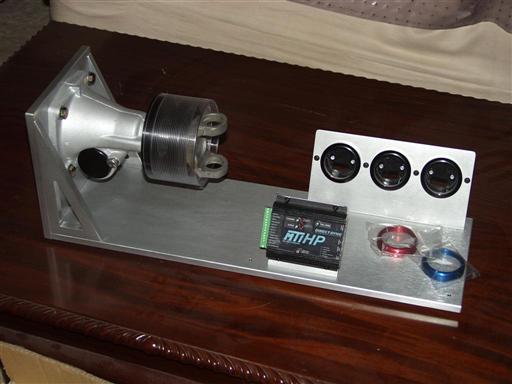

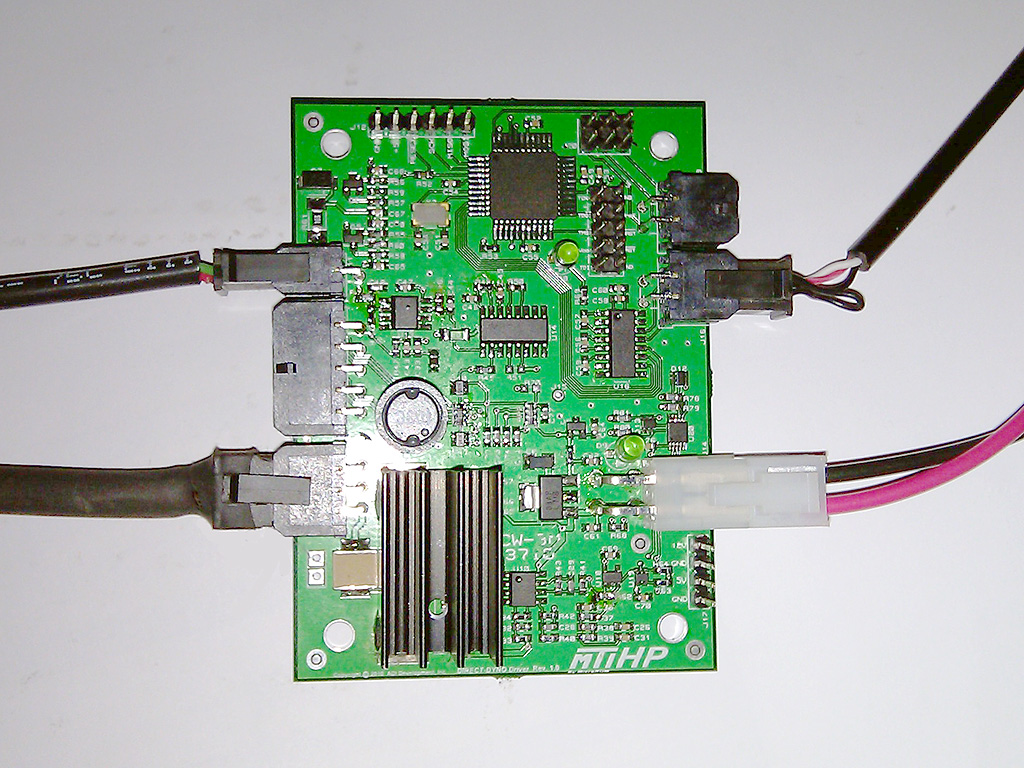

It's just the box and the coil on the tail-shaft. The rest is just a display stand
It is similar to the Land-and-Sea "On-board Dynamometer" see: http://www.land-and-sea.com/rotary-s...shaft-dyno.htm

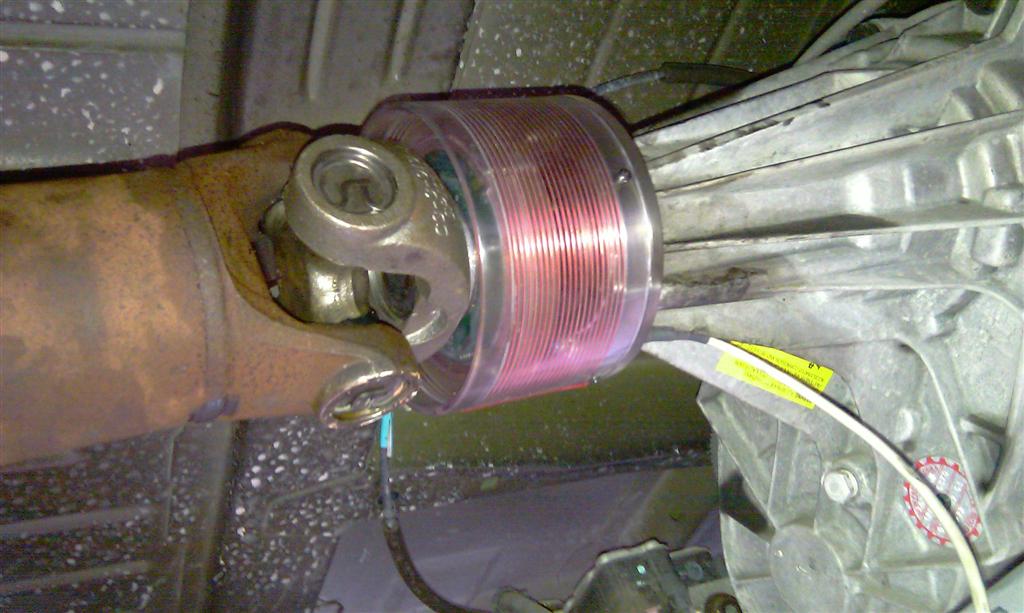

Here it is, installed in my 2002 2500HD 4x4

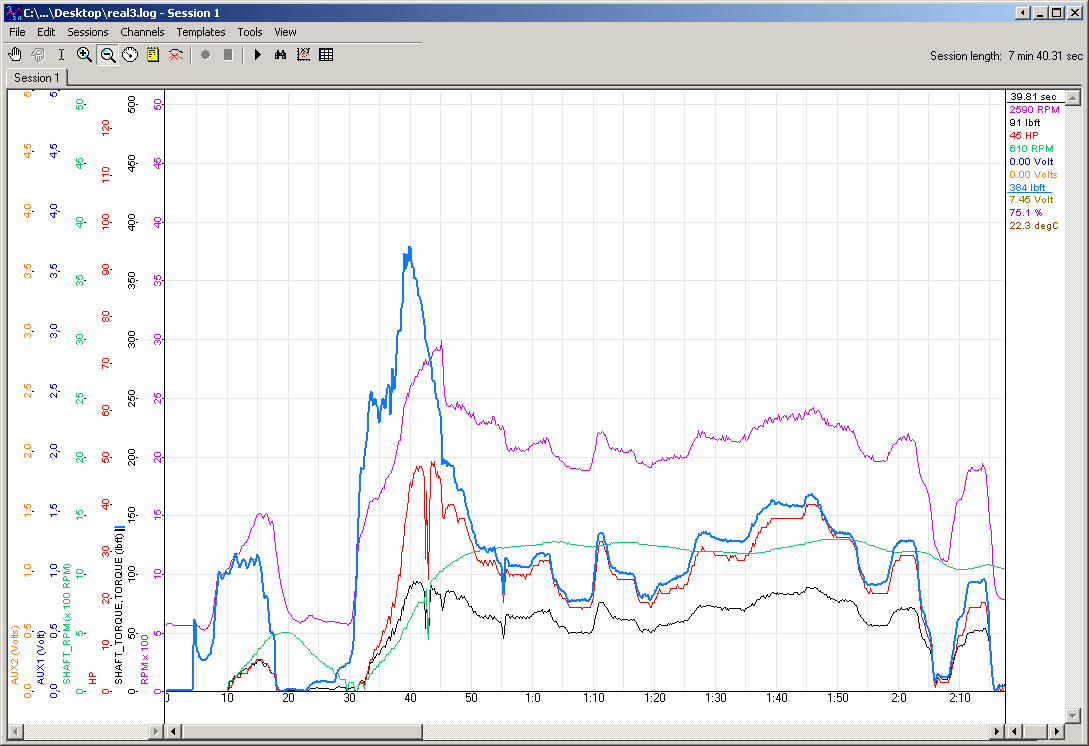

So far, testing has gone better than expected. Even with the big 32-spline 1410 yoke on my HD, I can easily resolve less than +/- 1lb-ft of torque ( out of a full scale of +/- 4500 lb-ft ) and +/- 1hp. Although, the weather has put a temporary hold on further testing.
What I am looking for is the info that I need to make installation kits for the various GM RWD applications. Specifically, the slip-yoke dimensions and the tail-shaft housing dimensions that I need to mount the field coil.
I am trying to get this out to the public for less than $1500.00 ( vs. the $5000-$7000 that Land and Sea wants ).
Any help, dimensions-wise, is appreciated
Thanks, all
I have just developed a new drive-shaft torque sensor/dynamometer.
It works with the Innovate Motorsports LogWorks software. And the LC-1 and the rest of their MTS devices. It is a real strain-gage based torsional force sensor. No accelerometers, timers, GPS, etc.
It's just the box and the coil on the tail-shaft. The rest is just a display stand
It is similar to the Land-and-Sea "On-board Dynamometer" see: http://www.land-and-sea.com/rotary-s...shaft-dyno.htm
Here it is, installed in my 2002 2500HD 4x4
So far, testing has gone better than expected. Even with the big 32-spline 1410 yoke on my HD, I can easily resolve less than +/- 1lb-ft of torque ( out of a full scale of +/- 4500 lb-ft ) and +/- 1hp. Although, the weather has put a temporary hold on further testing.
What I am looking for is the info that I need to make installation kits for the various GM RWD applications. Specifically, the slip-yoke dimensions and the tail-shaft housing dimensions that I need to mount the field coil.
I am trying to get this out to the public for less than $1500.00 ( vs. the $5000-$7000 that Land and Sea wants ).
Any help, dimensions-wise, is appreciated
Thanks, all
Thread Starter
Staging Lane
Joined: Mar 2005
Posts: 78
Likes: 2
From: So Cal.
Ok. I am FINALLY allowed to talk again
AEM ( who took over the Dyno project from me ) has released their version of the driveshaft dyno kit!
http://www.stangtv.com/news/aems-dyn...bers-on-the-go
It came out pretty damned cool, if I must say so, myself
AEM ( who took over the Dyno project from me ) has released their version of the driveshaft dyno kit!
http://www.stangtv.com/news/aems-dyn...bers-on-the-go
It came out pretty damned cool, if I must say so, myself
Just looked into it...
Called aem
No price set yet, not available yet...
To be introduced at SEMA....
I can't wait...
I was ready to buy it when I read the article this morning...
Called aem
No price set yet, not available yet...
To be introduced at SEMA....
I can't wait...
I was ready to buy it when I read the article this morning...
Trending Topics
Thread Starter
Staging Lane
Joined: Mar 2005
Posts: 78
Likes: 2
From: So Cal.
I just finished helping them set up the SEMA display for it. It's pretty neat. It has a mock-up transmission tail section with a torque-arm handle on it that you can grab and see how much torque you can pull. This HAS to be a disaster in the making. But, should be fun, in the meantime
I know the pricing is supposed to be about $1100 for the standard kit ( stock yoke ) and around $1500 for the kit with the upgraded Chrome-Moly steel yoke.
More as it comes in...
I know the pricing is supposed to be about $1100 for the standard kit ( stock yoke ) and around $1500 for the kit with the upgraded Chrome-Moly steel yoke.
More as it comes in...
