Cheapest Multi-stage boost solutions?
Thread Starter
Restricted User
Joined: Mar 2014
Posts: 7,192
Likes: 109
From: Ohio
Cheapest Multi-stage boost solutions? What have you guys come up with for cheap ELECTRIC multistage boost without an aftermarket ECU or PWM control? I can do dual stage with no problems. Its 3-4 stage that I'm having issues with.
My best solution right now for 3-stage boost control on a super budget is a pair of knockoff turbosmart dual stage controllers. This gives you 3 boost settings.
The lowest one can be as low as wastegate, but is still adjustable.
The 2nd port on the 1st controller will feed the 2nd boost controller, where you will have 2 more options available for boost control. This comes out to ~$120 total. I could drop the price by finding an electric solenoid that let me toggle between two outputs that didn't have any actual boost control elements. Anything below $60 for an electric solenoid that can switch between outputs will save me in the long run.
Ideas? And yes, there is a very big point to all of this.
My best solution right now for 3-stage boost control on a super budget is a pair of knockoff turbosmart dual stage controllers. This gives you 3 boost settings.
The lowest one can be as low as wastegate, but is still adjustable.
The 2nd port on the 1st controller will feed the 2nd boost controller, where you will have 2 more options available for boost control. This comes out to ~$120 total. I could drop the price by finding an electric solenoid that let me toggle between two outputs that didn't have any actual boost control elements. Anything below $60 for an electric solenoid that can switch between outputs will save me in the long run.
Ideas? And yes, there is a very big point to all of this.
Thread Starter
Restricted User
Joined: Mar 2014
Posts: 7,192
Likes: 109
From: Ohio
Would this work as a cheap/simple way to switch between 2 ports with just a 12v signal?
http://www.ebay.com/itm/1-4-Inch-Pne...IAAOSw-7RVHMDG
http://www.ebay.com/itm/1-4-Inch-Pne...IAAOSw-7RVHMDG
TECH Fanatic
Joined: Oct 2015
Posts: 1,280
Likes: 28
From: Pittsboro, IN
Would this work as a cheap/simple way to switch between 2 ports with just a 12v signal?
http://www.ebay.com/itm/1-4-Inch-Pne...IAAOSw-7RVHMDG
http://www.ebay.com/itm/1-4-Inch-Pne...IAAOSw-7RVHMDG
Thread Starter
Restricted User
Joined: Mar 2014
Posts: 7,192
Likes: 109
From: Ohio
I've already figured out the way to control solenoids based on gear, but not how to control actual boost with these outputs.
No modifications to shifter, runs off of the stock ECU.
Thread Starter
Restricted User
Joined: Mar 2014
Posts: 7,192
Likes: 109
From: Ohio
Even cheaper, 0 to 115 PSI operating range.
Will this one work, or am I looking at the wrong type of valve?
http://www.ebay.com/itm/Electric-Air...0AAOSwjVVV00p6
Will this one work, or am I looking at the wrong type of valve?
http://www.ebay.com/itm/Electric-Air...0AAOSwjVVV00p6
Trending Topics
Thread Starter
Restricted User
Joined: Mar 2014
Posts: 7,192
Likes: 109
From: Ohio
I've considered the 3 port MAC valve, but the one I picked up won't work. Applying 12v doesn't switch between one output and the other, it simple opens or closes. I need a cheap electronic valve with 2 outputs that is switchable.
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Awesome K5 Blazer Restomod Comes With C7 Corvette Power
Verdad Gallardo
10 Camaros You Should Never Buy
10 LS Engine Myths That Refuse to Die
Verdad Gallardo
I'd think a 4-5 relay control board would work... Just have metered orifices on 4-5 vacuum solenoids to gradually bleed more boost signal for each solenoid triggered?
Something like this?
http://www.ebay.com/itm/SRD-12VDC-SL...wAAOSwEeFVFZhg
Last edited by Forcefed86; Oct 11, 2016 at 01:19 PM.
Thread Starter
Restricted User
Joined: Mar 2014
Posts: 7,192
Likes: 109
From: Ohio
How are you controlling the solenoids based on gear? Micro switches?
I'd think a 4-5 relay control board would work... Just have metered orifices to gradually bleed more boost signal for each solenoid triggered?
Something like this?
http://www.ebay.com/itm/SRD-12VDC-SL...wAAOSwEeFVFZhg
I'd think a 4-5 relay control board would work... Just have metered orifices to gradually bleed more boost signal for each solenoid triggered?
Something like this?
http://www.ebay.com/itm/SRD-12VDC-SL...wAAOSwEeFVFZhg
Thread Starter
Restricted User
Joined: Mar 2014
Posts: 7,192
Likes: 109
From: Ohio
I'll be using a 12v electrical signal for everything.
I already have the knockoff turbosmart dual stage controller. I bought it last year to test out. Yesterday I got it working with 1st gear boost control on the stock ECU instead of a toggle switch. I sat down and drew up an elaborate diagram and realized for less than $100 total, I can control boost in all 4 forward gears on the stock ECU.
I already have the knockoff turbosmart dual stage controller. I bought it last year to test out. Yesterday I got it working with 1st gear boost control on the stock ECU instead of a toggle switch. I sat down and drew up an elaborate diagram and realized for less than $100 total, I can control boost in all 4 forward gears on the stock ECU.
If you already have a 12v signal for each gear, wouldn't it be easier to ditch the turbo smart controller all together?
Buy 4 $5 vacuum solenoids, each with a slightly larger bleed orifice inline with the WG bottom port. Or the opposite to the top port...
Buy 4 $5 vacuum solenoids, each with a slightly larger bleed orifice inline with the WG bottom port. Or the opposite to the top port...
Thread Starter
Restricted User
Joined: Mar 2014
Posts: 7,192
Likes: 109
From: Ohio
Have a link to what you're talking about?
I already have the turbosmart, so I have 2 boost settings. With a simple electric solenoid, I gain another. Based on the way the 12v signals end up being, 1st and 4th gear will both get the same boost signal (nobody boosts overdrive on purpose anyway lol).
As soon as I find a reasonably cheap way to control all 3 boost settings, I'll do a write-up howto.
I already have the turbosmart, so I have 2 boost settings. With a simple electric solenoid, I gain another. Based on the way the 12v signals end up being, 1st and 4th gear will both get the same boost signal (nobody boosts overdrive on purpose anyway lol).
As soon as I find a reasonably cheap way to control all 3 boost settings, I'll do a write-up howto.
No link was just thinking about it…
Still not 100% sure on your signals and how they are acting/where they are coming from. So I don’t know if this will work. If you can tap off the gear change solenoids or ECU signal somehow… I’d assume when you activate say the 3rd gear “switch”, the 2nd gear switch is de-activated? Something like this would be super easy. Could also set it up to control signals to the top and bottom ports to get a wider boost range. But keeping it simple here…
Assuming we are using the lower WG port only for boost control.
1st gear - No signal to any solenoid would give you your lowest (WG spring pressure) boost level.

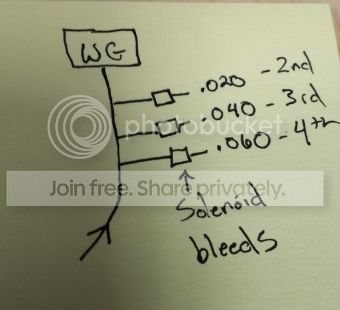

2nd – Where ever you get your 12v signal from powers the second solenoid. It bleeds say .020
