Basic Fuel flow question on hose diameters
Thread Starter
Joined: May 2011
Posts: 8,485
Likes: 1,028
From: Wichita, KS
Basic Fuel flow question on hose diameters Will an equal length -12AN flow more/less/similar to 2 -6AN lines?
I find one site that states flow is directly proportional to the ID of the lines. Suggesting that 2 -6AN would flow similar to 1-12AN.
Yet I find another that says Area = Pi * Radius^2 which would indicate that the -12 has a greater area and flows more than than 2 -6's?
I find one site that states flow is directly proportional to the ID of the lines. Suggesting that 2 -6AN would flow similar to 1-12AN.
Yet I find another that says Area = Pi * Radius^2 which would indicate that the -12 has a greater area and flows more than than 2 -6's?
TECH Senior Member
Joined: Jun 2016
Posts: 22,293
Likes: 3,617
From: Central Cal.

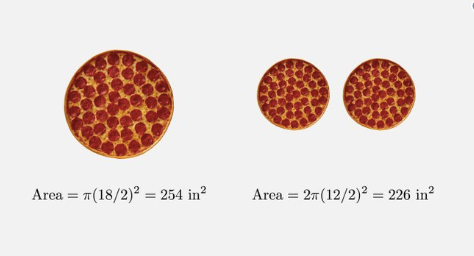

Do the math- double the diameter, quadruple the area. 2' diameter pizza (1' radius) vs. 4' diameter pizza (2' radius). Area = pi x square of radius.
2' pizza - 3.1416 x 1 x 1 = 3.1416
4' pizza - 3.1416 x 2 x 2 = 12.5664 (4 x the 2' pizza)
2' pizza - 3.1416 x 1 x 1 = 3.1416
4' pizza - 3.1416 x 2 x 2 = 12.5664 (4 x the 2' pizza)
9 Second Club
Joined: Nov 2003
Posts: 13,616
Likes: 185
From: Norn Iron
Will an equal length -12AN flow more/less/similar to 2 -6AN lines?
I find one site that states flow is directly proportional to the ID of the lines. Suggesting that 2 -6AN would flow similar to 1-12AN.
Yet I find another that says Area = Pi * Radius^2 which would indicate that the -12 has a greater area and flows more than than 2 -6's?
I find one site that states flow is directly proportional to the ID of the lines. Suggesting that 2 -6AN would flow similar to 1-12AN.
Yet I find another that says Area = Pi * Radius^2 which would indicate that the -12 has a greater area and flows more than than 2 -6's?
Although I did see someone post ages ago that just because a pair of hoses may calculate as the same area as a larger single...does not mean they flow the same. Can't recall his reasons though...might have been due to surface friction etc within the pipe ?
Interesting calculator here...Certainly putting numbers into this, a pair of small hoses flows nowhere near a single larger hose at the same pressure usng -6 and -12 as comparisons.
https://www.copely.com/tools/flow-rate-calculator/
Trending Topics
Thread Starter
Joined: May 2011
Posts: 8,485
Likes: 1,028
From: Wichita, KS
Don't go by hose sizes....measure the ID of the actual hose fittings, which are always smaller than the hose sizes, and all hose makers are not the same, nor are their fittings.
Although I did see someone post ages ago that just because a pair of hoses may calculate as the same area as a larger single...does not mean they flow the same. Can't recall his reasons though...might have been due to surface friction etc within the pipe ?
Interesting calculator here...Certainly putting numbers into this, a pair of small hoses flows nowhere near a single larger hose at the same pressure usng -6 and -12 as comparisons.
https://www.copely.com/tools/flow-rate-calculator/
Although I did see someone post ages ago that just because a pair of hoses may calculate as the same area as a larger single...does not mean they flow the same. Can't recall his reasons though...might have been due to surface friction etc within the pipe ?
Interesting calculator here...Certainly putting numbers into this, a pair of small hoses flows nowhere near a single larger hose at the same pressure usng -6 and -12 as comparisons.
https://www.copely.com/tools/flow-rate-calculator/
Looking at that fluid flow calc. It seems the larger line is leaps and bounds better?
-6 hose at 12 ft and 3 bar = 5.9 lpm 354lph (x2 708lph)
-10 hose at 12 ft adn 3 bar = 32.76 lpm 1965lph
-12 hose at 12ft and 4 bar = 57 lpm 3420lph
using 3/8 for -6 or 9.53mm.
using 5/8 for -10 or 15.88mm
using 3/4 for -12 or 19.05mm.
Feel like I did something wrong.
Reason I ask is guys seem to be getting more out of these AEM380 pumps by running separate -8 lines from each pump to each rail. Than guys merging -8 lines into a single -10 or -12 line. I'd think it would be the other way around.
This guys at a steady 13.5v and trapping 182 in a 3000lb setup. Yet others run out MUCH sooner with dual AEM's and "Y" in the system with a single larger line.
Last edited by Forcefed86; Oct 26, 2020 at 01:21 PM.
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Awesome K5 Blazer Restomod Comes With C7 Corvette Power
Verdad Gallardo
10 Camaros You Should Never Buy
10 LS Engine Myths That Refuse to Die
Verdad Gallardo 9 Second Club
Joined: Nov 2003
Posts: 13,616
Likes: 185
From: Norn Iron
The numbers from the calculator do seem far too dramatic. But presumably there is some science/physics behind them.
Unless you were making a **** ton of power on methanol or something though...-12 feed line does seem a tad excessive.
Although I would do a -12 from tank to pump as it's just a gravity feed, via a suitably large filter for each pump.
Unless you were making a **** ton of power on methanol or something though...-12 feed line does seem a tad excessive.
Although I would do a -12 from tank to pump as it's just a gravity feed, via a suitably large filter for each pump.
On The Tree
Joined: Mar 2010
Posts: 196
Likes: 1
From: London,Ontario,Canada
I also remember reading somewhere that hard line flows more than rubber in same size. Something about friction. So I would guess a lined rubber hose would flow more than pure rubber hose. So how much difference? Anyone else care to enlighten us?
Aleck
Aleck
