Default boost reference on the FPR

on the FPR there are the boost reference ports, where are you guys bringing this line from? what is it coming off of?

thanks,

Tyler
Old 03-30-2006, 01:40 PM
  #2
TECH Fanatic
iTrader: (4)

MECHAM's Avatar

Join Date: Aug 2002
Location: Colorado Springs
Posts: 1,243
Likes: 0
Received 0 Likes on 0 Posts
Default

tap into the line that goes behind the manifold
Old 03-30-2006, 01:42 PM
  #3
7 Second Club
Thread Starter
iTrader: (42)

ty_ty13's Avatar

Join Date: Jun 2004
Location: paducah, ky
Posts: 4,558
Likes: 0
Received 0 Likes on 0 Posts

Default

the map?

how do you tap into it... sorry for being a newb
Old 03-30-2006, 01:49 PM
  #4
10 Second Club
iTrader: (26)

ddnspider's Avatar

Join Date: Aug 2004
Location: FL
Posts: 14,608
Received 1,748 Likes on 1,305 Posts

Default

tap into the large hose off the back of the intake is what Mecham meant,its the brake booster
Old 03-30-2006, 01:54 PM
  #5
TECH Fanatic
iTrader: (4)

MECHAM's Avatar

Join Date: Aug 2002
Location: Colorado Springs
Posts: 1,243
Likes: 0
Received 0 Likes on 0 Posts
Default

sry man...i hate it when people are non - descriptive...so here is a photo
Attached Thumbnails boost reference on the FPR-inspection0-030.jpg
Old 03-30-2006, 01:59 PM
  #6
7 Second Club
Thread Starter
iTrader: (42)

ty_ty13's Avatar

Join Date: Jun 2004
Location: paducah, ky
Posts: 4,558
Likes: 0
Received 0 Likes on 0 Posts

Default

awesome... after he said brake booster line i new what he ment...


how are you guys doing this? what are you using?

sorry im very noobie to FI
Old 03-30-2006, 02:26 PM
  #7
TECH Fanatic
iTrader: (4)

MECHAM's Avatar

Join Date: Aug 2002
Location: Colorado Springs
Posts: 1,243
Likes: 0
Received 0 Likes on 0 Posts
Default

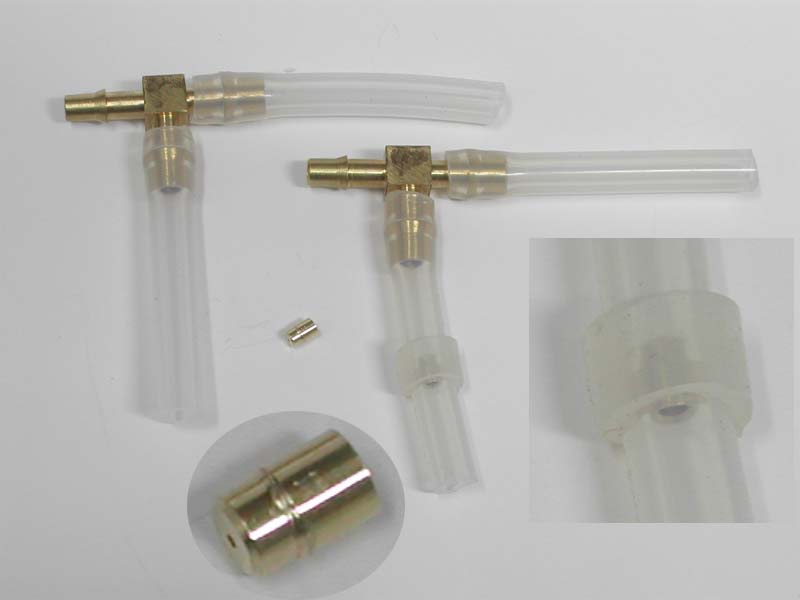

essential..u will cut the brake booster line in half...after the clip..and few inches cut it...then you will insert one of these metal pieces like below to reconnect the brake booster hose u just cut and it supply a nipple for your FPR

i have no idea where to obtain this fitting...

Old 03-30-2006, 03:14 PM
  #8
7 Second Club
Thread Starter
iTrader: (42)

ty_ty13's Avatar

Join Date: Jun 2004
Location: paducah, ky
Posts: 4,558
Likes: 0
Received 0 Likes on 0 Posts

Default

im very grateful.... your one of the few who will go out of their way to help.

Thanks,

Tyler
Old 03-30-2006, 03:27 PM
  #9
Coal Mining Director
iTrader: (17)

onfire's Avatar

Join Date: Nov 2001
Location: Virginia
Posts: 4,442
Likes: 0
Received 0 Likes on 0 Posts

Default

I wouldn't do that...it also refs vac. Tap a fmpr before the throttle body. That way you can set the base pressure at 58psi and it will only ramp up 1:1 with boost.
Old 03-30-2006, 03:37 PM
  #10
7 Second Club
Thread Starter
iTrader: (42)

ty_ty13's Avatar

Join Date: Jun 2004
Location: paducah, ky
Posts: 4,558
Likes: 0
Received 0 Likes on 0 Posts

Default

Originally Posted by onfire
I wouldn't do that...it also refs vac. Tap a fmpr before the throttle body. That way you can set the base pressure at 58psi and it will only ramp up 1:1 with boost.

what is fmpr

and how do you do that?
Old 03-30-2006, 04:41 PM
  #11
TECH Fanatic
iTrader: (5)

ABeasst's Avatar

Join Date: Oct 2003
Location: North Carolina
Posts: 1,420
Likes: 0
Received 0 Likes on 0 Posts

Default

fmpr= fuel pressure regulator
Old 03-30-2006, 04:54 PM
  #12
7 Second Club
Thread Starter
iTrader: (42)

ty_ty13's Avatar

Join Date: Jun 2004
Location: paducah, ky
Posts: 4,558
Likes: 0
Received 0 Likes on 0 Posts

Default

he said to tap it before the TB.... where or what hose is that?
Old 03-30-2006, 04:58 PM
  #13
10 Second Club
iTrader: (26)

ddnspider's Avatar

Join Date: Aug 2004
Location: FL
Posts: 14,608
Received 1,748 Likes on 1,305 Posts

Default

Originally Posted by onfire
I wouldn't do that...it also refs vac. Tap a fmpr before the throttle body. That way you can set the base pressure at 58psi and it will only ramp up 1:1 with boost.
actually if you used a check valve than it would work....but ive never heard of fuel pressure dropping because vacuum was going to the FPR.i didnt think that was possible
Old 03-30-2006, 05:00 PM
  #14
7 Second Club
Thread Starter
iTrader: (42)

ty_ty13's Avatar

Join Date: Jun 2004
Location: paducah, ky
Posts: 4,558
Likes: 0
Received 0 Likes on 0 Posts

Default

is a check valve just a one way air passage?
Old 03-30-2006, 05:01 PM
  #15
10 Second Club
iTrader: (26)

ddnspider's Avatar

Join Date: Aug 2004
Location: FL
Posts: 14,608
Received 1,748 Likes on 1,305 Posts

Default

you got it.but id double check about the FPR first because ive never heard of the pressure dropping simply because of vacuum
Old 03-30-2006, 07:24 PM
  #16
Coal Mining Director
iTrader: (17)

onfire's Avatar

Join Date: Nov 2001
Location: Virginia
Posts: 4,442
Likes: 0
Received 0 Likes on 0 Posts

Default

Originally Posted by ddnspider
you got it.but id double check about the FPR first because ive never heard of the pressure dropping simply because of vacuum
One way check would work great. Some Front Mount Fuel Pressure Regulators do reduce fuel pressure based on vac...just like they ramp up fuel pressure based on pressure.

I tapped my inlet pipe before the throttle body and took that reference to the regulator.
Old 03-30-2006, 08:37 PM
  #17
TECH Fanatic
iTrader: (4)

MECHAM's Avatar

Join Date: Aug 2002
Location: Colorado Springs
Posts: 1,243
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by onfire
I tapped my inlet pipe before the throttle body and took that reference to the regulator.

pic?
Old 03-30-2006, 10:24 PM
  #18
Coal Mining Director
iTrader: (17)

onfire's Avatar

Join Date: Nov 2001
Location: Virginia
Posts: 4,442
Likes: 0
Received 0 Likes on 0 Posts

Default

This will get ya close. You see where the line leaves the Wedon regulator and travels between the fender and the abs block. Then it leaves the pic and turns into the black pipe that has a barbed nipple....so boost only reference.
Attached Thumbnails boost reference on the FPR-mvc-001f-small-.jpg
Old 03-30-2006, 10:29 PM
  #19
TECH Fanatic
iTrader: (5)

ABeasst's Avatar

Join Date: Oct 2003
Location: North Carolina
Posts: 1,420
Likes: 0
Received 0 Likes on 0 Posts

Default

onfire what is running off the power steering pulley?
Old 03-31-2006, 08:21 AM
  #20
Coal Mining Director
iTrader: (17)

onfire's Avatar

Join Date: Nov 2001
Location: Virginia
Posts: 4,442
Likes: 0
Received 0 Likes on 0 Posts

Default

Originally Posted by ABeasst
onfire what is running off the power steering pulley?
Scavenge pump for the turbos.
