Proper orientation of motor mounts ?

Pulled my motor mounts off the old engine and had the parts laid out nicely ready to install on new engine when a friend came over and both mounts got kicked around the garage by accident.

Can somebody describe the proper orientation to mount on the engine, left and right side?

Old

Jan 5, 2019 | 09:00 PM

#2

TECH Fanatic

iTrader: (5)

Joined: Mar 2004

Posts: 1,882

Likes: 281

From: Lansdale, PA

Default

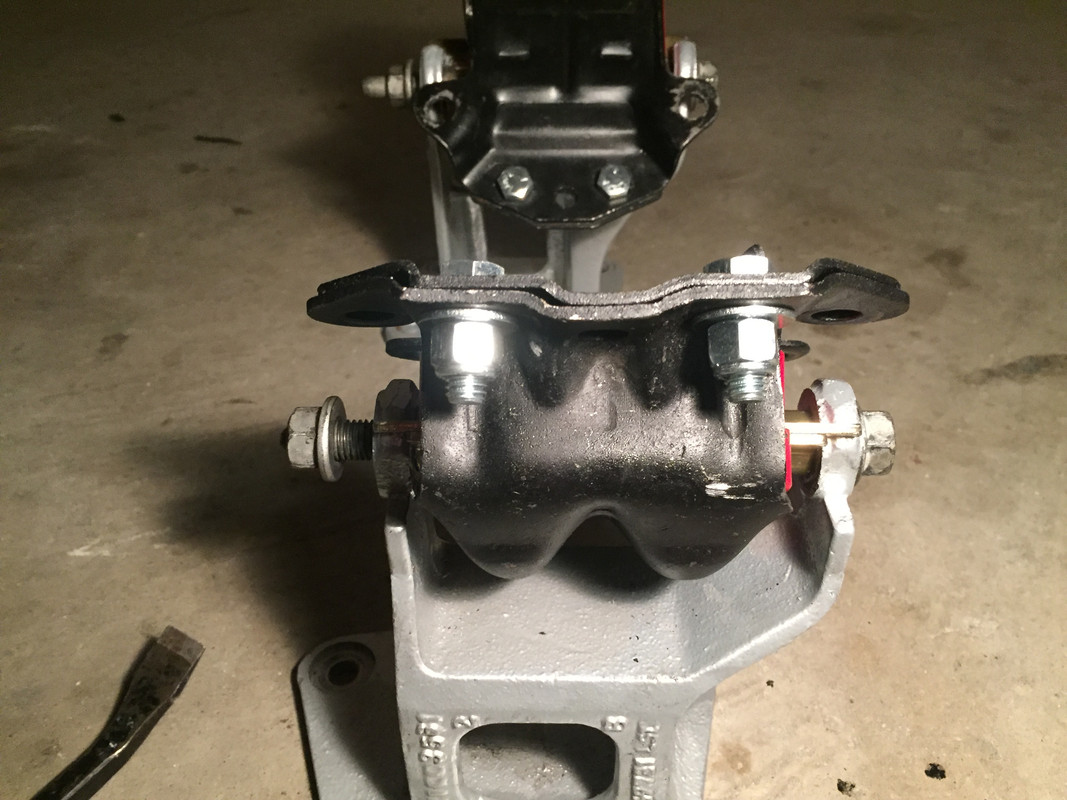

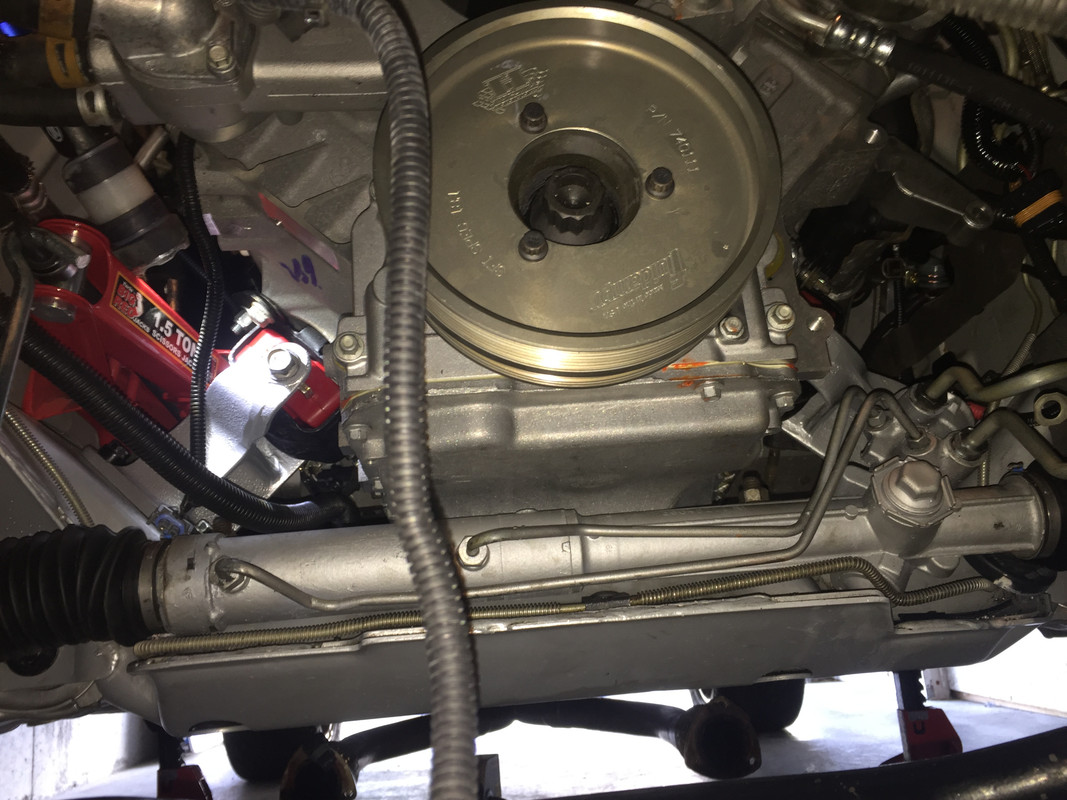

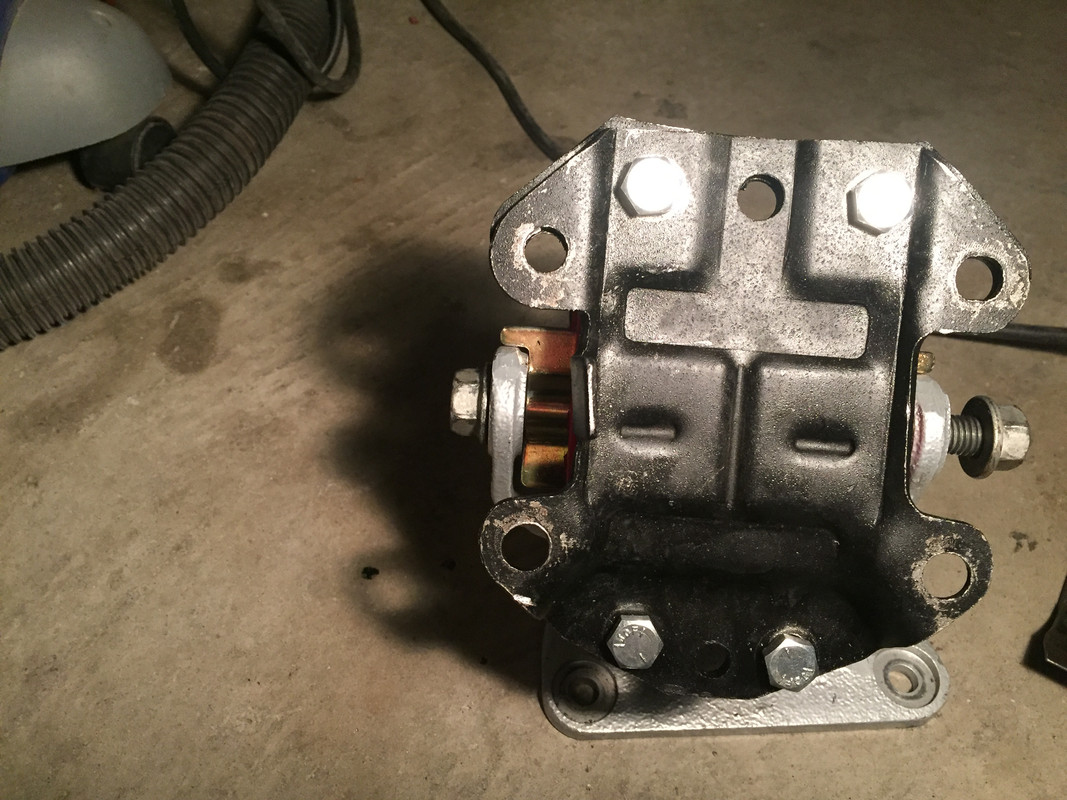

Is this helpful?

Last edited by lees02WS6; Apr 7, 2023 at 09:58 PM.

Old

Jan 5, 2019 | 10:25 PM

#3

Thread Starter

TECH Fanatic

iTrader: (23)

Joined: Sep 2010

Posts: 1,324

Likes: 404

From: USA

Default

Yes, I think that tells the story. Basically the more rounded end faces down.

Thanks!

Old

Jan 5, 2019 | 10:38 PM

#4

TECH Fanatic

iTrader: (5)

Joined: Mar 2004

Posts: 1,882

Likes: 281

From: Lansdale, PA

Default

Pay attention to the orientation of the tabs on the mount also. The passenger side and drivers side mounts are specific to their side

Old

Jan 6, 2019 | 12:41 AM

#5

Thread Starter

TECH Fanatic

iTrader: (23)

Joined: Sep 2010

Posts: 1,324

Likes: 404

From: USA

Default

Okay, will do.

Old

Jan 6, 2019 | 04:15 AM

#6

TECH Senior Member

iTrader: (1)

Joined: Feb 2010

Posts: 6,755

Likes: 292

From: Fort Worth TX

Default

you could save 50pds by using lightweight mounts.....jus sayin.....

Old

Jan 6, 2019 | 11:25 AM

#7

TECH Fanatic

iTrader: (5)

Joined: Mar 2004

Posts: 1,882

Likes: 281

From: Lansdale, PA

Default

Did you mean 5 lbs? Those engine mounts combined can't weigh more than 20lbs with the pedestals included.
