Anyone know what this is?

Thread Tools

Search this Thread

Old Sep 26, 2025 | 03:16 PM
Share
  #1
64post's Avatar
64post
Thread Starter
TECH Fanatic
Photogenic
Liked
Loved
Community Favorite
iTrader: (5)

Joined: Nov 2011
Posts: 1,710
Likes: 228
From: Sonoma Co. Ca.
Default Anyone know what this is?

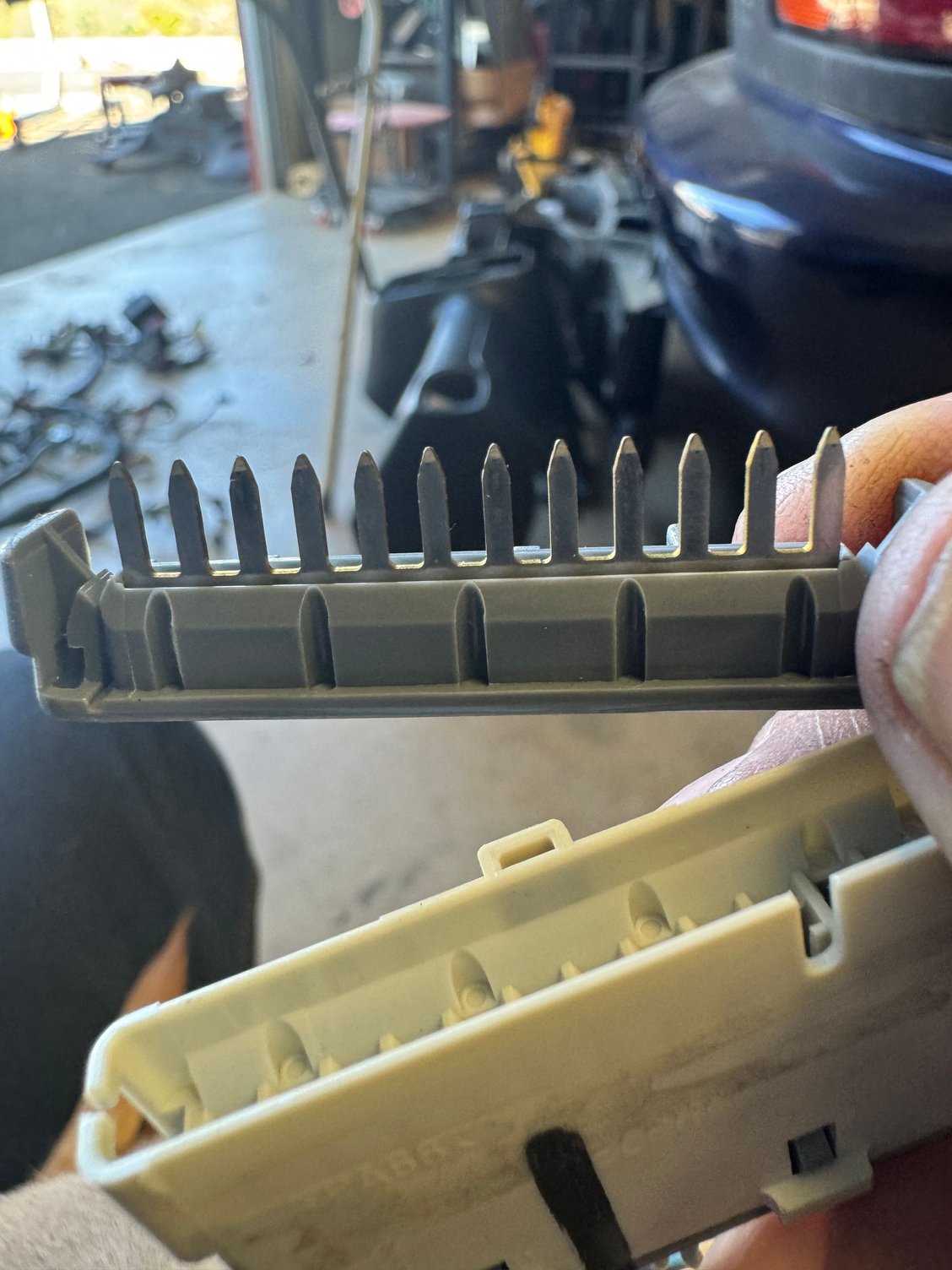

It lives up under tha dash, is taped up, has 5 wires and 12 pins…
It lives up under tha dash, is taped up, has 5 wires and 12 pins…
Reply
0
Old Sep 26, 2025 | 04:54 PM
Share
  #2
RB04Av's Avatar
RB04Av
TECH Addict
5 Year Member
Photogenic
Liked
Top Answer: 1

Joined: Dec 2017
Posts: 2,180
Likes: 969
Default
Looks kinda like a connector.

​​​​​​​up under tha dash
What dash?

What color are the wires?
Reply
0
Old Sep 26, 2025 | 06:34 PM
Share
  #3
64post's Avatar
64post
Thread Starter
TECH Fanatic
Photogenic
Liked
Loved
Community Favorite
iTrader: (5)

Joined: Nov 2011
Posts: 1,710
Likes: 228
From: Sonoma Co. Ca.
Default
00 Camaro z28
Reply
0
Old Sep 26, 2025 | 07:15 PM
Share
  #4
grinder11's Avatar
grinder11
TECH Junkie
20 Year Member
Liked
Loved
Community Favorite
iTrader: (1)

Joined: Sep 2004
Posts: 3,212
Likes: 1,612
From: Michigan & Florida
Default
Looks like a central grounding point, in that each "prong" carries a ground signal that probably originates with 1 or 2 actual ground wires. This connector takes a ground signal and distributes it to all the connectors, I think....
Reply
1
Old Sep 27, 2025 | 09:34 AM
Share
  #5
64post's Avatar
64post
Thread Starter
TECH Fanatic
Photogenic
Liked
Loved
Community Favorite
iTrader: (5)

Joined: Nov 2011
Posts: 1,710
Likes: 228
From: Sonoma Co. Ca.
Default
Originally Posted by grinder11
Looks like a central grounding point, in that each "prong" carries a ground signal that probably originates with 1 or 2 actual ground wires. This connector takes a ground signal and distributes it to all the connectors, I think....
No, not a ground, I’ll say, it’s plastic and mounted with plastic, I don’t see how this could be anything related to ground as the wire gauges really small.i am changing the dash of a ‘00 with one from an 02, they both have this item.
Reply
0
Old Sep 27, 2025 | 11:58 AM
Share
  #6
grinder11's Avatar
grinder11
TECH Junkie
20 Year Member
Liked
Loved
Community Favorite
iTrader: (1)

Joined: Sep 2004
Posts: 3,212
Likes: 1,612
From: Michigan & Florida
Default
If it's not a ground, then it's a power distributor of some sort. All those points are for distributing either ground, or power, to many other circuits......
Reply
0
Old Sep 27, 2025 | 03:03 PM
Share
  #7
G Atsma's Avatar
G Atsma
TECH Senior Member
5 Year Member
Liked
Loved
Community Favorite

Joined: Jun 2016
Posts: 22,291
Likes: 3,615
From: Central Cal.
Default
Originally Posted by grinder11
If it's not a ground, then it's a power distributor of some sort. All those points are for distributing either ground, or power, to many other circuits......
He said the points are PLASTIC. Yeah, sounds weird....
Reply
0

Trending Topics

Old Sep 27, 2025 | 06:06 PM
Share
  #8
the_merv's Avatar
the_merv
Banned
iTrader: (88)

Joined: Mar 2006
Posts: 21,019
Likes: 893
From: The Beach...
Default
It's a small comb so you can comb your hair..

The pin part there is metal, that's a junction block as others have mentioned. Color of the wires will dial in what it's for.
Reply
0
LS1 Tech Stories

The Best V8 Stories One Small Block at Time

story-0

Amazing '71 Camaro Restomod Is Modern Muscle Car Under the Skin

 Verdad Gallardo
story-1

6 Common C5 Corvette Failures and What's Involved In Repairing Them

 Pouria Savadkouei
story-2

Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph

 Verdad Gallardo
story-3

Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked

 Pouria Savadkouei
story-4

Top 10 Most Powerful Chevy Trucks Ever Made!


story-5

Hennessey's New Supercharged Silverado ZR2 Has 700 HP

 Verdad Gallardo
story-6

Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes

 Verdad Gallardo
story-7

Awesome K5 Blazer Restomod Comes With C7 Corvette Power

 Verdad Gallardo
story-8

10 Camaros You Should Never Buy


story-9

10 LS Engine Myths That Refuse to Die

 Verdad Gallardo
Old Sep 27, 2025 | 07:01 PM
Share
  #9
Bbknucks's Avatar
Bbknucks
TECH Regular
Photogenic
Photoriffic
Shutterbug

Joined: Dec 2022
Posts: 444
Likes: 158
Default
Data bus connector
Reply
0
Old Sep 27, 2025 | 08:53 PM
Share
  #10
64post's Avatar
64post
Thread Starter
TECH Fanatic
Photogenic
Liked
Loved
Community Favorite
iTrader: (5)

Joined: Nov 2011
Posts: 1,710
Likes: 228
From: Sonoma Co. Ca.
Default
Maybe….Just wanted to know if it had anything to do with the security system as I am changing dashboard and steering column on the 2000 with the same items and more with 2002 SS , I have both ignition locks and switches and both key sets.
Last edited by 64post; Sep 27, 2025 at 09:03 PM.
Reply
0
Old Sep 27, 2025 | 08:55 PM
Share
  #11
64post's Avatar
64post
Thread Starter
TECH Fanatic
Photogenic
Liked
Loved
Community Favorite
iTrader: (5)

Joined: Nov 2011
Posts: 1,710
Likes: 228
From: Sonoma Co. Ca.
Default
No, you mis understood, the housing is plastic, the teeth are aluminum.
Reply
0
Old Sep 27, 2025 | 09:06 PM
Share
  #12
G Atsma's Avatar
G Atsma
TECH Senior Member
5 Year Member
Liked
Loved
Community Favorite

Joined: Jun 2016
Posts: 22,291
Likes: 3,615
From: Central Cal.
Default
Originally Posted by 64post
No, you mis understood, the housing is plastic, the teeth are aluminum.
THAT makes MUCH more sense!
Reply
0
Old Sep 27, 2025 | 10:00 PM
Share
  #13
Bbknucks's Avatar
Bbknucks
TECH Regular
Photogenic
Photoriffic
Shutterbug

Joined: Dec 2022
Posts: 444
Likes: 158
Default
Not maybe...thats what it is

All your modules and obd connector join there
Reply
0
Old Sep 28, 2025 | 09:06 AM
Share
  #14
the_merv's Avatar
the_merv
Banned
iTrader: (88)

Joined: Mar 2006
Posts: 21,019
Likes: 893
From: The Beach...
Default
Originally Posted by Bbknucks
Not maybe...thats what it is

All your modules and obd connector join there
It's for the Serial Data Wire coming off the PCM then. Goes to the DLC, the Gauge Cluster, the BCM also if I remember right. One other in there if 5 wires.

Originally Posted by 64post
Maybe….Just wanted to know if it had anything to do with the security system as I am changing dashboard and steering column on the 2000 with the same items and more with 2002 SS , I have both ignition locks and switches and both key sets.
It's just a connection point to splice all them Serial Data circuits together, don't have to swap that out to another car it's the same in both.
Reply
1
Old Sep 29, 2025 | 05:11 PM
Share
  #15
Bbknucks's Avatar
Bbknucks
TECH Regular
Photogenic
Photoriffic
Shutterbug

Joined: Dec 2022
Posts: 444
Likes: 158
Default
Air bag is the other one
Reply
0
Back to Subforum
Generation III External Engine
View Next Unread
Opinions on my custom designed air filter.
