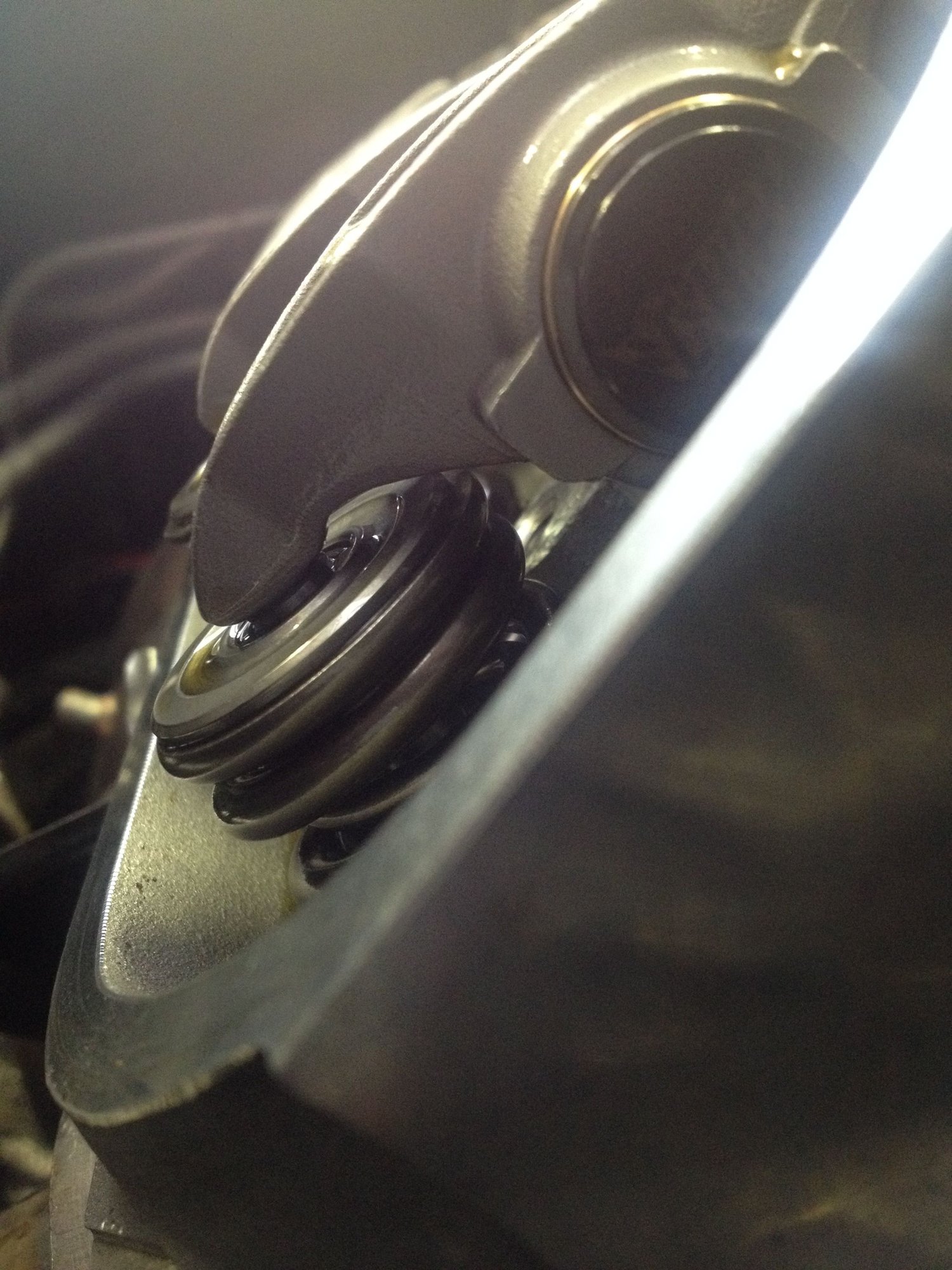

Rocker arm rubbing valve spring cap
they came with the valve springs in a kit http://shop.brutespeed.com/Comp-2692...6-16TI-KIT.htm
they do look a lot different then yours though.
I asked Bob at brute speed and he sent me a link from comp it says 1.835 install height is 1.8 a lot more common? I just have the seat and no spacers under it
they do look a lot different then yours though.
I asked Bob at brute speed and he sent me a link from comp it says 1.835 install height is 1.8 a lot more common? I just have the seat and no spacers under it

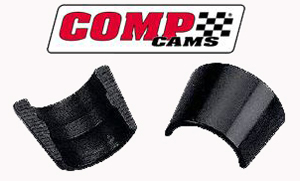

I don't know if this means anything or not, but every photo I see of the 623 locks, they're black.
Thread Starter
On The Tree
Joined: May 2011
Posts: 129
Likes: 0
From: Lake County Ca
Id have to look around and see if I kept the stock locks. The ones installed are the black comp ones, I can pull them out and get a picture of them though.
The valves do look like there sitting pretty low, but we've never pulled the valves or messed with them and the heads have never been pulled to my knowledge
It's not the valve stem that's the problem, the retainers you have drop the valve into the retainer and create a shoulder on top....I've never seen dual spring retainers for an LS1 like that...I'm guessing they're the problem
I agree, your retainers are too high. It's either the lock or the retainer itself. I would pull the locks on one cylinder and see what they look like. They might have given you offset locks so the retainers sit higher rather than the standard locks. The offset is usually 0.050" so if that were the case, you installed height would be 1.785" which is closer to those I have measured on untouched GM heads.
Id have to look around and see if I kept the stock locks. The ones installed are the black comp ones, I can pull them out and get a picture of them though.
The valves do look like there sitting pretty low, but we've never pulled the valves or messed with them and the heads have never been pulled to my knowledge
The valves do look like there sitting pretty low, but we've never pulled the valves or messed with them and the heads have never been pulled to my knowledge
Looking at the above picture, you might be using them. If I remember tonight, I'll try and take a picture of some I have in my basement.
Obviously, these locks are for two different spring retainers, but for the same application. The red line marks the location of the ridge, that locks into the valve stem groove. The pair on the right are from Lunati, and they are designed to give an additional 0.050" of spring installed height.
ul-ss , what's the total shim thickness used under the spring seats..?
I would think if offset locks were used there would possibly be an abnormally high amount of shim height used under the spring seats.
I would think if offset locks were used there would possibly be an abnormally high amount of shim height used under the spring seats.
