Self-ported FAST 92mm pics. before/after..
Self-ported FAST 92mm pics. before/after.. Hi
just bought Fast 92mm and LS2 TB 90mm
And i´m porting them me self,

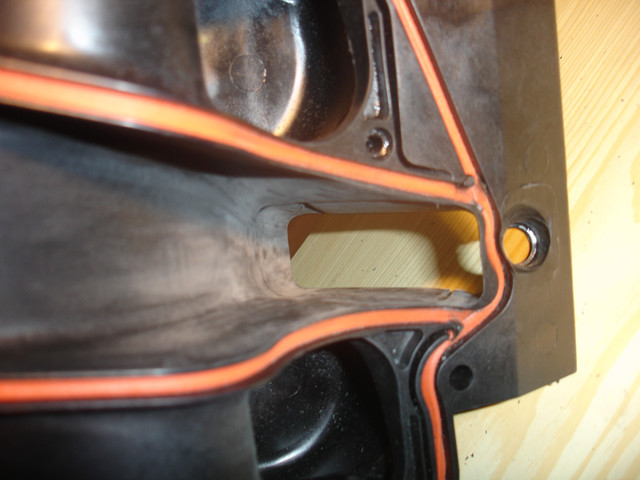

Just wanted to post pics,. because i looked all around for pics me self before i started porting....

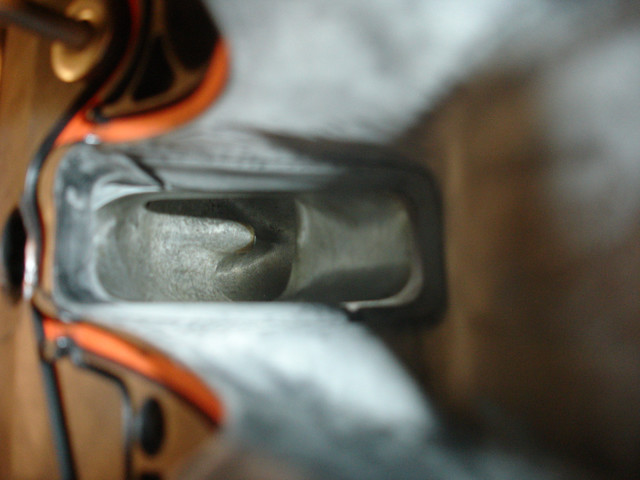

here are first results
I will keep up posting pics.
just bought Fast 92mm and LS2 TB 90mm
And i´m porting them me self,
Just wanted to post pics,. because i looked all around for pics me self before i started porting....
here are first results
I will keep up posting pics.
Last edited by baezi z06; Dec 13, 2009 at 02:53 AM.
subscribed, Nice picts and port job.
I want to see the ported throttle body picts as I'll be doing the same this weekend.
What about the entrance or mouth to the runner, are you doing any work there on the other end?
I can stick my hand into the snout with the intake assembled and feel a ridge of the intermediary black plastic that is constricting the runner enterance/mouth opening. Both the 78 and the 92 both have this ridge.
I want to see the ported throttle body picts as I'll be doing the same this weekend.
What about the entrance or mouth to the runner, are you doing any work there on the other end?
I can stick my hand into the snout with the intake assembled and feel a ridge of the intermediary black plastic that is constricting the runner enterance/mouth opening. Both the 78 and the 92 both have this ridge.
Last edited by dmiz0420; Dec 18, 2009 at 10:11 AM. Reason: After feeling inside the fast 78, it appears both the 78 and the 92 both have this ridge.
subscribed, Nice picts and port job.
I want to see the ported throttle body picts as I'll be doing the same this weekend.
What about the entrance or mouth to the runner, are you doing any work there on the other end?
I can stick my hand into the snout with the intake assembled and feel a ridge of the intermediary black plastic that is constricting the runner enterance/mouth opening. When I put a Fast 78 on it, the ridge feels flush with the opening to the runner (which indicates a larger runner or some differnce).
I want to see the ported throttle body picts as I'll be doing the same this weekend.
What about the entrance or mouth to the runner, are you doing any work there on the other end?
I can stick my hand into the snout with the intake assembled and feel a ridge of the intermediary black plastic that is constricting the runner enterance/mouth opening. When I put a Fast 78 on it, the ridge feels flush with the opening to the runner (which indicates a larger runner or some differnce).
i have finished the porting job on the TB and mouth i´ll post pics today,
And i finished the Fast too, but i´m waiting for my heads to come out of the milling, and then can matche them together, heads and Fast.
will keep you posted.
Baezi
Trending Topics
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Awesome K5 Blazer Restomod Comes With C7 Corvette Power
Verdad Gallardo
10 Camaros You Should Never Buy
10 LS Engine Myths That Refuse to Die
Verdad Gallardo sorry been busy...
i´m not finished porting, but mostly.
i´ve not matched the fast intake to the heads, because i´m waiting for them. (they are in milling)
so maby i´ll take more of it for the runners.....?

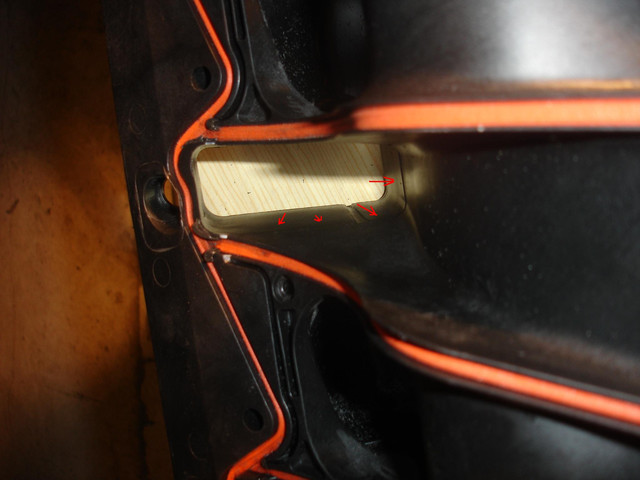

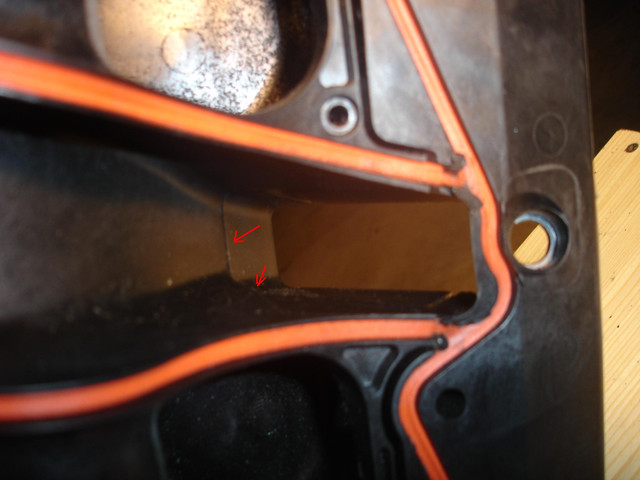

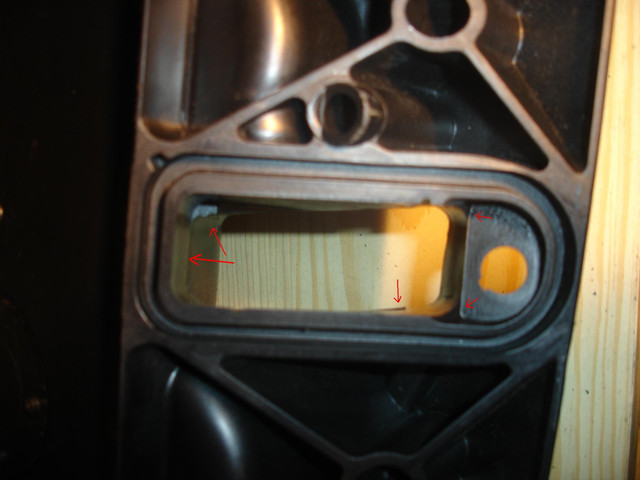

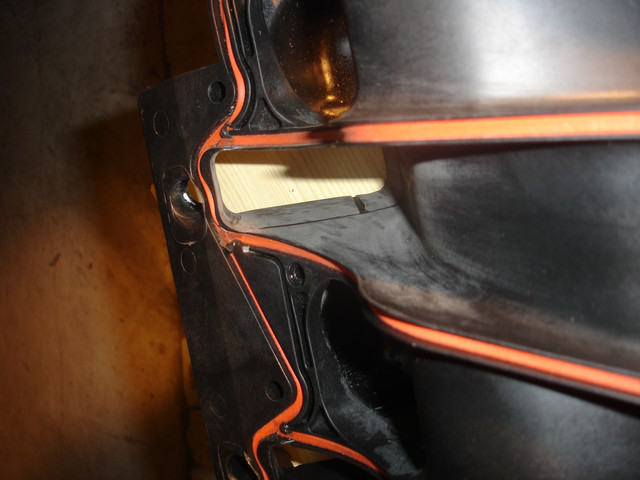

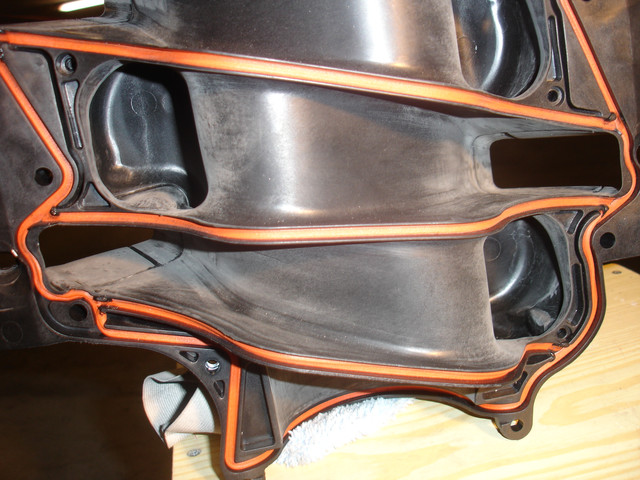

but here is a little sample i´ve been doing....

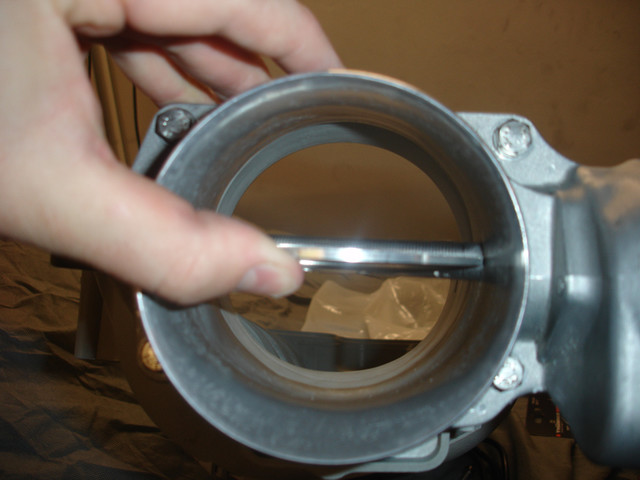

And for the LS2 90mm TB i forgotte to take photos before, so....

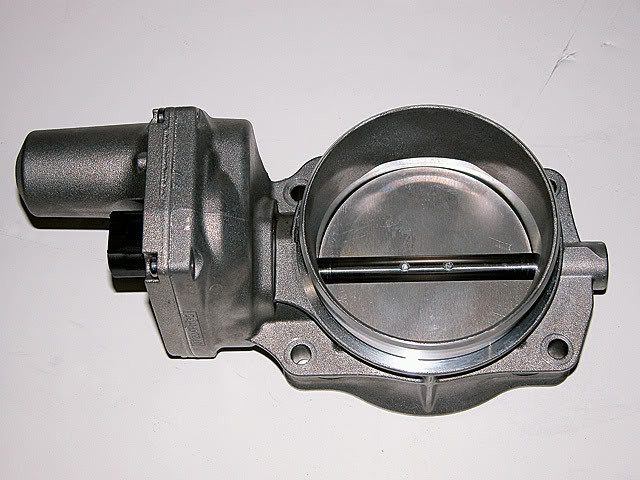

but here is photo of unported ls2 TB that i googled...

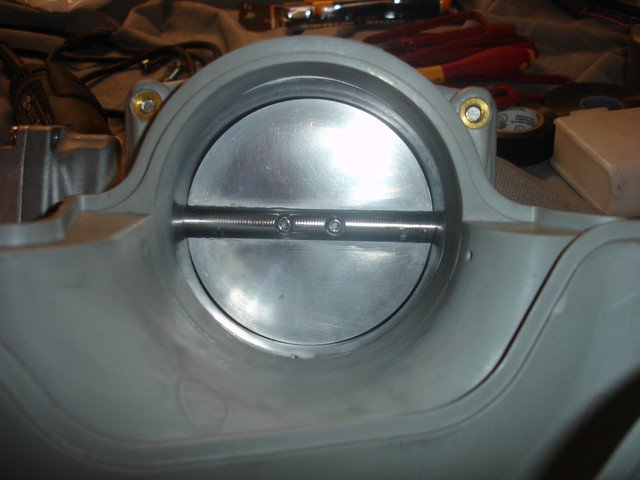

here is after porting
I´m not finished porting the TB and matche it to the intake´s mouth, but i opened the tB up for the 92mm fast mouth in first, but i was maby thinking, should i open up the mouth more, and porte the TB to matche, i think it´s material for it, maby 93-95mm,
What do you guys think???
let me know what you think.....
Baezi
i´m not finished porting, but mostly.
i´ve not matched the fast intake to the heads, because i´m waiting for them. (they are in milling)
so maby i´ll take more of it for the runners.....?
but here is a little sample i´ve been doing....
And for the LS2 90mm TB i forgotte to take photos before, so....
but here is photo of unported ls2 TB that i googled...
here is after porting
I´m not finished porting the TB and matche it to the intake´s mouth, but i opened the tB up for the 92mm fast mouth in first, but i was maby thinking, should i open up the mouth more, and porte the TB to matche, i think it´s material for it, maby 93-95mm,
What do you guys think???
let me know what you think.....
Baezi
Yes it is.... true true....
hopefully i´m increasing the flow.... a bit.
i bought also the SLP bellow hose to replace the restricted orginal air-bridge.
i´m running MTI ram-air honker air intake kit.
so hopefully me 402 can now breathe better....
Baezi
hi
Got the heads back before christmas and i threw them on just to matche the fast on.
And i can say: my small TFS 215cc are "NOT" perfect fitt , the runners are too small
so it´s a lot more port work in my garage next days....
can´t see how people can spend time and money increasing their flow threw their intakes and then leave these walls in the runners.

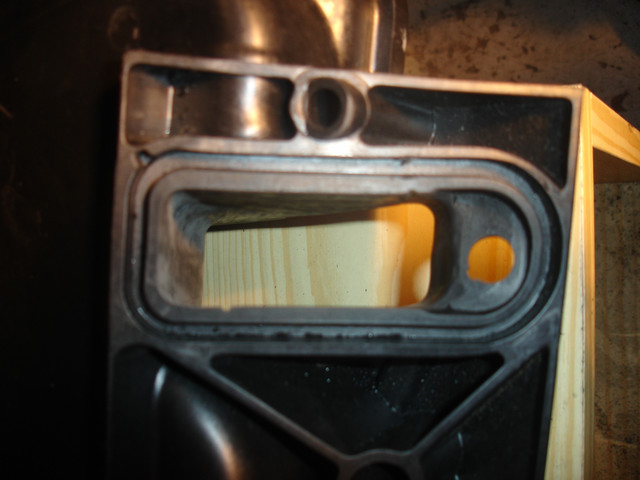

Before pics:
