What's this in my plenum?

Thread Tools

Search this Thread

Old Aug 31, 2015 | 09:23 AM
Share
  #1
pigsticker's Avatar
pigsticker
Thread Starter
Staging Lane

Joined: Feb 2010
Posts: 54
Likes: 1
From: Mississippi
Default What's this in my plenum?
Hey guys, I just finished changing plugs, wires, and valve cover gaskets on my 06 GXP. I noticed when I took the cover off the plenum there is a port in the middle of the plenum. I'm not sure if something goes here and if it's sucking air when the car is running because I have the battery out of it from doing several things. If something goes there I figure it can't be much since the cover sits on top pretty close. Not sure if this is the original plenum since I bought it used. Any info on this? I looked for pics of an LS4 plenum but had no luck.
Reply
0
Old Aug 31, 2015 | 09:44 AM
Share
  #2
lVloses's Avatar
lVloses
TECH Regular
iTrader: (1)

Joined: Mar 2012
Posts: 462
Likes: 3
From: Lincoln, NE
Default
Originally Posted by pigsticker
Hey guys, I just finished changing plugs, wires, and valve cover gaskets on my 06 GXP. I noticed when I took the cover off the plenum there is a port in the middle of the plenum. I'm not sure if something goes here and if it's sucking air when the car is running because I have the battery out of it from doing several things. If something goes there I figure it can't be much since the cover sits on top pretty close. Not sure if this is the original plenum since I bought it used. Any info on this? I looked for pics of an LS4 plenum but had no luck.
There is an unused nipple on the manifold. I'm assuming that's what you're talking about.
Reply
0
Old Aug 31, 2015 | 09:52 AM
Share
  #3
rottonj's Avatar
rottonj
TECH Fanatic
15 Year Member
Photogenic
Photoriffic
Shutterbug
iTrader: (4)

Joined: Jul 2008
Posts: 1,403
Likes: 7
From: Connecticut
Default
Originally Posted by pigsticker
Hey guys, I just finished changing plugs, wires, and valve cover gaskets on my 06 GXP. I noticed when I took the cover off the plenum there is a port in the middle of the plenum. I'm not sure if something goes here and if it's sucking air when the car is running because I have the battery out of it from doing several things. If something goes there I figure it can't be much since the cover sits on top pretty close. Not sure if this is the original plenum since I bought it used. Any info on this? I looked for pics of an LS4 plenum but had no luck.
There is an unused port on mine right near the TB, not sure if that is what you are talking about. A pic would help?
Reply
0
Old Aug 31, 2015 | 11:57 AM
Share
  #4
pigsticker's Avatar
pigsticker
Thread Starter
Staging Lane

Joined: Feb 2010
Posts: 54
Likes: 1
From: Mississippi
Default
Ok. I'll get a pic when I get home. Not really sure how to post it since I've never had to do it.
Reply
0
Old Aug 31, 2015 | 03:29 PM
Share
  #5
pigsticker's Avatar
pigsticker
Thread Starter
Staging Lane

Joined: Feb 2010
Posts: 54
Likes: 1
From: Mississippi

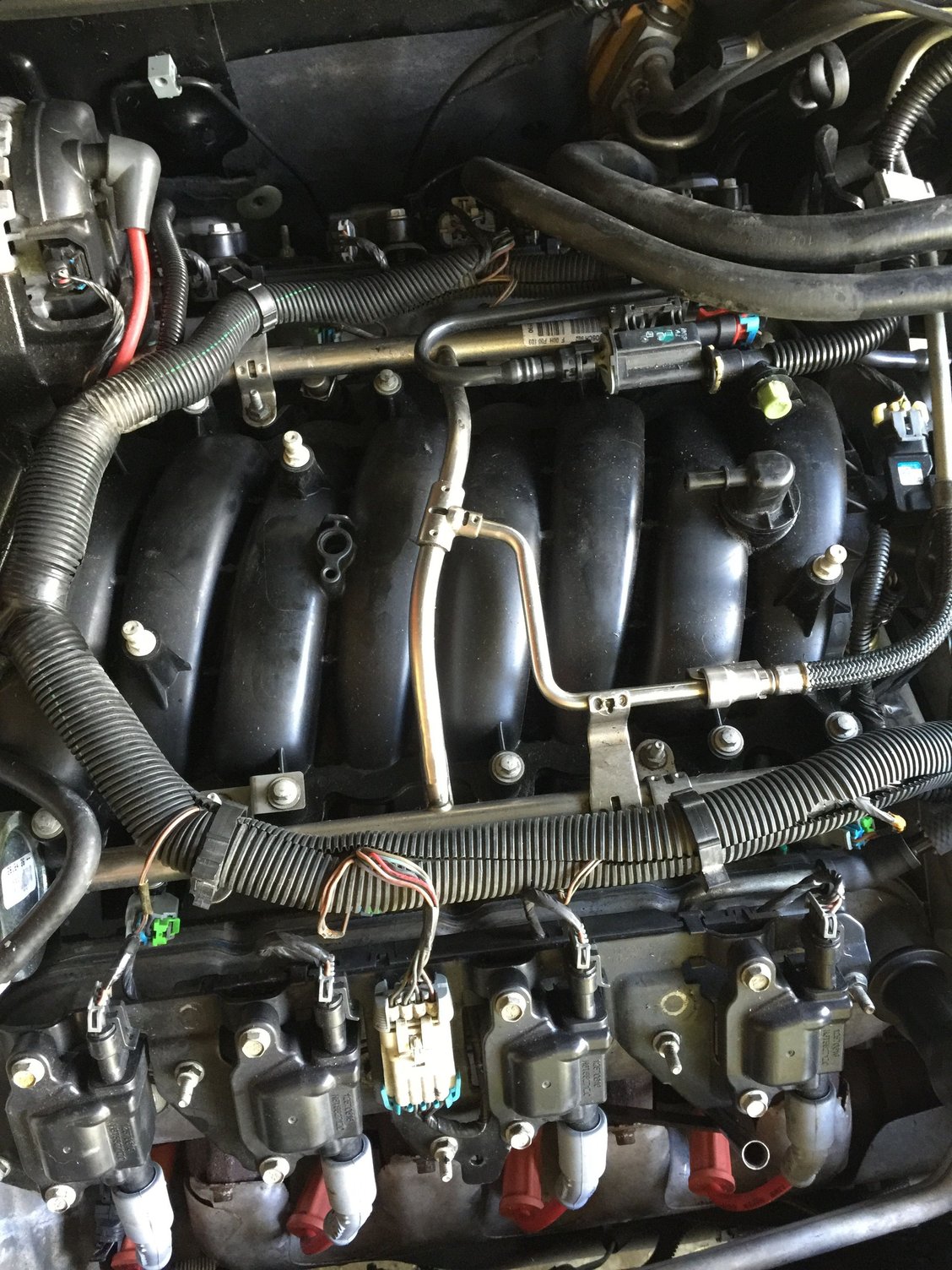

Default



Reply
0
Old Aug 31, 2015 | 04:11 PM
Share
  #6
spawne32's Avatar
spawne32
TECH Fanatic
iTrader: (2)

Joined: Jan 2014
Posts: 1,524
Likes: 4
Default

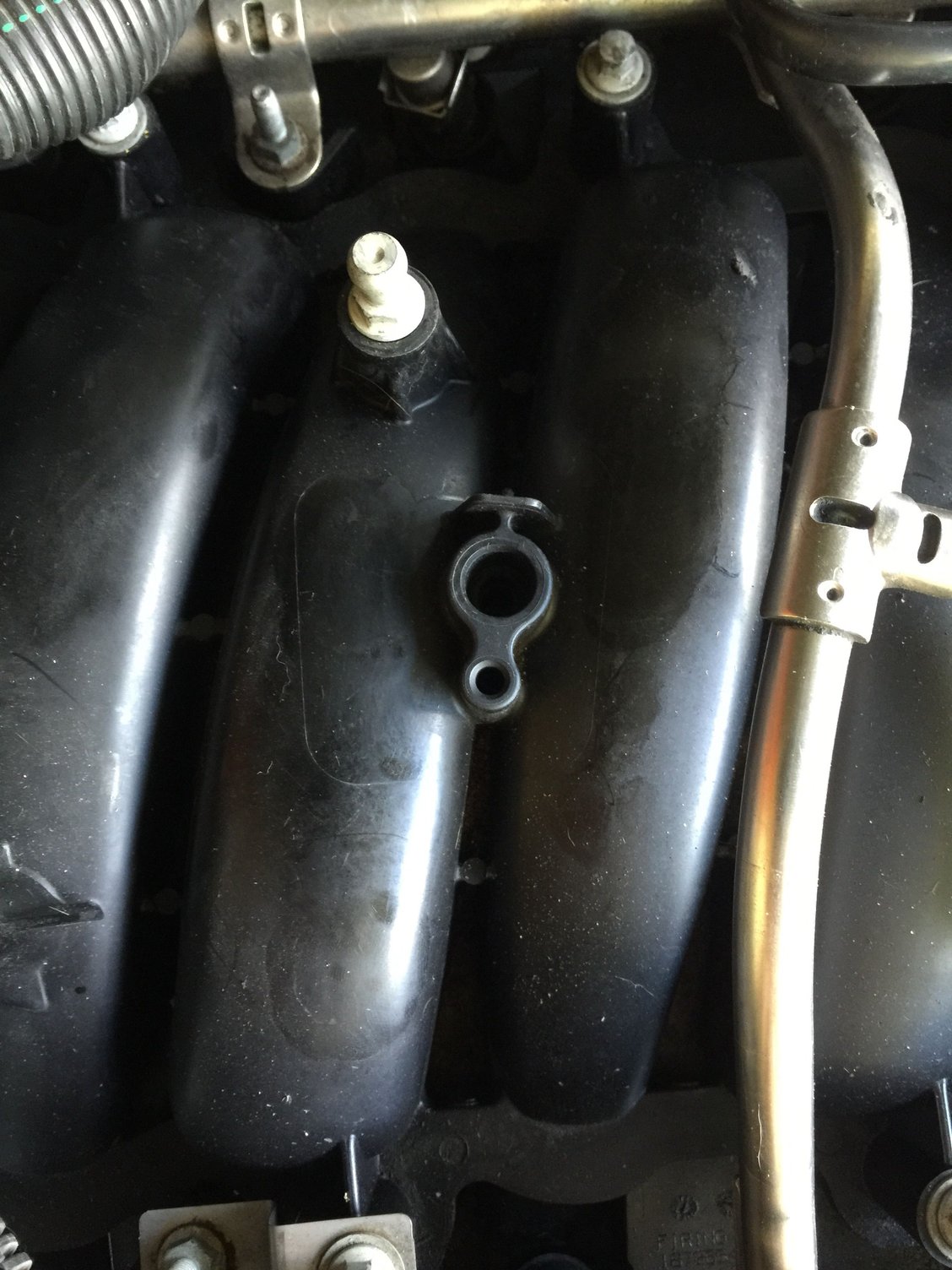

thats the map sensor port, and the one to the right of that comes off the back valve cover with a vac hose
Reply
0
Old Aug 31, 2015 | 05:17 PM
Share
  #7
rottonj's Avatar
rottonj
TECH Fanatic
15 Year Member
Photogenic
Photoriffic
Shutterbug
iTrader: (4)

Joined: Jul 2008
Posts: 1,403
Likes: 7
From: Connecticut
Default
map sensor
Attached Thumbnails What's this in my plenum?-map1.jpg
Reply
0

Trending Topics

Old Aug 31, 2015 | 05:39 PM
Share
  #8
91parkave's Avatar
91parkave
Moderator
15 Year Member
iTrader: (4)

Joined: Feb 2008
Posts: 2,079
Likes: 9
From: Arizona
Default
Since your a 06 you just need to move the map over to that location since it used to sit by the throttle body for all 05 06 ls4 vehicles
Reply
0
LS1 Tech Stories

The Best V8 Stories One Small Block at Time

story-0

Topdon ONE vs. Artidiag 800 BT2: Which is the Diagnostic Tablet For You?

 Pouria Savadkouei
story-1

Gas Monkey Built a 6-Wheel Ferrari Testarossa With a Corvette LT4 Engine

 Verdad Gallardo
story-2

7 Most Reliable High-Performance Engines GM Has Ever Built

 Verdad Gallardo
story-3

Amazing '71 Camaro Restomod Is Modern Muscle Car Under the Skin

 Verdad Gallardo
story-4

6 Common C5 Corvette Failures and What's Involved In Repairing Them

 Pouria Savadkouei
story-5

Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph

 Verdad Gallardo
story-6

Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked

 Pouria Savadkouei
story-7

Top 10 Most Powerful Chevy Trucks Ever Made!


story-8

Hennessey's New Supercharged Silverado ZR2 Has 700 HP

 Verdad Gallardo
story-9

Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes

 Verdad Gallardo
Old Aug 31, 2015 | 05:51 PM
Share
  #9
rottonj's Avatar
rottonj
TECH Fanatic
15 Year Member
Photogenic
Photoriffic
Shutterbug
iTrader: (4)

Joined: Jul 2008
Posts: 1,403
Likes: 7
From: Connecticut
Default
So is he missing it ?
Reply
0
Old Aug 31, 2015 | 06:28 PM
Share
  #10
pigsticker's Avatar
pigsticker
Thread Starter
Staging Lane

Joined: Feb 2010
Posts: 54
Likes: 1
From: Mississippi
Default
91parkave is my map located somewhere else. I haven't noticed a wiring harness for it in that area in the picture.
Reply
0
Old Aug 31, 2015 | 07:09 PM
Share
  #11
spawne32's Avatar
spawne32
TECH Fanatic
iTrader: (2)

Joined: Jan 2014
Posts: 1,524
Likes: 4
Default
Originally Posted by pigsticker
91parkave is my map located somewhere else. I haven't noticed a wiring harness for it in that area in the picture.
one of the MAP ports should be blocked off depending on the year, you can just test that by using a small screwdriver to see if it goes into the manifold. If both ports are open, then you need to block one of them off so it cant put air through it. Although they shouldnt be.
Reply
0
Old Aug 31, 2015 | 07:16 PM
Share
  #12
pigsticker's Avatar
pigsticker
Thread Starter
Staging Lane

Joined: Feb 2010
Posts: 54
Likes: 1
From: Mississippi
Default
Ok. I'll check it out. Thanks for the help.
Reply
0
Old Aug 31, 2015 | 08:02 PM
Share
  #13
91parkave's Avatar
91parkave
Moderator
15 Year Member
iTrader: (4)

Joined: Feb 2008
Posts: 2,079
Likes: 9
From: Arizona
Default
I've never seen a ls4 manifold with both locations for the map odd.
Reply
0
Old Aug 31, 2015 | 10:24 PM
Share
  #14
pigsticker's Avatar
pigsticker
Thread Starter
Staging Lane

Joined: Feb 2010
Posts: 54
Likes: 1
From: Mississippi
Default
Where do I need to look for my MAP sensor? Near my throttle body?
Reply
0
Old Aug 31, 2015 | 10:39 PM
Share
  #15
91parkave's Avatar
91parkave
Moderator
15 Year Member
iTrader: (4)

Joined: Feb 2008
Posts: 2,079
Likes: 9
From: Arizona
Default
Just leave it where it's at and plug the other port
Reply
0
Old Sep 1, 2015 | 07:39 AM
Share
  #16
rottonj's Avatar
rottonj
TECH Fanatic
15 Year Member
Photogenic
Photoriffic
Shutterbug
iTrader: (4)

Joined: Jul 2008
Posts: 1,403
Likes: 7
From: Connecticut
Default
Originally Posted by pigsticker



How long have you owned this car and is it throwing any codes or running rough? Seems odd that would be moved and also the vacuum line unhooked unless you did that?
Reply
0
Old Sep 1, 2015 | 09:20 AM
Share
  #17
pigsticker's Avatar
pigsticker
Thread Starter
Staging Lane

Joined: Feb 2010
Posts: 54
Likes: 1
From: Mississippi
Default
I took the vacuum line off when I was changing valve cover gaskets, plugs and wires. I got it in March and drove it home about 250 miles and did not have any codes to come up.
Reply
0
Old Sep 1, 2015 | 09:42 AM
Share
  #18
rottonj's Avatar
rottonj
TECH Fanatic
15 Year Member
Photogenic
Photoriffic
Shutterbug
iTrader: (4)

Joined: Jul 2008
Posts: 1,403
Likes: 7
From: Connecticut
Default
I guess just look around and locate the map sensor, it has to be somewhere . Has to have a harness for it in that general area?
Reply
0
Old Sep 1, 2015 | 09:58 AM
Share
  #19
Zmg00camaross's Avatar
Zmg00camaross
10 Second Club
15 Year Member
Photogenic
Photoriffic
Liked
iTrader: (12)

Joined: Jun 2009
Posts: 5,069
Likes: 52
From: Missouri
Default
Looks like the map is on the R/S of the pic.
Reply
0
Old Sep 1, 2015 | 10:10 AM
Share
  #20
pigsticker's Avatar
pigsticker
Thread Starter
Staging Lane

Joined: Feb 2010
Posts: 54
Likes: 1
From: Mississippi
Default
I just checked and it's right behind the throttle body.
