Question tuning by lambda error

Reply Subscribe

Thread Tools

Search this Thread

Jun 19, 2015 | 12:03 PM

#21

edge04

Thread Starter

TECH Enthusiast

iTrader: (9)

Joined: Mar 2009

Posts: 626

Likes: 1

wow that function also throws odd readings. will have to mess with it.

my AFX box first shows 2.0 when it power ups then counts down. It displays 1.08 with key on and not started. I thought this was correct as it will never display 0 or 5 volts?

Quote:

Originally Posted by eaglegoat

Winner, winner, chicken dinner!

Bonus tip: I use 14.12 for e10 stoich

Edit: I just saw your other thread and that you're running an e38 controller. For the E38 and newer controllers commanded EQ is the same as commanded lambda. In that case you want to use
100*([AUX.20121]-[pid.68])/[pid.68]

Jun 19, 2015 | 01:12 PM

#22

eaglegoat

TECH Regular

Joined: Jun 2012

Posts: 414

Likes: 5

From: SV, AZ

Quote:

Originally Posted by edge04

It sends the voltage thru the signal to hpt. If you watch it count down from 20 to 0 at some point you should see 1 on your hpt lambda display. If you don't then most likely you have a bad ground.

Jun 19, 2015 | 04:08 PM

#23

edge04

Thread Starter

TECH Enthusiast

iTrader: (9)

Joined: Mar 2009

Posts: 626

Likes: 1

Quote:

Originally Posted by eaglegoat

It sends the voltage thru the signal to hpt. If you watch it count down from 20 to 0 at some point you should see 1 on your hpt lambda display. If you don't then most likely you have a bad ground.

all good, displaying the 1

but that function doesn't work, well doesn't have me commanding 1

Jun 19, 2015 | 04:20 PM

#24

eaglegoat

TECH Regular

Joined: Jun 2012

Posts: 414

Likes: 5

From: SV, AZ

Quote:

Originally Posted by edge04

all good, displaying the 1

but that function doesn't work, well doesn't have me commanding 1

What's the commanded eq when you're warmed up?

Jun 19, 2015 | 04:53 PM

#25

edge04

Thread Starter

TECH Enthusiast

iTrader: (9)

Joined: Mar 2009

Posts: 626

Likes: 1

Quote:

Originally Posted by eaglegoat

What's the commanded eq when you're warmed up?

key on engine off 15.xx
Engine on from -3.xx to 4.xx

I have Commanded EQ Ratio (SAE) as well as Air Fuel Ration Commanded Hi Res in my primary table

Jun 19, 2015 | 05:56 PM

#26

eaglegoat

TECH Regular

Joined: Jun 2012

Posts: 414

Likes: 5

From: SV, AZ

Quote:

Originally Posted by edge04

key on engine off 15.xx
Engine on from -3.xx to 4.xx

I have Commanded EQ Ratio (SAE) as well as Air Fuel Ration Commanded Hi Res in my primary table

The eq ratio, [pid.68], is showing up 15.xx or -3.xx to 4.xx? Something is broken.

Jun 19, 2015 | 06:21 PM

#27

edge04

Thread Starter

TECH Enthusiast

iTrader: (9)

Joined: Mar 2009

Posts: 626

Likes: 1

almost like its displaying A/F

here is a quick log with the key on engine off

Attached Files

Test.hpl (85.7 KB, 41 views)

Jun 19, 2015 | 06:23 PM

#28

edge04

Thread Starter

TECH Enthusiast

iTrader: (9)

Joined: Mar 2009

Posts: 626

Likes: 1

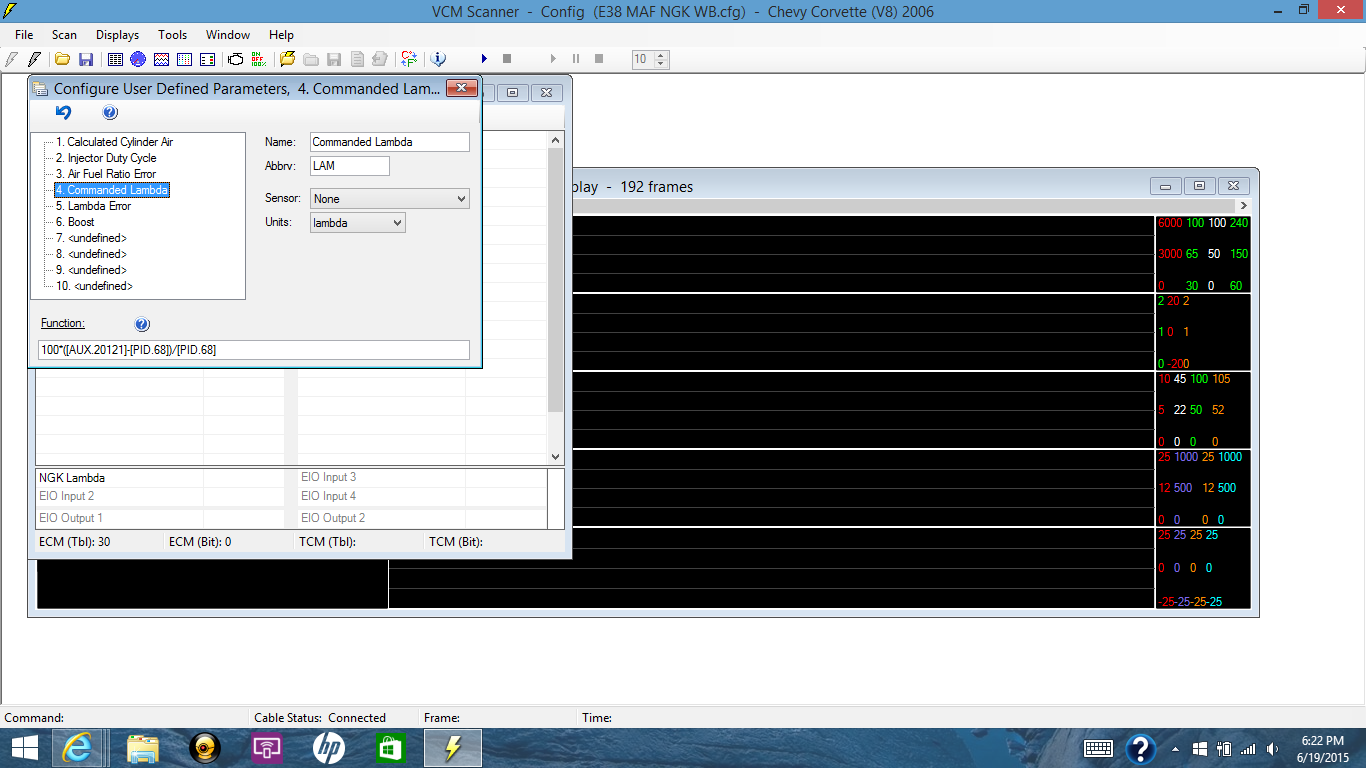

function

LS1 Tech Stories

The Best V8 Stories One Small Block at Time

Amazing '71 Camaro Restomod Is Modern Muscle Car Under the Skin

Verdad Gallardo

6 Common C5 Corvette Failures and What's Involved In Repairing Them

Pouria Savadkouei

Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph

Verdad Gallardo

Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked

Pouria Savadkouei

Top 10 Most Powerful Chevy Trucks Ever Made!

Hennessey's New Supercharged Silverado ZR2 Has 700 HP

Verdad Gallardo

Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes

Verdad Gallardo

Awesome K5 Blazer Restomod Comes With C7 Corvette Power

Verdad Gallardo

10 Camaros You Should Never Buy

10 LS Engine Myths That Refuse to Die

Verdad Gallardo

Jun 19, 2015 | 08:12 PM

#29

eaglegoat

TECH Regular

Joined: Jun 2012

Posts: 414

Likes: 5

From: SV, AZ

Quote:

Originally Posted by edge04

almost like its displaying A/F

here is a quick log with the key on engine off

I'm at work. I'll check this out later.

Jun 19, 2015 | 08:13 PM

#30

eaglegoat

TECH Regular

Joined: Jun 2012

Posts: 414

Likes: 5

From: SV, AZ

Quote:

Originally Posted by edge04

function

That function is showing lambda error.

Jun 19, 2015 | 10:27 PM

#31

edge04

Thread Starter

TECH Enthusiast

iTrader: (9)

Joined: Mar 2009

Posts: 626

Likes: 1

Quote:

Originally Posted by eaglegoat

That function is showing lambda error.

ok. I thought you were suggesting I change my function for commanded lambda from [PID.6001]/14.20 to something else. But now I'm guessing you are suggesting I change my lambda error function??

Jun 20, 2015 | 01:27 AM

#32

eaglegoat

TECH Regular

Joined: Jun 2012

Posts: 414

Likes: 5

From: SV, AZ

Quote:

Originally Posted by edge04

ok. I thought you were suggesting I change my function for commanded lambda from [PID.6001]/14.20 to something else. But now I'm guessing you are suggesting I change my lambda error function??

The lambda error function you showed in the picture is correct.

On a gen 3 commanded lambda is (1/[pid.6010]) on an e40 it's (1/[pid.68]) and on e38/e67+ it's just [pid.68].

Jun 20, 2015 | 10:30 AM

#33

edge04

Thread Starter

TECH Enthusiast

iTrader: (9)

Joined: Mar 2009

Posts: 626

Likes: 1

Quote:

Originally Posted by eaglegoat

The lambda error function you showed in the picture is correct.

On a gen 3 commanded lambda is (1/[pid.6010]) on an e40 it's (1/[pid.68]) and on e38/e67+ it's just [pid.68].

Got it. All set

Been tuning the VVE with bluecat and also using a COS with real VE. I notice that I can change the MAP axis points but not the MAF on the COS. Not a big deal just a little more work is all.

Thanks!

Reply Subscribe
