clocking the blower (Procharger F1-A)

Reply

Thread Tools Search this Thread
Old 04-03-2008, 09:07 PM   #1
Staging Lane
Garage is empty, add now

01red28's Avatar

Trader Rating: 24
Join Date: Jun 2005
Location: Springfield,MO
Posts: 97
Default clocking the blower (Procharger F1-A)

How do I know if my blower is clocked right for a F-body I'm going to mount this thing real soon and I don't wont to do any damage to it!

Last edited by 01red28; 04-03-2008 at 10:04 PM..
01red28 is offline   Reply With Quote
Old 04-03-2008, 10:01 PM   #2
TECH Fanatic
Garage is empty, add now

lmt0705's Avatar

Trader Rating: 7
Join Date: Apr 2006
Location: buffalo NY
Posts: 1,035
Default

if its not clocked correctly the outlet will not be pointing down and facing the passenger side, it also wont fit past the radiator if its off a lot
__________________
R.I.P 99 Z28- 408 iorn block, callies crank and rods, weisco pistons, ETP 245 heads, F1A procharger and front mount intercooler, meth injection, rossler 4l80 with a brake, midwest convertor feeding a moser 9in. rear. building a 00 TA caged. with some crazy paint!
lmt0705 is offline   Reply With Quote
Old 04-03-2008, 10:16 PM   #3
Staging Lane
Garage is empty, add now

01red28's Avatar

Trader Rating: 24
Join Date: Jun 2005
Location: Springfield,MO
Posts: 97
Default

so if its in the bracket and facing the passenger side and down it clocked right?

I don’t have to take the casing apart to check for a gear to be in the right place then maybe I miss under stood what clocking the blower means.
01red28 is offline   Reply With Quote
Old 04-04-2008, 05:00 AM   #4
EPP
FormerVendor
Garage is empty, add now

Trader Rating: 22
Join Date: Mar 2003
Posts: 13,079
Default

Quote:
Originally Posted by 01red28 View Post
so if its in the bracket and facing the passenger side and down it clocked right?

I donít have to take the casing apart to check for a gear to be in the right place then maybe I miss under stood what clocking the blower means.
The compressor housing can be rotated 360 degrees, but the oil slinger has to remain at the bottom of the blower. Check out this link.
http://www.exoticperformanceplus.com...html?item=1227 Bob
EPP is offline   Reply With Quote
Old 04-04-2008, 08:24 PM   #5
Staging Lane
Garage is empty, add now

01red28's Avatar

Trader Rating: 24
Join Date: Jun 2005
Location: Springfield,MO
Posts: 97
Default

Hey Bob can you just look at it with your x-ray vision and tell me if its clocked right because I really don’t wont to take this thing apart!

is there anything just by looking at it that could tell you if it clocked right.

Click the image to open in full size.

Click the image to open in full size.


Click the image to open in full size.
01red28 is offline   Reply With Quote
Old 04-04-2008, 08:32 PM   #6
On The Tree
Garage is empty, add now

z28boy's Avatar

Trader Rating: 2
Join Date: Apr 2004
Location: grandrapids mi
Posts: 194
Send a message via Yahoo to z28boy
Default

That might be hard to tell without it being on the car.
__________________
98 Camaro, STOCK 346,Afr225 72cc heads,comp 224/228 581lift 114lobe,moser12bolt 373 gears, Slp3/4long tubes,borla,Q1Rseries,LS6intake,4l80,PY3600, Procharger F1A.
z28boy is offline   Reply With Quote
Old 04-05-2008, 06:42 AM   #7
TECH Fanatic
Garage is empty, add now

forcd ind's Avatar

Trader Rating: 2
Join Date: Sep 2007
Location: woodbine, md
Posts: 1,948
Default

on a self contained oil model, the drain plug should be facing 6' oclock-this sup. places the oil slinger in the proper position-the outer intake housing can be rotated to any position, by loosing the screws and relocating them if nessary-i like to use a bit of anti seize bet. the housing if a lot of rotating is gonna be done, or it can bind up
forcd ind is offline   Reply With Quote
Old 04-05-2008, 09:33 AM   #8
Staging Lane
Garage is empty, add now

01red28's Avatar

Trader Rating: 24
Join Date: Jun 2005
Location: Springfield,MO
Posts: 97
Default

I understands that the drain pug needs to be at the bottom and that the oil slinger needs to be in the A position but I donít know how to get the gear box apart to make sure that its in the A position.
I took the bolts out of the back but its still holds together tight




Quote:
Originally Posted by forcd ind View Post
on a self contained oil model, the drain plug should be facing 6' oclock-this sup. places the oil slinger in the proper position-the outer intake housing can be rotated to any position, by loosing the screws and relocating them if nessary-i like to use a bit of anti seize bet. the housing if a lot of rotating is gonna be done, or it can bind up
01red28 is offline   Reply With Quote
Old 04-05-2008, 10:14 AM   #9
LS1TECH Sponsor
Garage is empty, add now

Jon@BruteSpeed's Avatar

Trader Rating: 3
Join Date: Mar 2006
Posts: 608
Default

Quote:
Originally Posted by 01red28 View Post
Hey Bob can you just look at it with your x-ray vision and tell me if its clocked right because I really donít wont to take this thing apart!

is there anything just by looking at it that could tell you if it clocked right.

Click the image to open in full size.

Click the image to open in full size.


Click the image to open in full size.

No, it's not quite right. Loosen the allen head bolts up and it will rotate around. You may have to take one allen head bolt out and place it on the other side as you clock it around. Take a look at bob's car and you can see how it should be clocked. http://www.exoticperformanceplus.com...Car.php?car=12

And make sure you are loosening the bolts that are holding the gear box to the squirrel cage. The lower set of bolts on your bottom picture. Hope this helps.

Jon
__________________
95 Pontiac Formula- Stock engine with ATI Procharger, Moser 12 bolt w/4:30 gears, Rossler trans, Neil Chance 4000 stall, M/T ET streets, 10.914@ 121.90mph, 1.452 60ft. GMHTP November 2010 Feature Car. Check it out at:
http://www.gmhightechperformance.com...a/viewall.html
http://www.youtube.com/watch?v=abZ1z...ature=youtu.be
Jon@BruteSpeed is offline   Reply With Quote
Old 04-05-2008, 12:43 PM   #10
Staging Lane
Garage is empty, add now

01red28's Avatar

Trader Rating: 24
Join Date: Jun 2005
Location: Springfield,MO
Posts: 97
Default

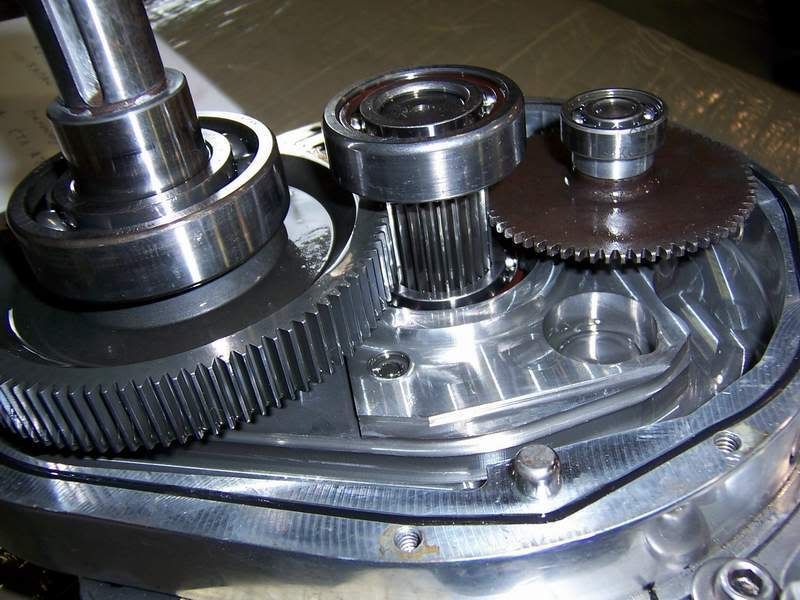

How do I get it taken apart to this piont to make sure that the oil slinger is in the right position. The gear casing does not wont to come apart is there something that I am missing that I need to do? My oil drain is in the right place but I dont wont to risk some just moving it over and not the slinger.

Click the image to open in full size.

Last edited by 01red28; 04-05-2008 at 12:48 PM..
01red28 is offline   Reply With Quote
Old 04-05-2008, 12:55 PM   #11
LS1TECH Sponsor
Garage is empty, add now

Jon@BruteSpeed's Avatar

Trader Rating: 3
Join Date: Mar 2006
Posts: 608
Default

Quote:
Originally Posted by 01red28 View Post
How do I get it taken apart to this piont to make sure that the oil slinger is in the right position. The gear casing does not wont to come apart is there something that I am missing that I need to do? My oil drain is in the right place but I dont wont to risk some just moving it over and not the slinger.

Click the image to open in full size.

No No No......you took the wrong screws off!!! Put that thing back together and loosen the other ones around the base.
__________________
95 Pontiac Formula- Stock engine with ATI Procharger, Moser 12 bolt w/4:30 gears, Rossler trans, Neil Chance 4000 stall, M/T ET streets, 10.914@ 121.90mph, 1.452 60ft. GMHTP November 2010 Feature Car. Check it out at:
http://www.gmhightechperformance.com...a/viewall.html
http://www.youtube.com/watch?v=abZ1z...ature=youtu.be
Jon@BruteSpeed is offline   Reply With Quote
Old 04-05-2008, 01:08 PM   #12
TECH Fanatic
Garage is empty, add now

forcd ind's Avatar

Trader Rating: 2
Join Date: Sep 2007
Location: woodbine, md
Posts: 1,948
Default

holy crap, batman-put that thing back together-when its mounted in the brackets, and the drain plug is at 6 o"clock, the slinger (pump) is in the correct position-if it was bought for a spec. appl., the drain plug should be in the correct position when installed in the brackets-the only thing you should have to do is rotate the outlet housing (where the hose connects to the i/c, intake, or whatever you are running) to get it pointing where you want it
forcd ind is offline   Reply With Quote
Old 04-05-2008, 01:16 PM   #13
Staging Lane
Garage is empty, add now

01red28's Avatar

Trader Rating: 24
Join Date: Jun 2005
Location: Springfield,MO
Posts: 97
Default

this is not my blower this is a D1 blower I need to take it down to this point to make sure that the oil slinger is in the right place but I cant seem to get the casing apart Im guessing that its either the dowl pins or the bearing that are hanging up in the top side of the gear box


Quote:
Originally Posted by silver95 View Post
No No No......you took the wrong screws off!!! Put that thing back together and loosen the other ones around the base.
01red28 is offline   Reply With Quote
Old 04-05-2008, 01:25 PM   #14
EPP
FormerVendor
Garage is empty, add now

Trader Rating: 22
Join Date: Mar 2003
Posts: 13,079
Question

Quote:
Originally Posted by 01red28 View Post
this is not my blower this is a D1 blower I need to take it down to this point to make sure that the oil slinger is in the right place but I cant seem to get the casing apart Im guessing that its either the dowl pins or the bearing that are hanging up in the top side of the gear box
Geez, you had me sweating bullets there! lol

What application did you buy this blower for? Bob
EPP is offline   Reply With Quote
Old 04-05-2008, 01:47 PM   #15
Staging Lane
Garage is empty, add now

01red28's Avatar

Trader Rating: 24
Join Date: Jun 2005
Location: Springfield,MO
Posts: 97
Default

The person that bought this blower new from what I understand ran it on a 02 TA with a 408 for less then a 1000 miles so theoretically everything should be fine, even the drain plug is in the A position. But I wont to double check the oil slinger is in the A position as well

Quote:
Originally Posted by Exotic Performance Plus View Post
Geez, you had me sweating bullets there! lol

What application did you buy this blower for? Bob
01red28 is offline   Reply With Quote
Old 04-05-2008, 01:57 PM   #16
EPP
FormerVendor
Garage is empty, add now

Trader Rating: 22
Join Date: Mar 2003
Posts: 13,079
Default

Quote:
Originally Posted by 01red28 View Post
The person that bought this blower new from what I understand ran it on a 02 TA with a 408 for less then a 1000 miles so theoretically everything should be fine, even the drain plug is in the A position. But I wont to double check the oil slinger is in the A position as well

I wouldn't take it apart to check the slinger position. You can call in the serial number to ProCharger at 913 338-2886 to verify how it is positioned. Bob
EPP is offline   Reply With Quote
Old 04-05-2008, 02:12 PM   #17
Staging Lane
Garage is empty, add now

01red28's Avatar

Trader Rating: 24
Join Date: Jun 2005
Location: Springfield,MO
Posts: 97
Default

great!! Thanks Bob I will give them a call if they tell me it left the factory clocked in a different position then I will worry about taking it apart. I'm guessing its to much of a pain to worry about it till I get some more info that leads me to believe that its clocked wrong.


Quote:
Originally Posted by Exotic Performance Plus View Post
I wouldn't take it apart to check the slinger position. You can call in the serial number to ProCharger at 913 338-2886 to verify how it is positioned. Bob
01red28 is offline   Reply With Quote
Old 04-07-2008, 09:38 AM   #18
10 Second Club
Garage is empty, add now

Ponyhntr's Avatar

Trader Rating: 9
Join Date: Oct 2002
Location: Lee's Summit, MO (KC)
Posts: 1,395
Default

As long as the drain plug is at 6 o'clock when mounted to the engine, the slinger is clocked correctly.

DO NOT TAKE THE BLOWER APART!!!
__________________
5.50@131.50 1.30 60' @ 3450 lbs on the little 26x8.5"!
Ponyhntr is offline   Reply With Quote
Old 04-13-2008, 11:34 PM   #19
Launching!
Garage is empty, add now

MDoe8's Avatar

Trader Rating: 3
Join Date: Jun 2005
Location: Evans, CO
Posts: 254
Send a message via AIM to MDoe8
Default

How much does it cost to get a blowers oil slinger relocated? Does Bob take care of this or do you go straight to procharger?
__________________
'99 3000gt
MDoe8 is offline   Reply With Quote
Old 04-14-2008, 04:30 AM   #20
EPP
FormerVendor
Garage is empty, add now

Trader Rating: 22
Join Date: Mar 2003
Posts: 13,079
Thumbs up

Quote:
Originally Posted by MDoe8 View Post
How much does it cost to get a blowers oil slinger relocated? Does Bob take care of this or do you go straight to procharger?
We send them in to ProCharger. Bob
