Ai 200cc CNC H/C Dyno, A4, 425rwhp
Ai 200cc CNC H/C Dyno, A4, 425rwhp Gentlemen,
A customer decided to share some of his dyno results with us, so we made some graphs for you guys. It is an excellent example of what this setup will typically do when properly setup and tuned. He is running our most common daily driver stock short block top-end which is comprised of the following:
Ai 200cc CNC'd GM LT1 heads
Ai custom HR (22Xdeg)
Stock GM Manifold
With meticulous assembly and adjustment from Mike Harris at B-Body Performance it was a foregone conclusion that the car would perform well. The dyno #'s are through a 4l60E w/ an ATI converter, and an effective gear ratio of ~4.10. Naturally, the car has typical bolt on parts: 58mm TB, ewp, etc. This cam is mild enough that when combined with our valve train it will remain under control beyond 7000rpm. In this example, the dyno operator simply got out of the throttle around 6600rpm after peak power (at only 6400rpm).

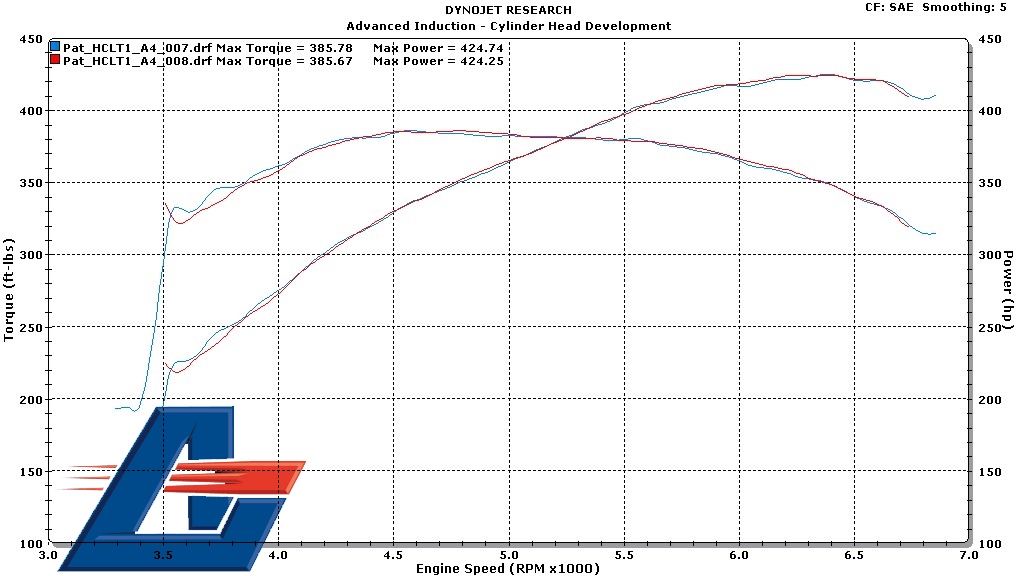

SAE #'s
Since a few like to put out the higher STD correction, we include it for the sake of comparison.

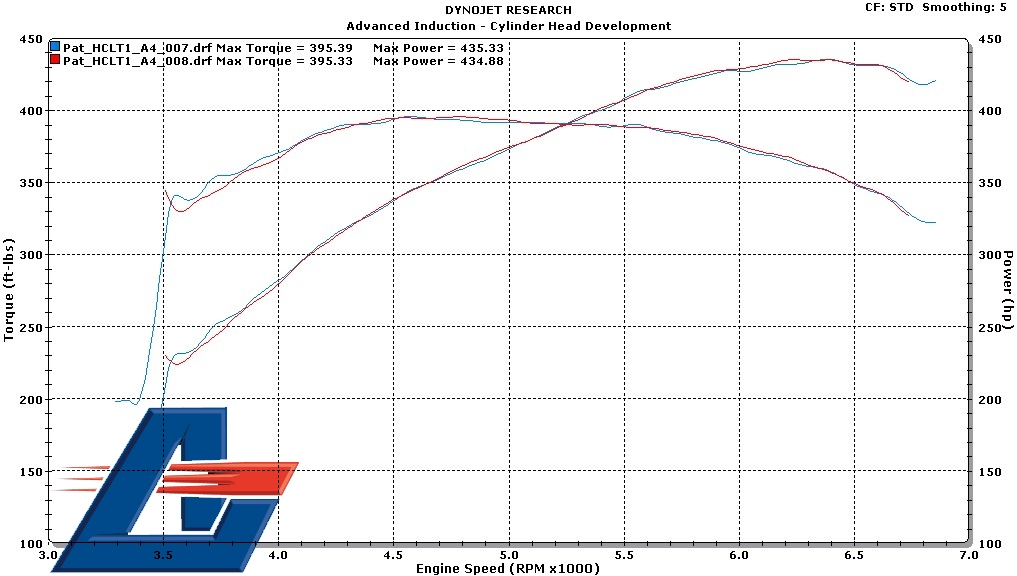

STD #'s
We'll post a thread about this car in the near future.
Thanks guys!
A customer decided to share some of his dyno results with us, so we made some graphs for you guys. It is an excellent example of what this setup will typically do when properly setup and tuned. He is running our most common daily driver stock short block top-end which is comprised of the following:
Ai 200cc CNC'd GM LT1 heads
Ai custom HR (22Xdeg)
Stock GM Manifold
With meticulous assembly and adjustment from Mike Harris at B-Body Performance it was a foregone conclusion that the car would perform well. The dyno #'s are through a 4l60E w/ an ATI converter, and an effective gear ratio of ~4.10. Naturally, the car has typical bolt on parts: 58mm TB, ewp, etc. This cam is mild enough that when combined with our valve train it will remain under control beyond 7000rpm. In this example, the dyno operator simply got out of the throttle around 6600rpm after peak power (at only 6400rpm).
SAE #'s
Since a few like to put out the higher STD correction, we include it for the sake of comparison.
STD #'s
We'll post a thread about this car in the near future.
Thanks guys!
Trending Topics
Incredible numbers especially for the A4.
That said, flame suit now on. I find these charts to be of little value (for comparitive purposes) because nearly everybody who runs AI setups refuses to disclose their cam specs. This makes it impractical to compare one guys setup to the next which is the usual intent, when one posts a chart to the board.
I know I am going to here the "we have to protect our investment", and "we don't want to be everybody's cam designer for free" argument. I believe half the process of building a good motor is the parts recipe and the other half is excellent craftsmanship. If the craftsmanship of this motor is what is really shining through here, I applaud the builder big time.
Again that said, I find it curious that a stock SB LT1, with the A4, with a stall, can make 425 RWHP corrected to SAE with a 22x cam. The statement that the dyno operator got out of it at 6400RPM and it was implied that there was plenty left just reinforces my last statement.
Obviously, these numbers are well above the frey for a 22x cam. I will fully admit that AI has some bad *** stuff, but at some point the numbers become so impressive that one should properly question them and IMHO, this is one of those cases. I am not calling BS here, but I think there is a wild card in this setup or measurement. If AI can prove with other customers using the setup that this is "typical", as the OP stated, hats off to AI.
FWIW, I would have have made this same statement if one of LE's guys posted the same information. This is not intended to be turned into another **** sling.
That said, flame suit now on. I find these charts to be of little value (for comparitive purposes) because nearly everybody who runs AI setups refuses to disclose their cam specs. This makes it impractical to compare one guys setup to the next which is the usual intent, when one posts a chart to the board.
I know I am going to here the "we have to protect our investment", and "we don't want to be everybody's cam designer for free" argument. I believe half the process of building a good motor is the parts recipe and the other half is excellent craftsmanship. If the craftsmanship of this motor is what is really shining through here, I applaud the builder big time.
Again that said, I find it curious that a stock SB LT1, with the A4, with a stall, can make 425 RWHP corrected to SAE with a 22x cam. The statement that the dyno operator got out of it at 6400RPM and it was implied that there was plenty left just reinforces my last statement.
Obviously, these numbers are well above the frey for a 22x cam. I will fully admit that AI has some bad *** stuff, but at some point the numbers become so impressive that one should properly question them and IMHO, this is one of those cases. I am not calling BS here, but I think there is a wild card in this setup or measurement. If AI can prove with other customers using the setup that this is "typical", as the OP stated, hats off to AI.
FWIW, I would have have made this same statement if one of LE's guys posted the same information. This is not intended to be turned into another **** sling.
