Vette c5 4l60e for LS swap
Thread Starter
12 Second Club
Joined: Sep 2008
Posts: 158
Likes: 0
From: Denmark
Vette c5 4l60e for LS swap So. No one on the great mighty internet has been able to tell me how to convert an automatic 4l60e out of a c5 corvette to be bolted on to an engine like in a camaro for instance.
Can you tell me?
It seems like no one knows. Everyone I have asked or every post i have been able to find for the last few weeks say the same. "dont do it, it's too costly"
Yes i might be in USA. But until anyone can give me a clue why, it's hard to say.
The way I see it I need a bellhousing, a tailshaft and some input/output shafts?

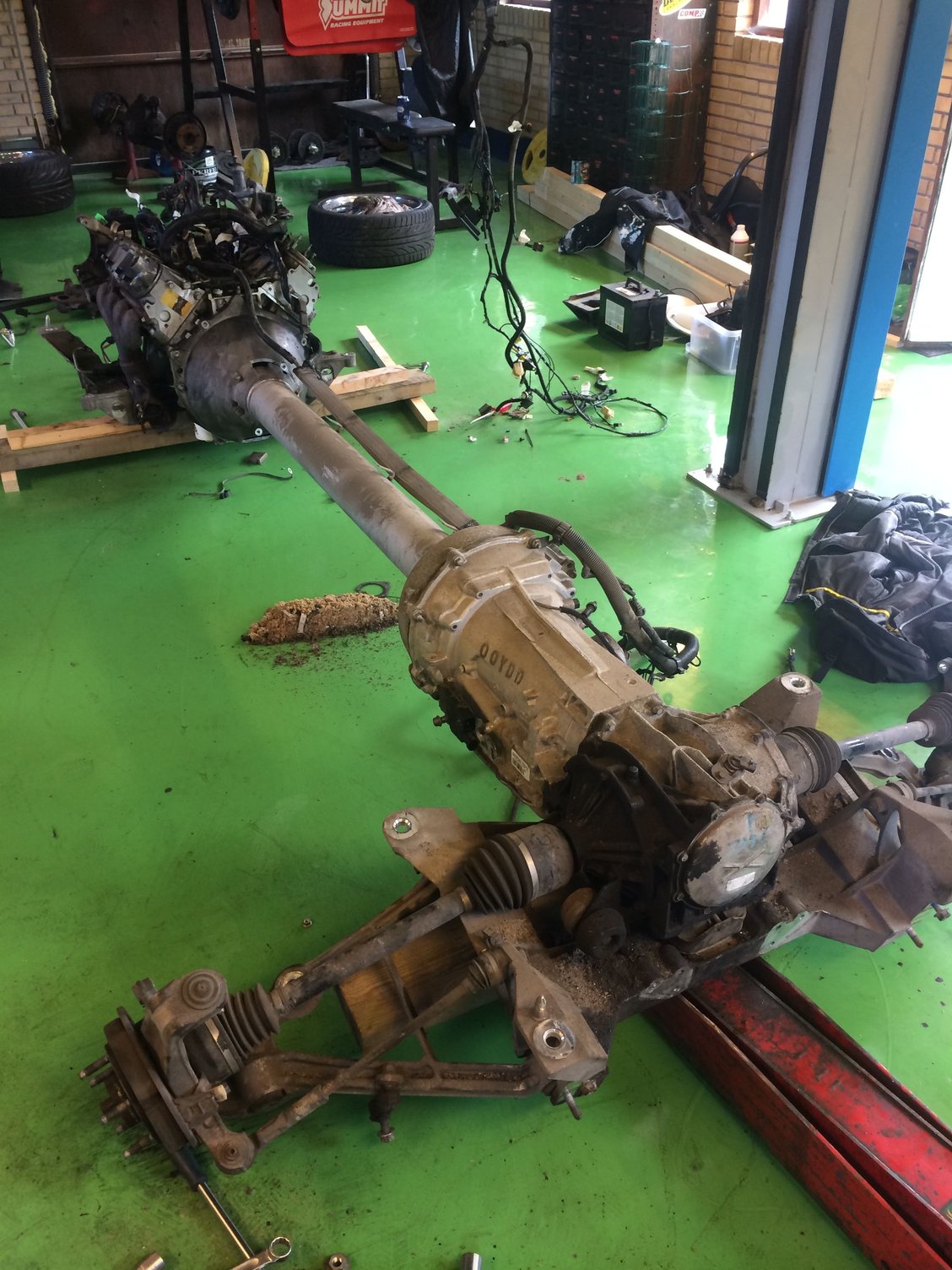

Anyway, you guys are my last hope. I really would like to know what's involved in the conversion as i have just parted out a 98 c5 vette with a newly rebuilt trans. And where i live, due to taxes fees and customs, whatever i find online in dollars i have to multiply by 10 before it actually clears the custom and lands at my doorstep.
So please, help me! Tell me if i can scrounge ebay and order "a few parts" and do the conversion. I've rebuilt th350's/400's and my brother just rebuilt his 4l60e so he can help me during the conversion..
If it actually turns out it's not cost effective, then can i atleast use the converter? Or any other parts from it.. The servo? There are very few c5's in my country so selling it will be difficult. Only hotrodders would be interested and those are also few and far between.
Thanks in advance. Tim
Can you tell me?
It seems like no one knows. Everyone I have asked or every post i have been able to find for the last few weeks say the same. "dont do it, it's too costly"
Yes i might be in USA. But until anyone can give me a clue why, it's hard to say.
The way I see it I need a bellhousing, a tailshaft and some input/output shafts?
Anyway, you guys are my last hope. I really would like to know what's involved in the conversion as i have just parted out a 98 c5 vette with a newly rebuilt trans. And where i live, due to taxes fees and customs, whatever i find online in dollars i have to multiply by 10 before it actually clears the custom and lands at my doorstep.
So please, help me! Tell me if i can scrounge ebay and order "a few parts" and do the conversion. I've rebuilt th350's/400's and my brother just rebuilt his 4l60e so he can help me during the conversion..
If it actually turns out it's not cost effective, then can i atleast use the converter? Or any other parts from it.. The servo? There are very few c5's in my country so selling it will be difficult. Only hotrodders would be interested and those are also few and far between.
Thanks in advance. Tim
FormerVendor
Joined: Jan 2014
Posts: 323
Likes: 3
I think the easiest way would be to run a dished LS aftermarket flex plate with the 10.75" bolt pattern and use a pilot extender to properly engage the crank. They make kits for this on ebay for cheap. Then I'm pretty sure you just need a bell housing from a pre LS style 4l60. This would be like 97 f body, 97, 98, tahoe, blazers into the early 2000's etc. Be sure not to buy the LS bell housing as it is deeper and will cause major headache.
-Brian
-Brian
Thread Starter
12 Second Club
Joined: Sep 2008
Posts: 158
Likes: 0
From: Denmark
I think the easiest way would be to run a dished LS aftermarket flex plate with the 10.75" bolt pattern and use a pilot extender to properly engage the crank. They make kits for this on ebay for cheap. Then I'm pretty sure you just need a bell housing from a pre LS style 4l60. This would be like 97 f body, 97, 98, tahoe, blazers into the early 2000's etc. Be sure not to buy the LS bell housing as it is deeper and will cause major headache.
-Brian
-Brian
I thought only the LS engine style 4L60e's had a removeable bell housing? Do you mean tailshaft?
If so im thinking I still need a LS style bellhousing?
FormerVendor
Joined: Jan 2014
Posts: 323
Likes: 3
Most of the LT style of transmissions had the fixed bell housing, but the later model ones were removable. See examples in my above post.
Do NOT use an LS bell housing as this will mess with your clearances. These are deeper than the LT units.
-Brian
Do NOT use an LS bell housing as this will mess with your clearances. These are deeper than the LT units.
-Brian
Thread Starter
12 Second Club
Joined: Sep 2008
Posts: 158
Likes: 0
From: Denmark
Identifiable by the 12'o clock bolt hole im thinking..
Are the output shaft any longer than usual or can i buy a LS style 2wd tailshaft housing out of a GTO/FBODY for instance?
Trending Topics
FormerVendor
Joined: Jan 2014
Posts: 323
Likes: 3
The removable bell housing that you need will NOT have the 12 o'clock hole. It will bolt up to the LS1 just fine. Trust me on this and don't go with the LS bell housing even though that's the easier one to find and seems like the correct choice since the bolt pattern matches better.
I'm not sure about the output shafts/tailhousings. Maybe someone else can chime in there.
-Brian
I'm not sure about the output shafts/tailhousings. Maybe someone else can chime in there.
-Brian
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
Gas Monkey Built a 6-Wheel Ferrari Testarossa With a Corvette LT4 Engine
Verdad Gallardo
7 Most Reliable High-Performance Engines GM Has Ever Built
Verdad Gallardo
Amazing '71 Camaro Restomod Is Modern Muscle Car Under the Skin
Verdad Gallardo
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo Thread Starter
12 Second Club
Joined: Sep 2008
Posts: 158
Likes: 0
From: Denmark
Sorry. That was what i meant. It shouldnt have that bolt hole.
I appreciate all your help. It's worth alot to me. So thank you Brian. I will definitely look into your company when i need a converter.
/Tim
I appreciate all your help. It's worth alot to me. So thank you Brian. I will definitely look into your company when i need a converter.
/Tim
Thread Starter
12 Second Club
Joined: Sep 2008
Posts: 158
Likes: 0
From: Denmark
Moderator
Joined: Aug 2010
Posts: 7,323
Likes: 529
From: Ann Arbor, MI
To summarize the above, the 4L60E from a C5 Vette is an older "LT" style trans with a 298mm input shaft. As Brian explained, with an LT style bell housing, a pilot extender and a slight mod to the flexplate, it will bolt up to an LS engine.
I believe the output shaft should be just fine, but as Clinebarger (a pro) states, the case is different and a typical 6-bolt Camaro tail housing will not bolt up.
Clinebarger: Would an older 4 bolt tail housing bolt up?
To clear up a few details, the separate bell housing started in 1996 and all '96 and '97 4L60E are "LT" (298mm) style as the first year of "LS" (300mm) style was '98.
Unless Clinebarger has a better suggestion, you a non-Vette case. A bare case is cheap here, but obviously not by the time it is shipped to Denmark. Maybe a junkyard has an
older 4L60E with ruined internals.
I believe the output shaft should be just fine, but as Clinebarger (a pro) states, the case is different and a typical 6-bolt Camaro tail housing will not bolt up.
Clinebarger: Would an older 4 bolt tail housing bolt up?
To clear up a few details, the separate bell housing started in 1996 and all '96 and '97 4L60E are "LT" (298mm) style as the first year of "LS" (300mm) style was '98.
Unless Clinebarger has a better suggestion, you a non-Vette case. A bare case is cheap here, but obviously not by the time it is shipped to Denmark. Maybe a junkyard has an
older 4L60E with ruined internals.
TECH Fanatic
Joined: Jan 2015
Posts: 1,114
Likes: 33
From: Fort Worth, Texas
No, The Getrag Differential bolts to the rear of the case, And uses 2 Dowels to center the diff to the trans, No round register & square cut seal to seal & locate the tailhousing too the rear of the case, In fact a Corvette is DRY between the Trans & Diff complete with a "Drain Notch".
Even if a Adapter was machined, You would still have the issue of sealing the adapter to the Trans Case, There is no "Drain Back" hole to drain the ATF out of the Tailhousing back into the pan. I also doubt the Extension Bushing would oil correctly even with the Seal removed from the rear of the Case.
The Output Shaft is also different (Length), And that brings up the absents of a VSS Relutor.
A picture of the rear of the case, Arrows highlight the 2 locating dowel holes.
Even if a Adapter was machined, You would still have the issue of sealing the adapter to the Trans Case, There is no "Drain Back" hole to drain the ATF out of the Tailhousing back into the pan. I also doubt the Extension Bushing would oil correctly even with the Seal removed from the rear of the Case.
The Output Shaft is also different (Length), And that brings up the absents of a VSS Relutor.
A picture of the rear of the case, Arrows highlight the 2 locating dowel holes.
Thread Starter
12 Second Club
Joined: Sep 2008
Posts: 158
Likes: 0
From: Denmark
Glad i returned to read up on this. Several replies since i last checked in!
I ended up buying a cheap 4.3 v6 4l60e that may or may not run.. im thinking i was an idiot to sell that transmission with the remains of the car as i now dont have a donor transmission..
A guy stood me up twice, wasting 2 perfecly good sundays. So monday i called a guy that had lowballed me for the remains including the transmission and told him to come get it. I was furious.
Note to my self. Never make decisions when you're angry!
I ended up buying a cheap 4.3 v6 4l60e that may or may not run.. im thinking i was an idiot to sell that transmission with the remains of the car as i now dont have a donor transmission..
A guy stood me up twice, wasting 2 perfecly good sundays. So monday i called a guy that had lowballed me for the remains including the transmission and told him to come get it. I was furious.
Note to my self. Never make decisions when you're angry!
