4l80e question (overdrive sprag)
Thread Starter
On The Tree
Joined: Jul 2019
Posts: 164
Likes: 27

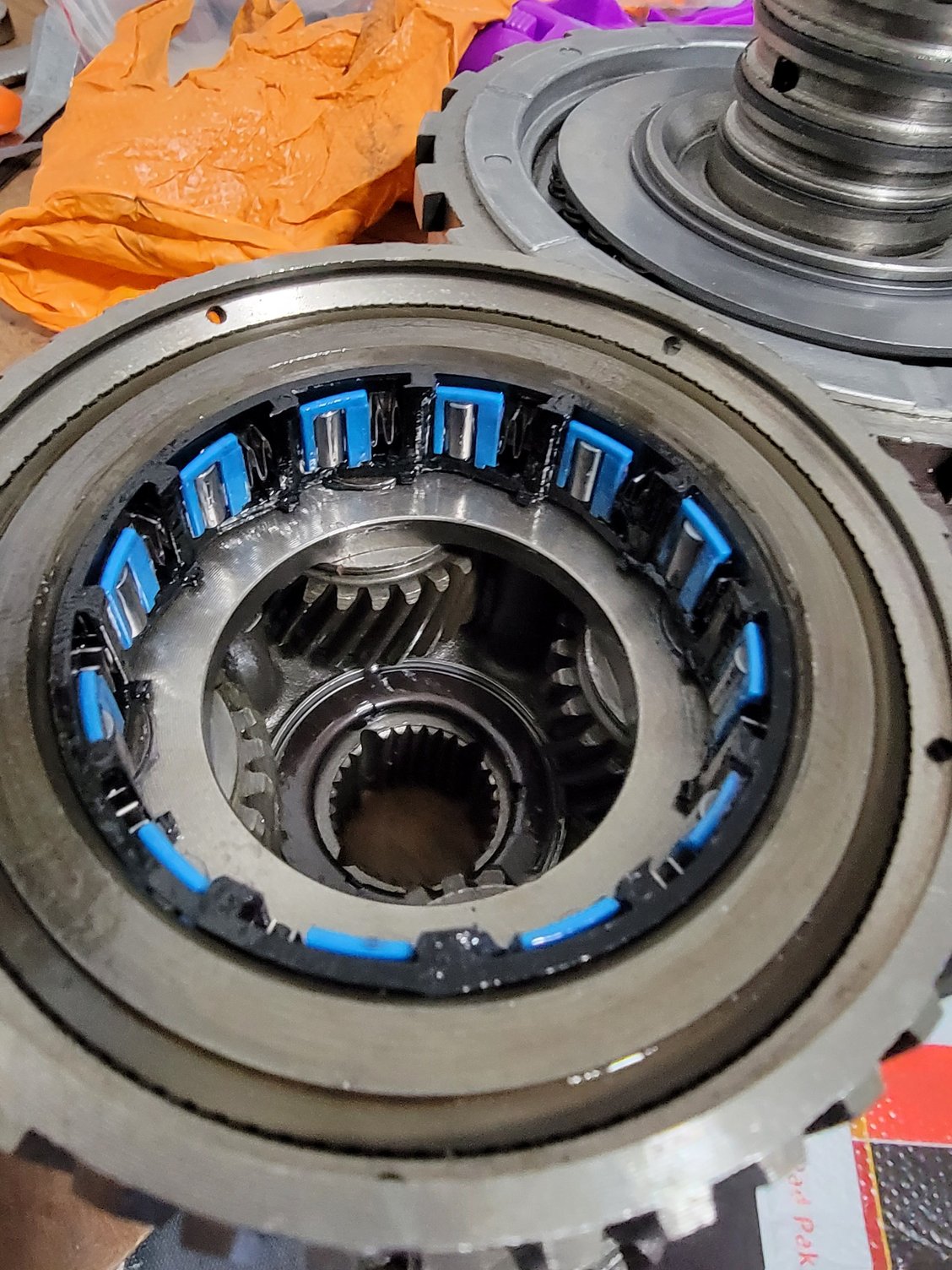

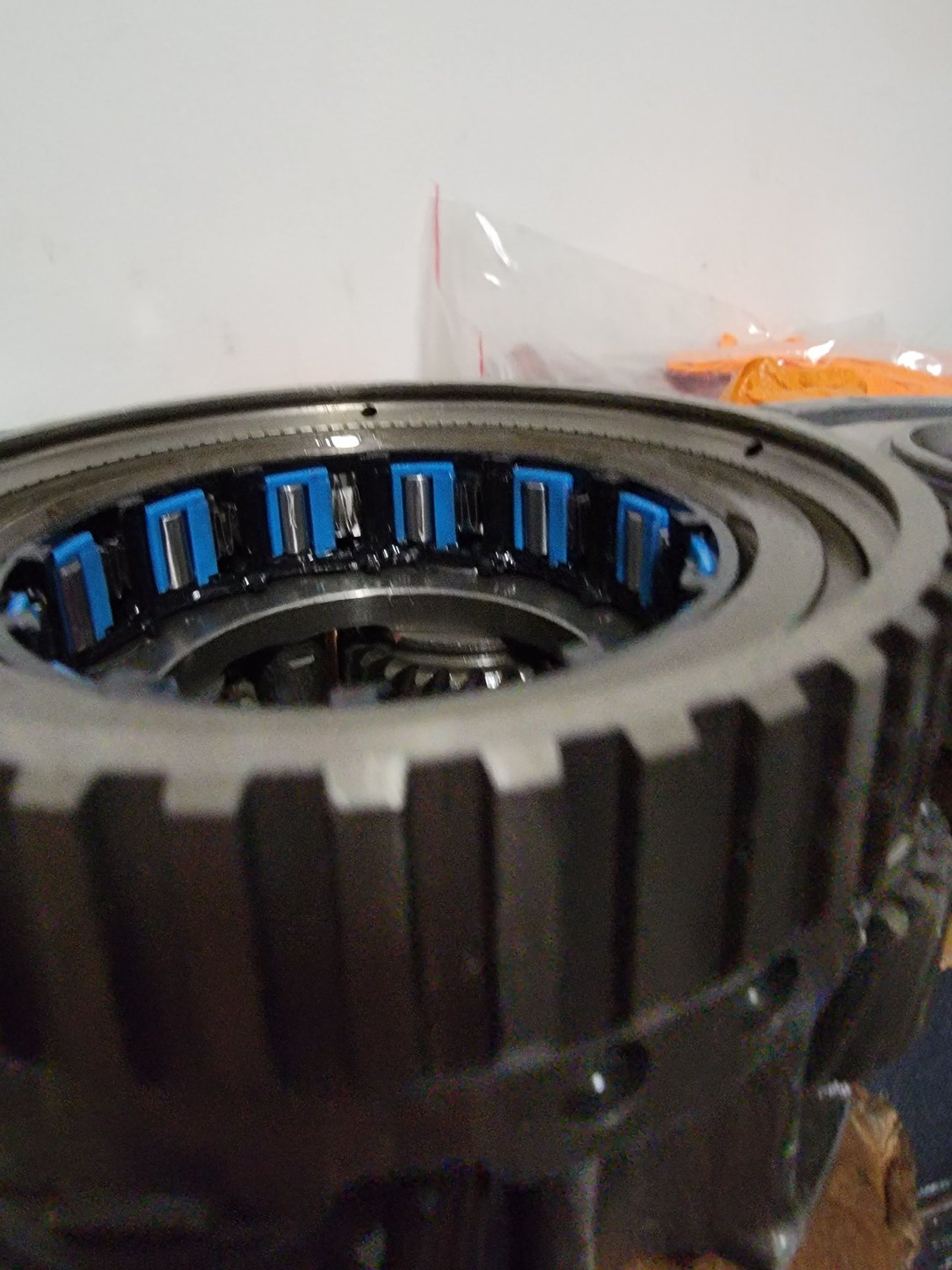

4l80e question (overdrive sprag) Ok just need some confirmation on the overdrive sprang, does is spin both directions or is it a one way sprag? I'm buttoning everything back up and notice the over drive plant spins freely both ways. The sprag is brand new. I couldn't upload the video keeps saying wrong format here goes the imgur url.
http://imgur.com/a/sDWqHKL
http://imgur.com/a/sDWqHKL
Last edited by LS480; Jun 28, 2021 at 07:17 AM. Reason: update to clickable link
Thread Starter
On The Tree
Joined: Jul 2019
Posts: 164
Likes: 27
Thread Starter
On The Tree
Joined: Jul 2019
Posts: 164
Likes: 27

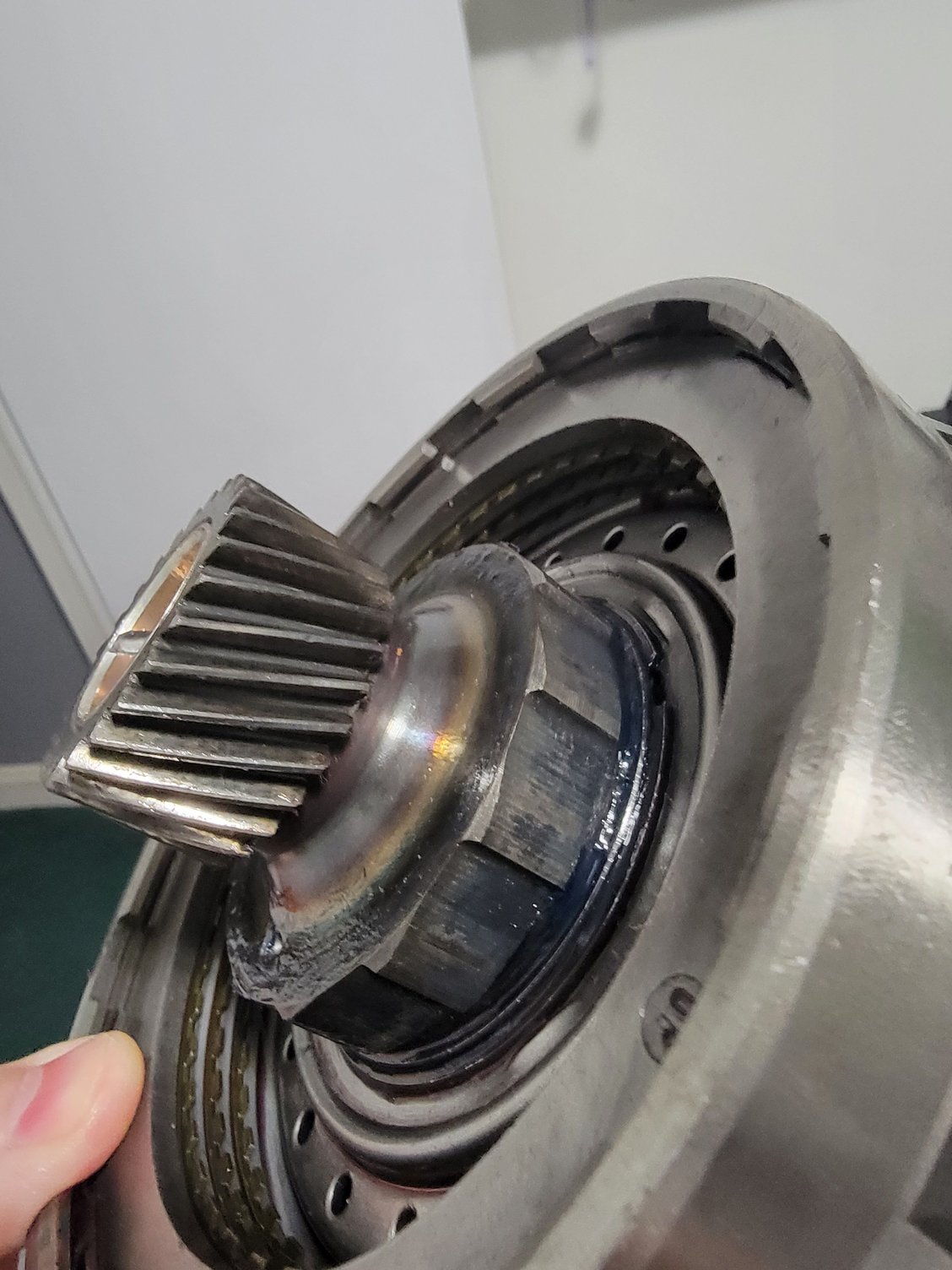

No its all (2003) from the same unit, im doing a ck performance master shift calibration kit , new clutches, steels, bushings, and bearings. I did have to disassemble the over drive planet (in video) to replace one of the bearings in it.
TECH Junkie
Joined: May 2012
Posts: 3,051
Likes: 716
From: Poplarville, MS
Op are you checking the sprag properly? In the video it looks like the lower part of the sparg race is just spinning in the clutch drum. So it is going to turn both ways because there is nothing to hold it. Shouldn't you hold that sprag race in one hand and turn the other race with the other hand? I don't know much about 4L80Es, but it doesn't look like it is being test correctly to me. If I am wrong just disregard.
Trending Topics
TECH Junkie
Joined: May 2012
Posts: 3,051
Likes: 716
From: Poplarville, MS
Op are you checking the sprag properly? In the video it looks like the lower part of the sparg race is just spinning in the clutch drum. So it is going to turn both ways because there is nothing to hold it. Shouldn't you hold that sprag race in one hand and turn the other race with the other hand? I don't know much about 4L80Es, but it doesn't look like it is being test correctly to me. If I am wrong just disregard.
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
Gas Monkey Built a 6-Wheel Ferrari Testarossa With a Corvette LT4 Engine
Verdad Gallardo
7 Most Reliable High-Performance Engines GM Has Ever Built
Verdad Gallardo
Amazing '71 Camaro Restomod Is Modern Muscle Car Under the Skin
Verdad Gallardo
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Thread Starter
On The Tree
Joined: Jul 2019
Posts: 164
Likes: 27
TECH Enthusiast
Joined: Jan 2019
Posts: 677
Likes: 490
From: Roxana, IL
the one way clutch itself appears to be upside down. I install the one way clutch into the overrun drum first. the internal notches of the one way will match the race. then install the planet over the drum and once it engages the one way it will only go one direction to engage all three frictions. the drum itself looks like an early version though, I may be mistaken. if it hasn't been replaced/changed you should be good.
Thread Starter
On The Tree
Joined: Jul 2019
Posts: 164
Likes: 27
the one way clutch itself appears to be upside down. I install the one way clutch into the overrun drum first. the internal notches of the one way will match the race. then install the planet over the drum and once it engages the one way it will only go one direction to engage all three frictions. the drum itself looks like an early version though, I may be mistaken. if it hasn't been replaced/changed you should be good.
TECH Junkie
Joined: Jun 2008
Posts: 3,203
Likes: 1,391
From: Nitro Alley

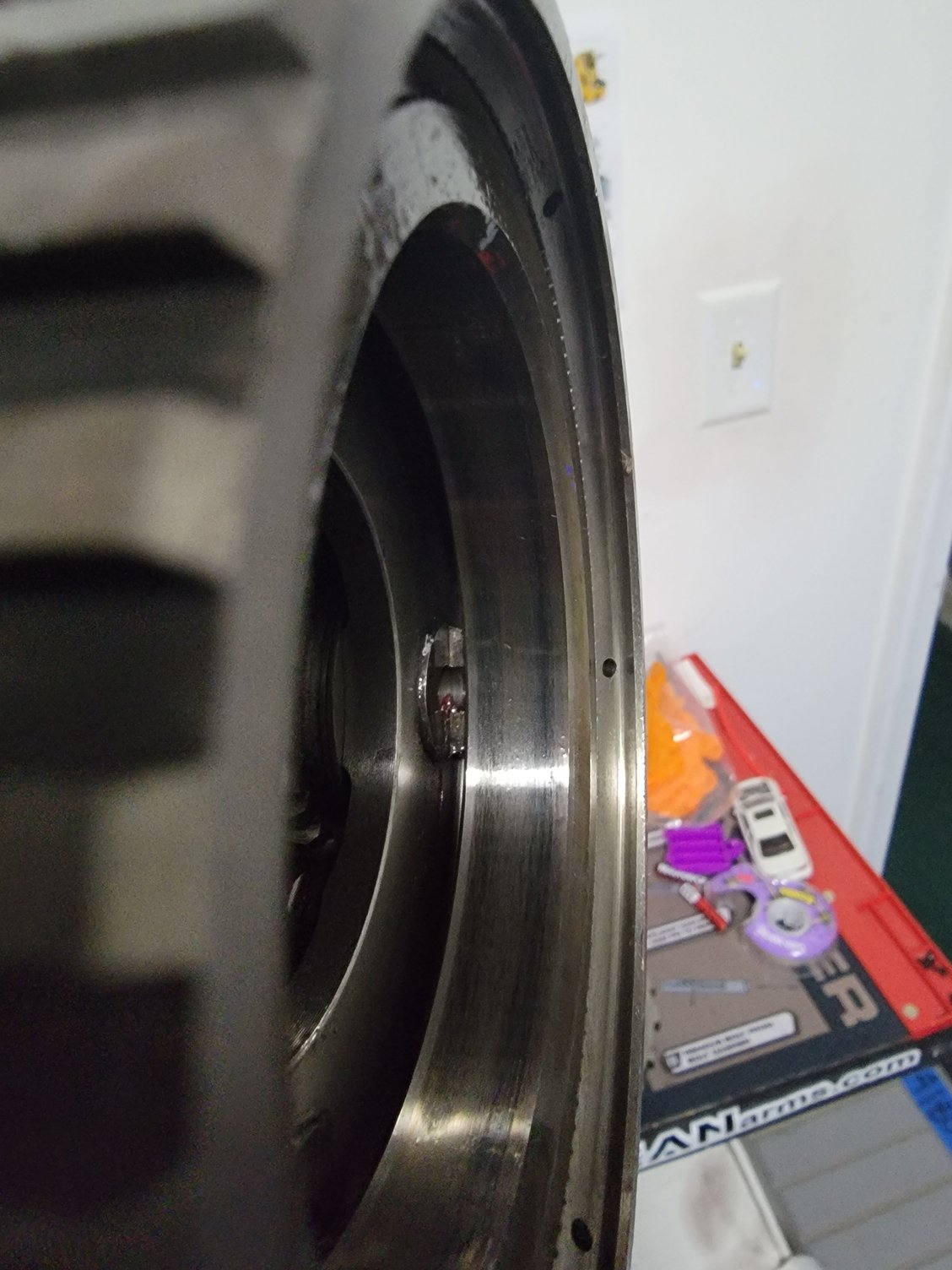

If you are asking about one of the Rollers from the One-Way Roller-Clutch...
Then it is fine.
The Rollers can fall out when the One-Way Roller-Clutch is not assembled in between the Races.
Then it is fine.
The Rollers can fall out when the One-Way Roller-Clutch is not assembled in between the Races.
Thread Starter
On The Tree
Joined: Jul 2019
Posts: 164
Likes: 27

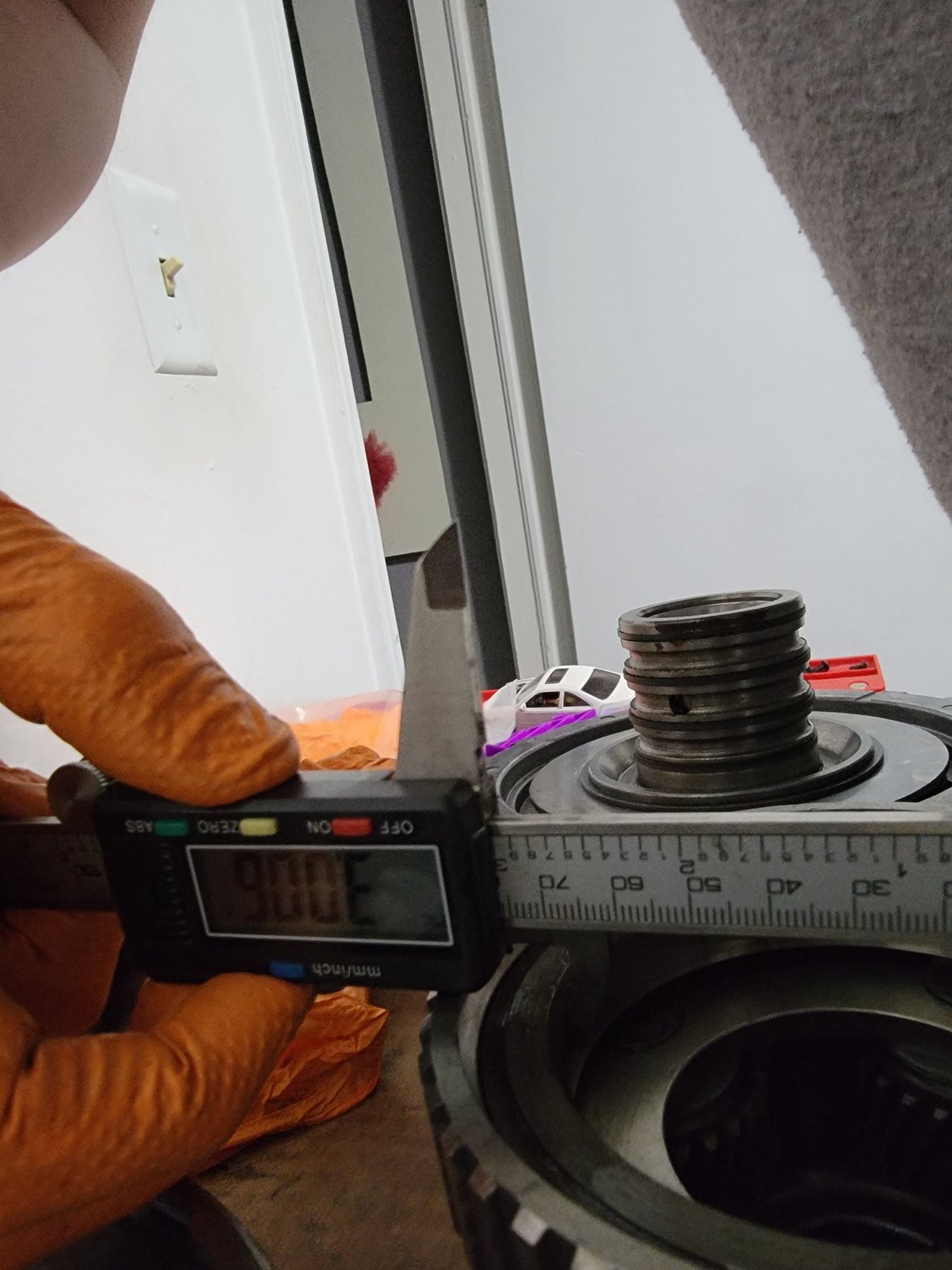

Ok thanks for the quick reply. I'll start assembly and checking clearance tomorrow.
