Shifting issues with 4L60e and TCI Controller

Thread Tools

Search this Thread

Old Aug 21, 2023 | 10:07 AM
  #1
Bondora68's Avatar
Thread Starter
Teching In

Joined: Jul 2023
Posts: 21
Likes: 1
Default Shifting issues with 4L60e and TCI Controller

I have an LS one Corvette engine just swapped into my 1971 Camaro with a 4L 60 E transmission being controlled by a TCI TCU controller. I’m having trouble getting it to shift without high revs. To get it to shift into third or fourth gear, I have to Rip up to nearly 4000 RPM like I’m drag racing down the street. I have tried all the adjustments on the TCU and don’t know what to do.


Last edited by mrvedit; Aug 22, 2023 at 11:22 AM. Reason: Added "TCI Controller" to title
Reply
Old Aug 21, 2023 | 04:26 PM
  #2
Tranzman's Avatar
TECH Enthusiast
5 Year Member
Liked
Loved
Community Favorite

Joined: Jan 2019
Posts: 677
Likes: 490
From: Roxana, IL
Default

Originally Posted by Bondora68
I have an LS one Corvette engine just swapped into my 1971 Camaro with a 4L 60 E transmission being controlled by a TCI TCU controller. I’m having trouble getting it to shift without high revs. To get it to shift into third or fourth gear, I have to Rip up to nearly 4000 RPM like I’m drag racing down the street. I have tried all the adjustments on the TCU and don’t know what to do.

Is this a GU transmission or a rebuilt one?
First your going to have to look at shift commands at a lower speed. What are they commanding?
If it is not commanding the shift until (a few seconds before) it actually happens. You have an issue with the trans tune in your TCI controller or it can be as simple as a vacuum leak to the map sensor or low manifold vacuum..
If it is commanding the 1-2 shift at 15 MPH but drags out to 25 that is something internal to the shift valve. It could be a bad AFL(Actuator Feed Limit) bore and have low AFL pressure tot the shift valves.
Basically the controller should be looking at 3 things for controlling the shifts.
1st the TPS for where your foot is asking for the command to happen. Low throttle or high throttle.
2nd it should look at the engine load (MAP) and correlate between the two. Is it really have a high load or is it really a light load.
3rd it will calculate a MPH that a shift is requested.
All of that is in a predetermined algorithm in the controller. I have no real world experience with a TCI controller. You will need to know or find out how it is supposed to calculate shift MPH. I do know that the MSD Atomic only uses a TPS signal to calculate a shift MPH.
Maybe Someone else has a personal experience with a TCI Controller. What part # is it anyway?
Reply
Old Aug 21, 2023 | 06:42 PM
  #3
Bondora68's Avatar
Thread Starter
Teching In

Joined: Jul 2023
Posts: 21
Likes: 1
Default




Reply
Old Aug 21, 2023 | 07:46 PM
  #4
Tranzman's Avatar
TECH Enthusiast
5 Year Member
Liked
Loved
Community Favorite

Joined: Jan 2019
Posts: 677
Likes: 490
From: Roxana, IL
Default

Originally Posted by Bondora68


I cant find anything from TCI's web site on this part # 30282-KIT. I was hoping to read through there instruction sheet.
Reply
Old Aug 22, 2023 | 11:28 AM
  #5
mrvedit's Avatar
Moderator
15 Year Member
Photogenic
Photoriffic
Community Favorite

Joined: Aug 2010
Posts: 7,321
Likes: 527
From: Ann Arbor, MI
Default

Do you have the TPS connected and is there a way to test it?
I see that TCI also sells an RPM module for at least some of their controllers. Do you have that?
Reply
Old Aug 22, 2023 | 02:24 PM
  #6
Bondora68's Avatar
Thread Starter
Teching In

Joined: Jul 2023
Posts: 21
Likes: 1
Default

They said that I did not need the RPM module because I 'm running an LS1...
Reply
Old Aug 22, 2023 | 02:25 PM
  #7
Bondora68's Avatar
Thread Starter
Teching In

Joined: Jul 2023
Posts: 21
Likes: 1
Default

I spoke with TCI today and we both came to the conclusion that something is amiss involving the TPS with the DBW pedal. I am going to try to connect to a different wire down there...
Reply
Old Aug 22, 2023 | 05:32 PM
  #8
mrvedit's Avatar
Moderator
15 Year Member
Photogenic
Photoriffic
Community Favorite

Joined: Aug 2010
Posts: 7,321
Likes: 527
From: Ann Arbor, MI
Default

Different model DBW pedals put out different voltage ranges . You may have to verify that the TCI supports your particular DBW part number. DBW pedals basically have either 2 or 3 potentiometers. Each is connected to 5V and ground and the center connection produces a voltage corresponding to the throttle position. The ECU checks that the 2/3 potentiometers are putting out the same (within reason) signal to ensure that a single failure won't give you WOT. If they are different you get limp mode.
Assuming you have the +5V and Ground connected properly, you an easily check that the voltage changes with position.
Reply
Old Aug 25, 2023 | 01:34 PM
  #9
Bondora68's Avatar
Thread Starter
Teching In

Joined: Jul 2023
Posts: 21
Likes: 1
Default

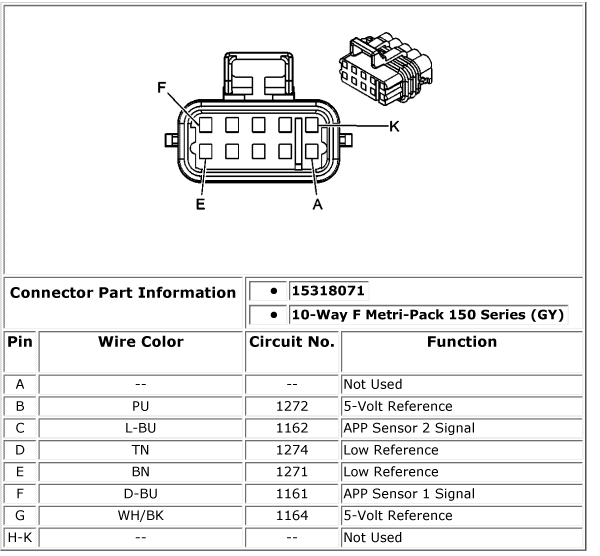

Here is the pin out for my DBW Corvette pedal... I am using one of the 5v reference wires for my TPS with an inline 80k resistor, I can't remember which wire, I will try the other one...

Reply
Old Aug 27, 2023 | 06:07 PM
  #10
MaroonMonsterLS1's Avatar
TECH Junkie
10 Year Member
Liked
Loved
Community Favorite

Joined: Dec 2012
Posts: 3,605
Likes: 1,316
From: Iowa
Default

5 volt reference means a constant 5v supply
If that's what you're sending to the Trans controller, you're going to have issues.
Low Reference=Ground

You'll want to use APP sensor 1 or 2 signal

APP=Accelerator Pedal Position
Reply
Old Aug 28, 2023 | 11:17 AM
  #11
Bondora68's Avatar
Thread Starter
Teching In

Joined: Jul 2023
Posts: 21
Likes: 1
Default

I actually hooked it up this weekend to APP sensor 1 and my handheld unit said TPS error...
Reply
Old Aug 28, 2023 | 11:50 AM
  #12
mrvedit's Avatar
Moderator
15 Year Member
Photogenic
Photoriffic
Community Favorite

Joined: Aug 2010
Posts: 7,321
Likes: 527
From: Ann Arbor, MI
Default

MaroonMonster is absolutely correct.
Put a volt meter on the selected APP Sensor wire and confirm that it changes from e.g. 1.0 - 4.0 Volts. If it doesn't change/register, then either the 5V Reference or Low Reference is not connected.
Reply
Old Aug 28, 2023 | 01:21 PM
  #13
MaroonMonsterLS1's Avatar
TECH Junkie
10 Year Member
Liked
Loved
Community Favorite

Joined: Dec 2012
Posts: 3,605
Likes: 1,316
From: Iowa
Default

The 5 volt reference will not work for any TPS signal
It's just a fixed 5v

You need a signal wire that will do a "sweep" with throttle input

Should be 0-1 volt when off throttle

And 4-5 volts at full throttle

Use a multi meter...the TCI likely has a "tps autoset" function...once you verify you have the right signal wire and voltage range, use the tps autoset
Reply
Old Sep 18, 2023 | 09:02 AM
  #14
Bondora68's Avatar
Thread Starter
Teching In

Joined: Jul 2023
Posts: 21
Likes: 1
Default

For the life of me I cannot get this to work. I found the signal wire but it only sweeps from 4.0 down to 2.1v. I used this to calibrate the TPS using the control unit. It says its calibrated and when engine is off it shows a 0 to 100 sweep when I press the throttle but when I crank the engine, it loses the calibration and just shows 0 on the handheld for TPS% and occasionally freezes at 34%. As a result my shift to 4th is very difficult and revs to 4000rpm.
I ordered a new TPS sensor for the pedal but I do not know what else to do...
Reply
Old Sep 19, 2023 | 02:33 PM
  #15
Bondora68's Avatar
Thread Starter
Teching In

Joined: Jul 2023
Posts: 21
Likes: 1
Default

I find it hard to believe that no one can figure this out...
Reply
Old Sep 19, 2023 | 03:15 PM
  #16
MaroonMonsterLS1's Avatar
TECH Junkie
10 Year Member
Liked
Loved
Community Favorite

Joined: Dec 2012
Posts: 3,605
Likes: 1,316
From: Iowa
Default

No one else is there with your car and a multimeter.
You're the only one that can figure this out.

Clearly, it has been figured out by the hive mind already that there is clearly a TPS signal issue to the controller. It's your job as the builder to find out how/where/why that issue lies...then correct it.
Reply
Old Sep 19, 2023 | 03:59 PM
  #17
jakeshoe's Avatar
TECH Resident
20 Year Member
Liked
Loved
iTrader: (14)

Joined: Sep 2005
Posts: 820
Likes: 113
From: North Texas
Default

Originally Posted by Bondora68
I find it hard to believe that no one can figure this out...
AND,,,
Maroon said it correctly but I will add,
It amazes me what people expect for free.

I've got a CNC machine with a VFD issue. Wanna sort it out remotely for me, free of charge?
Reply
Old Sep 19, 2023 | 04:19 PM
  #18
vorteciroc's Avatar
TECH Junkie
15 Year Member
Shutterbug
Loved
Community Favorite

Joined: Jun 2008
Posts: 3,194
Likes: 1,377
From: Nitro Alley
Default

Originally Posted by jakeshoe
AND,,,
Maroon said it correctly but I will add,
It amazes me what people expect for free.

I've got a CNC machine with a VFD issue. Wanna sort it out remotely for me, free of charge?
LOL!

I wish!

Sorry, I'd hate to deal with that bill!
Reply
Old Sep 19, 2023 | 04:55 PM
  #19
mrvedit's Avatar
Moderator
15 Year Member
Photogenic
Photoriffic
Community Favorite

Joined: Aug 2010
Posts: 7,321
Likes: 527
From: Ann Arbor, MI
Default

Originally Posted by Bondora68
I find it hard to believe that no one can figure this out...
I always suggest people add their City/State to their displayed info. Many members here are happy to help someone local.

Sorry you have received some "snippy" remarks, but....

Please keep in mind that you are connecting a GM component to a non-GM and rather obscure aftermarket TCM. Perhaps someone on a FAST forum knows that TCM real well. I suspect that either this GM part will never work, or there is a wiring error or perhaps incorrect assumption about what the wiring should be.
Reply
Old Sep 19, 2023 | 07:59 PM
  #20
FranksCustomTrans's Avatar
LS1Tech Sponsor
Shutterbug
Community Builder
Liked
Loved

Joined: Mar 2023
Posts: 1,799
Likes: 1,142
From: BERWICK PA
Default

Originally Posted by mrvedit
I always suggest people add their City/State to their displayed info. Many members here are happy to help someone local.

Sorry you have received some "snippy" remarks, but....

Please keep in mind that you are connecting a GM component to a non-GM and rather obscure aftermarket TCM. Perhaps someone on a FAST forum knows that TCM real well. I suspect that either this GM part will never work, or there is a wiring error or perhaps incorrect assumption about what the wiring should be.
Yes I would input more but really I do not know enough about that controller and could not find much either when I tried. One of the reasons I am partial to the USSHIFT controller even though some Do not care for it, Its just so incredibly simple as is its software. I like simple.
