Pretty sure that exhaust will have to be reconfigured to fit. I'd want to explore what that change will do to emissions certification in SoCal before I made commitments I couldn't back away from.
I think I might need to consider my other favorite option, Mercedes 300 TD (W123), it is diesel and smog exempt! I guess. However, I will need front oil sump oil pan.
Now, may I ask you if you can talk to us about how do you go through the process of engine fitting and creating the brackets and the motor mounts? You do not necessarily need to mention measurements, just the principles and the soul of the process.
In CA (and most places) the Mercedes will no longer be smog exempt if you remove the diesel, I suspect....and the steering box/system on those cars makes swaps a bit of a challenge as I understand it. The 240 will be easier I believe.

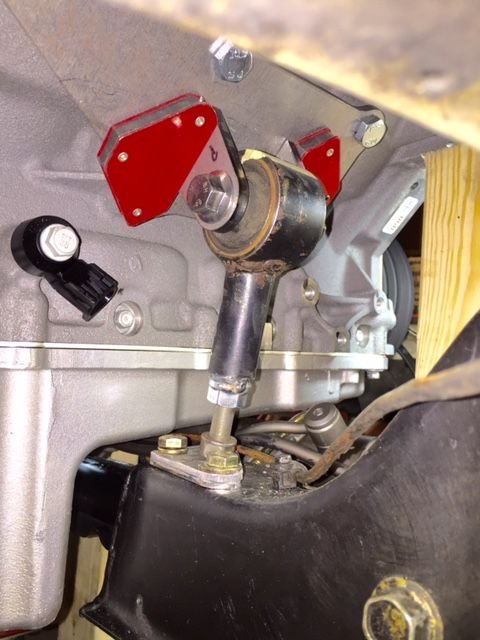

In my case, I was using the same T5z transmission I had in the car with the previous engine -- which was a Ford 5.0L V8. So I attached the bell housing and transmission to the new LS3. Then I moved the engine/tranny into the engine bay and bolted the transmission to the crossmember just as it had been installed with the Ford 5.0. That positioned the engine. I made an adjustable engine mount (see pic) and that let me determine the height of the mounts.
As I've mentioned before -- I asked many of the same questions you are. Once I finally got started, I realized, I was just going to have to figure out the best way forward pretty much on my own. So while how I did it may help, at the end of the day, you're just going to have to jump in and figure it out. Once I made/installed the mounts and got things working, I had to slightly change the angle of engine/tranny by lowering the tranny mount a bit in order to optimize u-joint angles since I run a 1-piece driveshaft. Probably not an issue if you stick with the stock 2-piece.

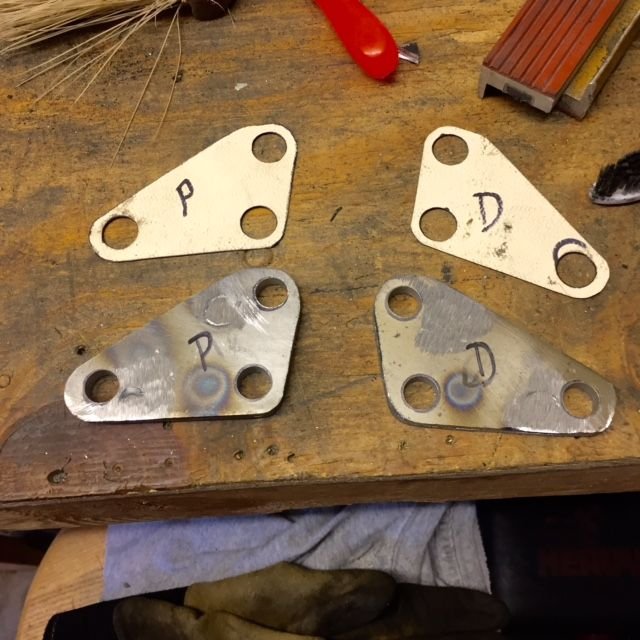

I made a template out of paper and then created the mount pads out of 1/4" plate that bolt to the factory motormount holes in the front crossmember.

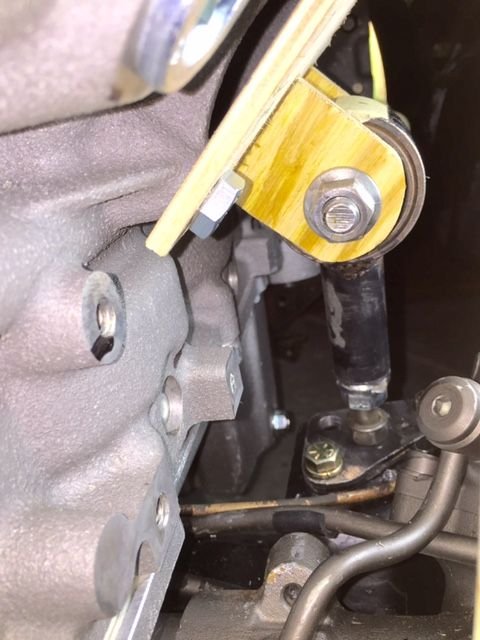

I mocked up the block plates out of 1/4" plywood. I cut up a rear upper torque arm from the rear suspension to use as the mount -- you can use a stock rubber bush or a poly bush -- and then attached a nut/bolt so I could adjust the height.

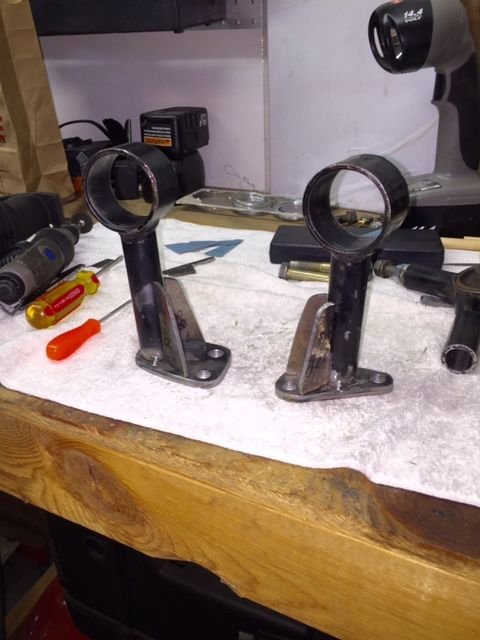

Once I had the height/location/angle determined for each side -- I cut and welded the mounts and added gussets.
My engine/tranny is offset 1/2" towards the passenger side (compared to the centerline between frame rails). That's to create a bit more clearance for the steering. Again - you may take a different approach depending on what oil pan and exhaust manifolds you choose.
Last edited by Michael Yount; Dec 15, 2017 at 10:46 AM.
One last thought -- I'm pretty sure for the E-rod package to be smog legal in where ever you are -- you can't alter the location of the factory cats. I'm VERY doubtful that the factory manifolds with the cats in the stock location will fit between the frame rails on the 240. I believe you'll have to relocate the cats to make it work -- so you're gonna wanna check about passing emissions where ever you are if you relocate the cats.
Hi Mike as you know I just took on the EROD challenge in my ranger to make it CA legal , on the Erod and hopefully I read this right the cat system can be cut and moved to fit but the first cat has to be within 16 inches of where the manifold exits(I know this because after spending endless hours cutting and welding to fit those things I decided to read the instructions and had to start over) also the instruction state some thing to effect you can use any factory LS exhaust manifold but no after market header ,I used a truck manifold on my passenger side. For fuel on mine I used the stock tank with a walbro340 intank pump.
I just got my emission test done just before I started so its given me a 2 year window to get it thru the BAR so mine isnt proven yet but im pretty confident it going to fly.
Also on mine the harness was a real PIA fitting it but the package has been running very good ,I have a typical check engine light on because I still need to do a crank sensor relearn thing,they supply a free GM coupon to handle that.
The biggest challenge and time consuming thing on my conversion was fitting those cats, I did build a staight pipe or no cat system and that was a breeze maybe 1/2 a day,actually running that now but graphed some single BBK single high flows to try to quiet it down.
Good stuff Jim! I figured there was some flexibility in getting the cats to fit. 16" limit on 1st cat from manifold(ANY factory LS). Anything on how far the 2nd converter can be from the first?
Good stuff Jim! I figured there was some flexibility in getting the cats to fit. 16" limit on 1st cat from manifold(ANY factory LS). Anything on how far the 2nd converter can be from the first?
G Atsma, Im not sure on that,I just put them as close as possible,mine aren't proven to pass the BAR visule yet,there not on the truck I can get a photo posted tomorrow of what I have..
OK, it all sounds pretty reasonable; mainly getting them to fit closely as possible to the OEM "plan". I think if BAR looks at it and sees it is pretty close to OEM, they will pass it. It's a referee call.
LOL -- there is nothing "reasonable" about emissions laws/testing in California.... "It's a referee call" = it's subjective, which means you can't predict it. That's a big part of the problem. Trying to figure it out is harder than Chinese arithmetic. Could be worse. Could be Europe....
