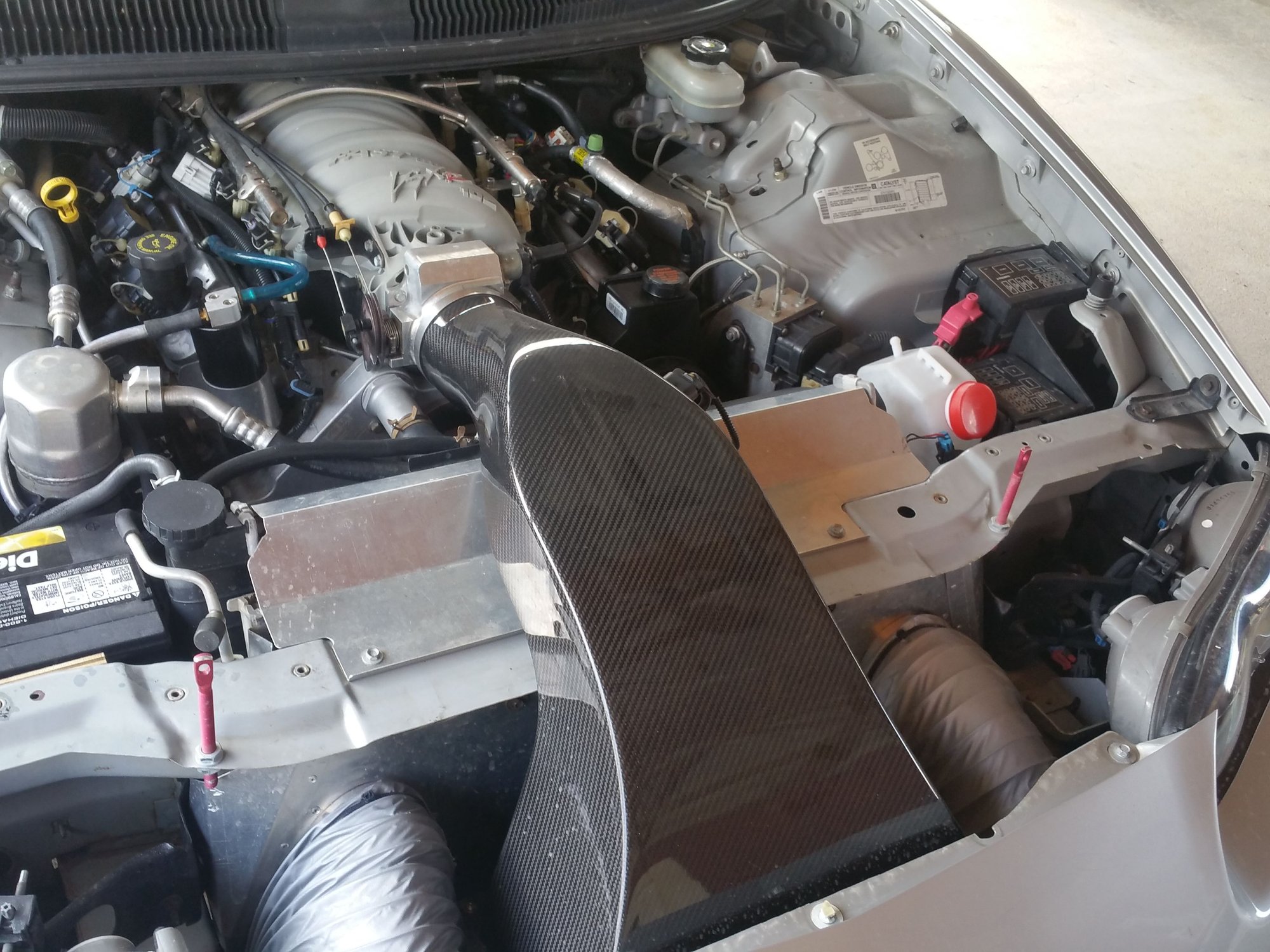

New Intake tract... So right now I'm running an FTP 104 with a TSP 100mm MAF and frankly... I hate the FTP lid. It rubs my hood like crazy, fits poorly, has cracked in numerous spots, I could go on and on. Has anyone used or made anything that didn't require major modifications (such as hacking the hell out of the core support)?
I know some people have done piping down to the nostrils in the center of the bumper, but I know 4" piping is definitely requiring some hefty mods. What about 2.5" piping, but double? At this point I'm still larger than the smallest part of the intake tract, so there shouldn't be a restriction, add in sealing it to the bumper nostrils and it's now a ram air. Thoughts?
I know some people have done piping down to the nostrils in the center of the bumper, but I know 4" piping is definitely requiring some hefty mods. What about 2.5" piping, but double? At this point I'm still larger than the smallest part of the intake tract, so there shouldn't be a restriction, add in sealing it to the bumper nostrils and it's now a ram air. Thoughts?
A guy on here took a Volant intake box and put in a c6 filter in place of the standard Volant filter setup and cut open the box for the bigger outlet of the filter. Then mated it up to his 102mm throttle body. Not sure what hood clearance would be like but I know that Volant boxes fit all styles of 4th gen ls1 car hoods.
Thread Starter
Joined: Jun 2014
Posts: 1,241
Likes: 47
From: Noblesville, IN
Thread Starter
Joined: Jun 2014
Posts: 1,241
Likes: 47
From: Noblesville, IN
I thought of doing some tubing. Something like running it off to the drivers side and down underneath the fuse boxes to where the air pump used to be. The only thing I don't like is the length of the tube creating a fairly hefty restriction by comparison to the factory lid setup.
I did find that volant/c6 filter setup. I like that idea a lot actually, I just need to find a way to make it work with my MAF.
I did find that volant/c6 filter setup. I like that idea a lot actually, I just need to find a way to make it work with my MAF.
Trending Topics
Thread Starter
Joined: Jun 2014
Posts: 1,241
Likes: 47
From: Noblesville, IN
Considering the car is in a place that will see fairly large temperature shifts throughout the year (30's in the winter, 110 in the summer) and it's daily driven.. I figured MAF was the best way to go.
I found another website that sells a stainless steel lid... Was going to try and talk to them about fitment and such. I'd post it here but non-sponsor links and all
I found another website that sells a stainless steel lid... Was going to try and talk to them about fitment and such. I'd post it here but non-sponsor links and all
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Awesome K5 Blazer Restomod Comes With C7 Corvette Power
Verdad Gallardo
10 Camaros You Should Never Buy
10 LS Engine Myths That Refuse to Die
Verdad Gallardo I daily drove my old truck speed density and it had possibly even bigger temp swings than you experience because there were a few days that were below 0 actual temp and the AFR swing was like .1-.3 at the most without making any changes. And I tuned it in the spring I believe in the mid 60s-70s. Now with a bigger cam it might change a little more but I don't think a whole lot. As long as your tuner started SD before he dialed in the MAF tables I think it should be fine.
