Need help with Raptor Shift Light
Thread Starter
Joined: Oct 2002
Posts: 523
Likes: 58
From: Winnipeg, Manitoba, Canada
Need help with Raptor Shift Light 2001 LS1 Trans Am.
Have the Raptor light set to 4 cylinder mode (1 off 2 on 3 off) because LS1s send dual signals.
For testing, I set the rpm to 3000.
Tach signal wire is pin 10 on red connector...white wire.
Shift light comes on and does the self test but will not come on at 3000 rpm.
Checked voltage on signal wire. 0.05 volts.
What am I missing?
Is there an alternate point I can tap for tach signal?
Have the Raptor light set to 4 cylinder mode (1 off 2 on 3 off) because LS1s send dual signals.
For testing, I set the rpm to 3000.
Tach signal wire is pin 10 on red connector...white wire.
Shift light comes on and does the self test but will not come on at 3000 rpm.
Checked voltage on signal wire. 0.05 volts.
What am I missing?
Is there an alternate point I can tap for tach signal?
Last edited by Gripenfelter; Jun 3, 2019 at 09:59 PM.
Which wire are you getting your tach signal from? I installed my Raptor shift light years ago and haven't had any problems with it. I grabbed a wire off the PCM but I can't remember which one at the moment.
Thread Starter
Joined: Oct 2002
Posts: 523
Likes: 58
From: Winnipeg, Manitoba, Canada

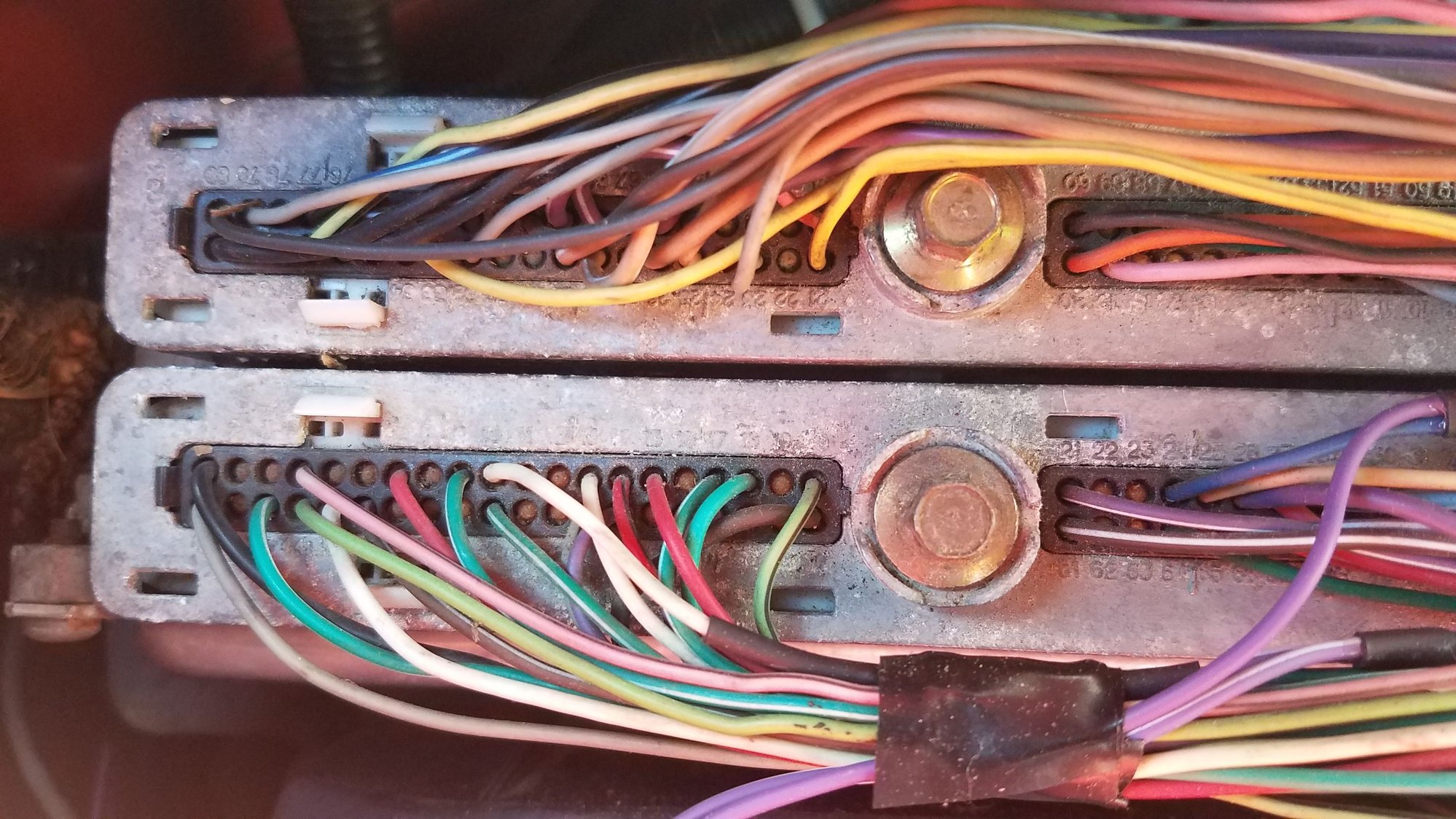

That's exactly the pin and configuration I have. Thanks for the pics to confirm.
I'm going to try a coil wire signal wire.
I tried the 1K ohm pull up method as well...didn't work.
I'm going to try a coil wire signal wire.
I tried the 1K ohm pull up method as well...didn't work.
