Identify heads

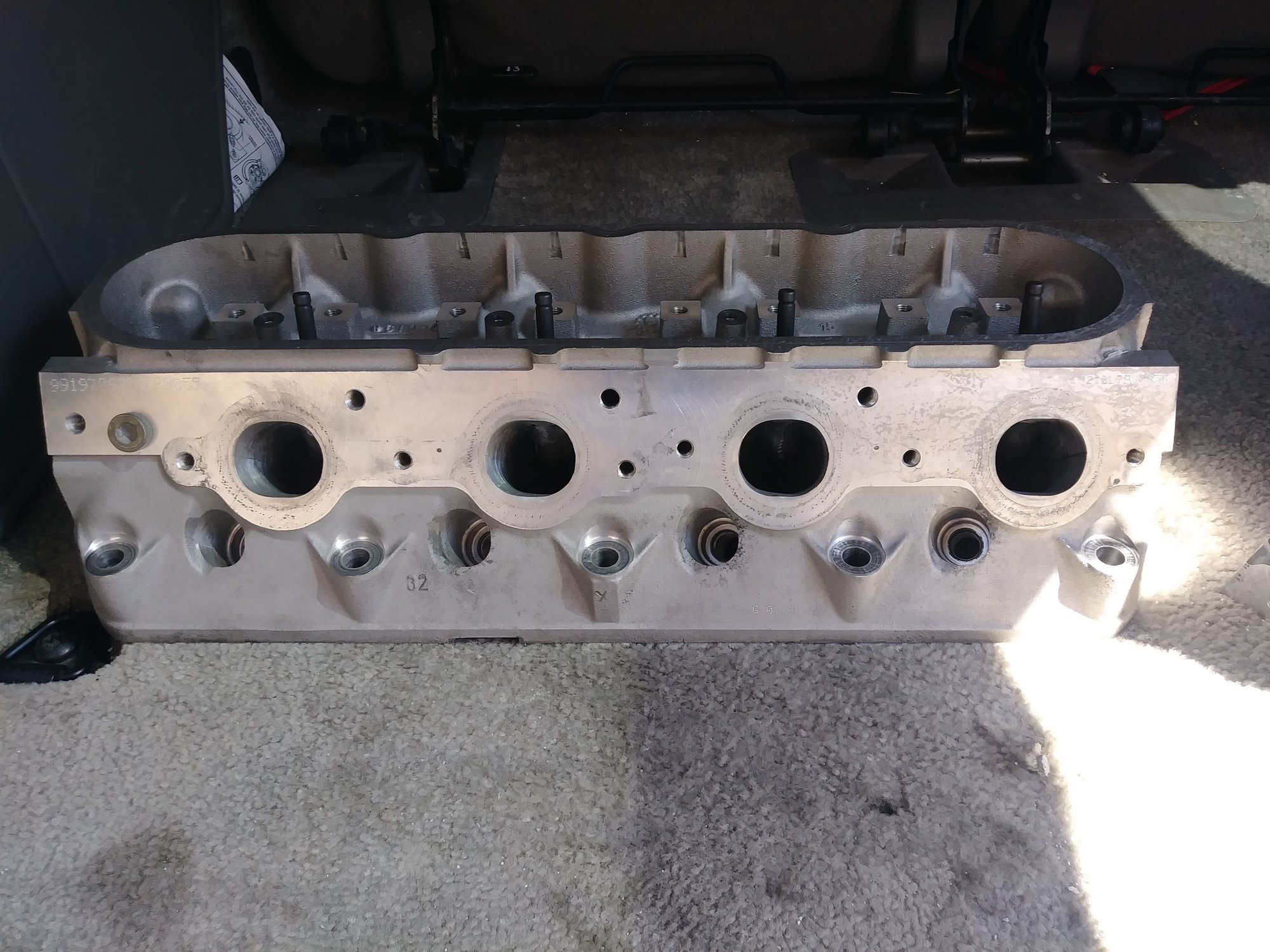

Can you guys help me identify this heads...
no cast#! Ground off!!
Have a halfed homeport job

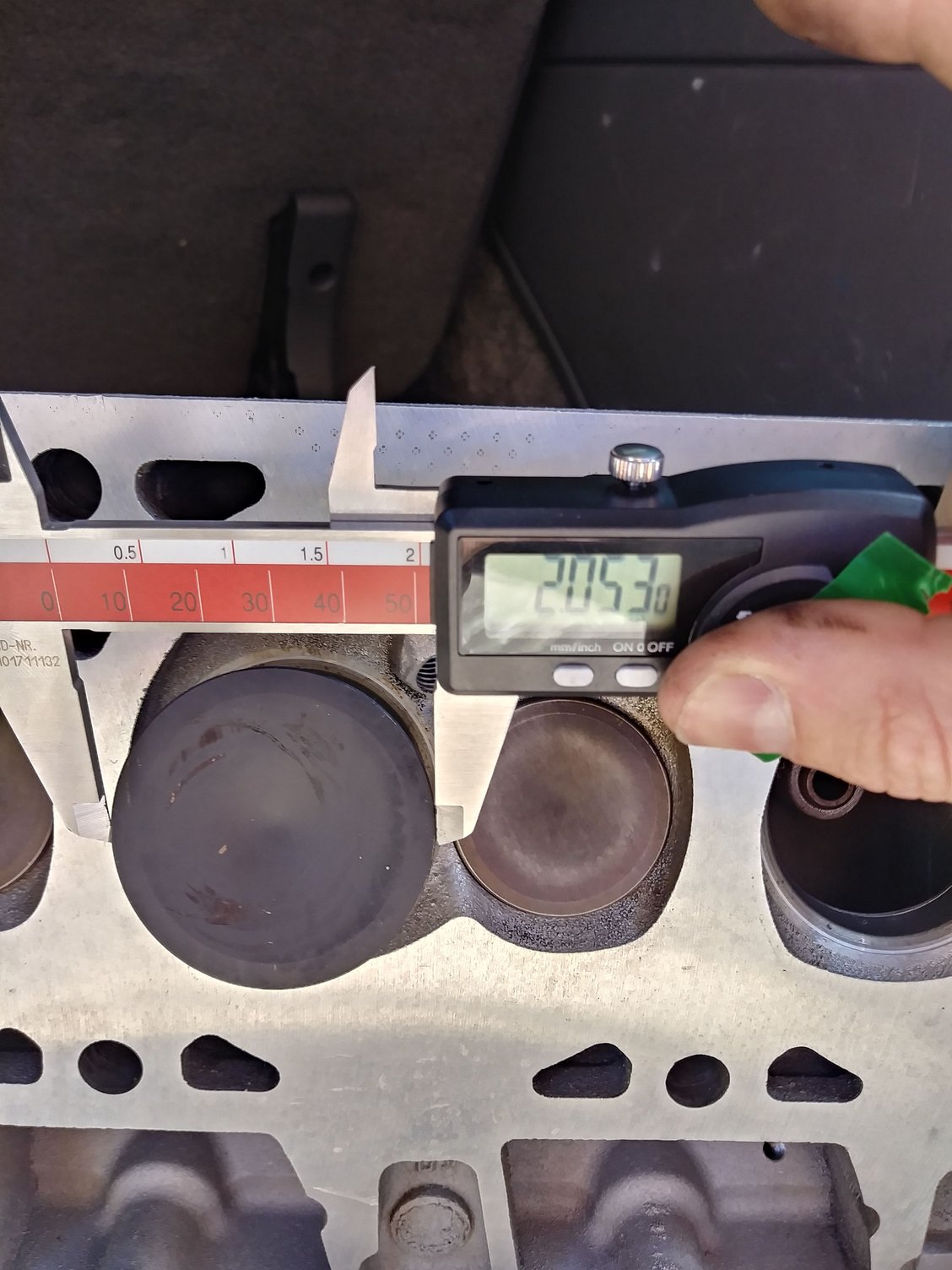

Intake are 2.05 valves
exhaust 1.6

Check the pics please

Are they any good ?

Aug 30, 2018 | 07:02 PM

G Atsma

TECH Senior Member

Joined: Jun 2016

Posts: 22,291

Likes: 3,616

From: Central Cal.

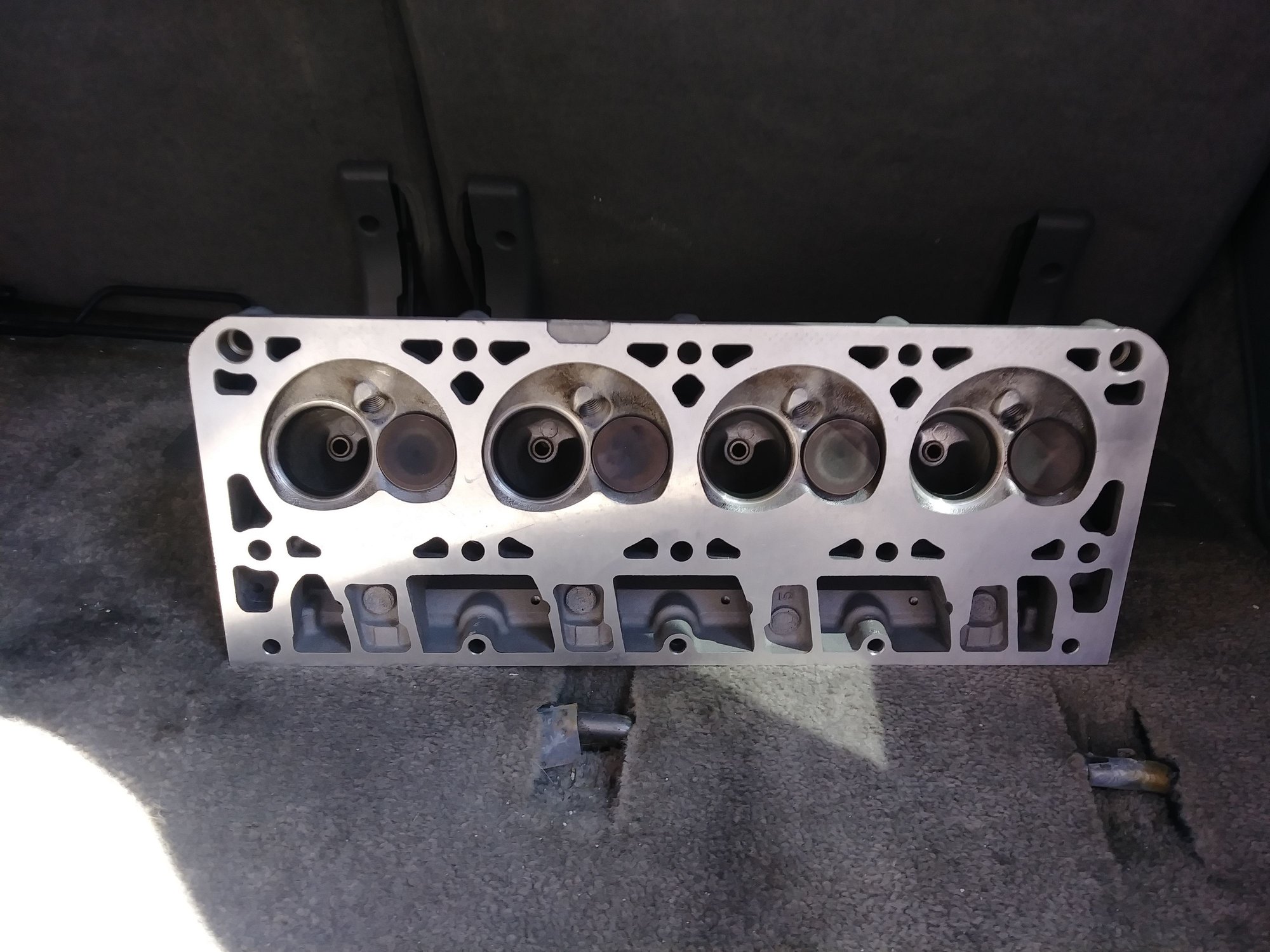

Chambers look pretty tight, modified 5.3 truck heads?

Aug 30, 2018 | 07:06 PM

Sebambam

Thread Starter

TECH Apprentice

Joined: Nov 2015

Posts: 384

Likes: 53

Quote:

Originally Posted by G Atsma

Chambers look pretty tight, modified 5.3 truck heads?

Could be

Do truck heads have this notch on the surface? Or are this ls1 notch heads?

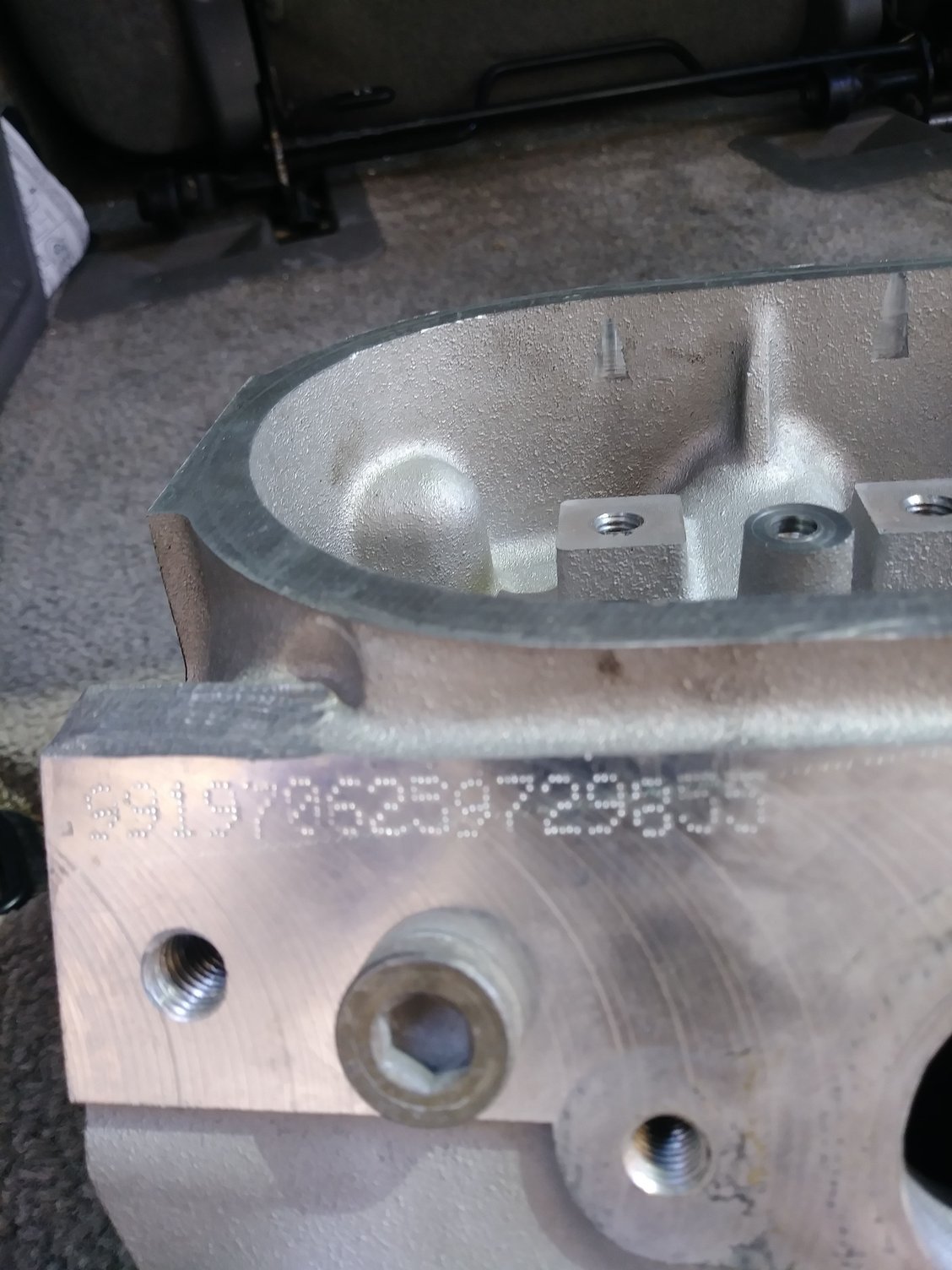

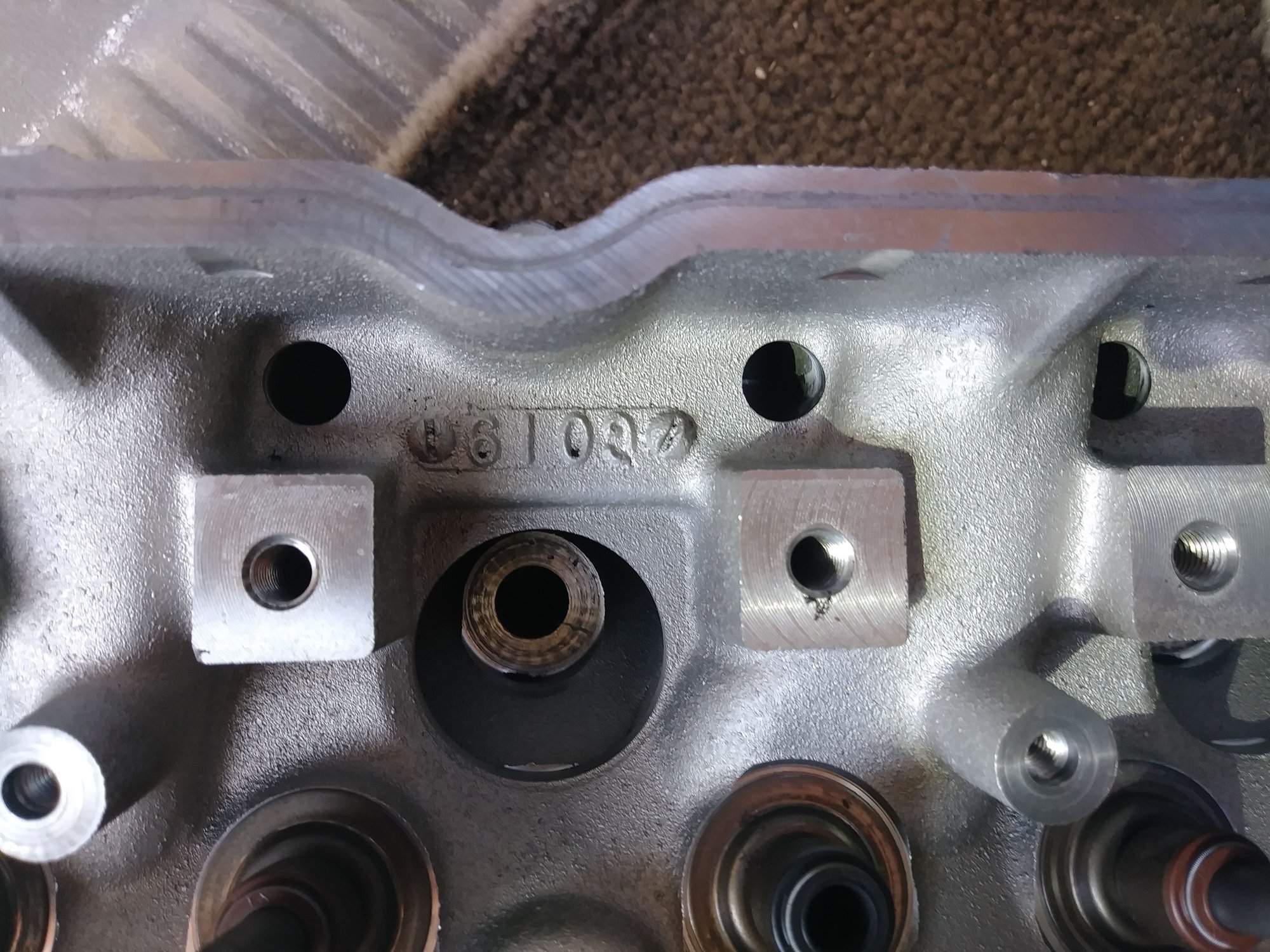

is there a way to find out with the orher #

Aug 30, 2018 | 08:17 PM

wannafbody

TECH Senior Member

iTrader: (3)

Joined: Apr 2006

Posts: 5,604

Likes: 1,149

From: Pittsburgh

Those have the triangle next to the spark plug hole. They might be 799/243 castings

Aug 30, 2018 | 08:44 PM

slogo

TECH Resident

Joined: Apr 2014

Posts: 985

Likes: 12

Quote:

Originally Posted by wannafbody

Those have the triangle next to the spark plug hole. They might be 799/243 castings

The triangle you are referring to should be under the plug hole not the casting where the head bolt goes through,
and the exhaust port is d shaped on the 243 799. These are not 243 799.

Aug 30, 2018 | 08:49 PM

Che70velle

ModSquad

iTrader: (6)

Joined: Jan 2012

Posts: 7,828

Likes: 5,176

From: Dawsonville Ga.

I’m sure these are cathedral port, yes? Chamber isn’t closed. I’d say 853’s.

Aug 30, 2018 | 09:16 PM

Sebambam

Thread Starter

TECH Apprentice

Joined: Nov 2015

Posts: 384

Likes: 53

I think this are 853 ls1 notch heads..

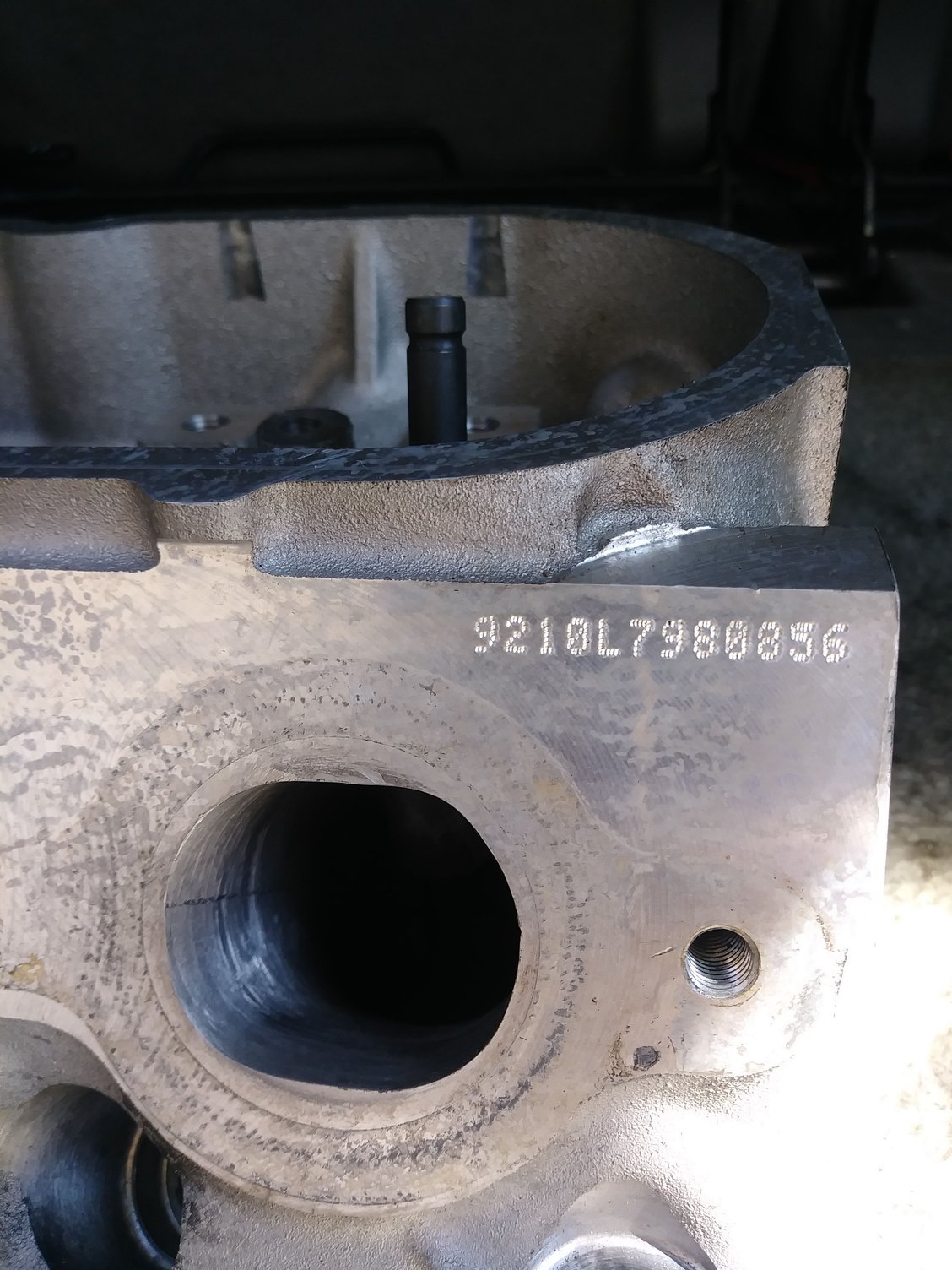

but i also just noticed the TX. Stamping... Could tgat be a " porter"?
since they accept the 2.05/1.6 valves?
And tge look milled? Any way to meassure that?

Amazing '71 Camaro Restomod Is Modern Muscle Car Under the Skin

Verdad Gallardo

6 Common C5 Corvette Failures and What's Involved In Repairing Them

Pouria Savadkouei

Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph

Verdad Gallardo

Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked

Pouria Savadkouei

Top 10 Most Powerful Chevy Trucks Ever Made!

Hennessey's New Supercharged Silverado ZR2 Has 700 HP

Verdad Gallardo

Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes

Verdad Gallardo

Awesome K5 Blazer Restomod Comes With C7 Corvette Power

Verdad Gallardo

10 Camaros You Should Never Buy

10 LS Engine Myths That Refuse to Die

Verdad Gallardo

Aug 30, 2018 | 10:50 PM

Sebambam

Thread Starter

TECH Apprentice

Joined: Nov 2015

Posts: 384

Likes: 53

Quote:

Originally Posted by G Atsma

To see if they're milled, measure the exact height of the head from bottom to valve cover mounting surface. Then compare to a known stock head.

lol.yea but whats the oem height

Aug 30, 2018 | 10:53 PM

#10

G Atsma

TECH Senior Member

Joined: Jun 2016

Posts: 22,291

Likes: 3,616

From: Central Cal.

That's why I said compare to a STOCK, as in unmilled, head. All OEM LS heads except LS7 are the same height.

Aug 31, 2018 | 10:18 AM

#11

Sebambam

Thread Starter

TECH Apprentice

Joined: Nov 2015

Posts: 384

Likes: 53

Quote:

Originally Posted by G Atsma

That's why I said compare to a STOCK, as in unmilled, head. All OEM LS heads except LS7 are the same height.

Since i dont have a oem head laying arroun i have to have a height # to compare

Sep 4, 2018 | 02:33 PM

#12

Joe69z28

On The Tree

Joined: Oct 2011

Posts: 102

Likes: 0

From: Dirty South

Quote:

Originally Posted by Sebambam

I think this are 853 ls1 notch heads..
but i also just noticed the TX. Stamping... Could tgat be a " porter"?
since they accept the 2.05/1.6 valves?
And tge look milled? Any way to meassure that?

Quote:

Originally Posted by Sebambam

Since i dont have a oem head laying arroun i have to have a height # to compare

Those are NOT 5.3 heads, a 706 chamber will have a distinct heart shape and be slight flat at chamber bottom and a ledge above exhaust valve .Measure the chamber width 706 will be 3.75 and 853 will be 3.82 Better way would be to measure CC volume ,than height .Judging from pics you do have 853s

Sep 5, 2018 | 07:32 PM

#13

cookseyb

TECH Resident

Joined: Apr 2010

Posts: 926

Likes: 18

From: Central Texas

Quote:

Originally Posted by Sebambam

Can you guys help me identify this heads...
no cast#! Ground off!!
Have a halfed homeport job

Intake are 2.05 valves
exhaust 1.6

Check the pics please

Are they any good ?

Is that a crack in the bolt seat?

Sep 6, 2018 | 10:00 AM

#14

Full-Force

TECH Junkie

iTrader: (11)

Joined: Aug 2004

Posts: 3,070

Likes: 5

From: Upstate of SC

These are not 243/799 heads so they are not gonan be any better than any other stock head. I wouldn't call those heads ported at all. No work in the bowl/valve guide area at all which is where the power enhancement is going to come from. That and removing the rocker boss.

I would pass on those and get a set of stock 243/799 heads if you are looking for something cheap.

Sep 6, 2018 | 03:34 PM

#15

00pooterSS

TECH Veteran

iTrader: (40)

Joined: Mar 2008

Posts: 4,920

Likes: 531

From: Dallas

Quote:

Originally Posted by Full-Force

And less of a selection of head gaskets that will work with the gay notch in the head.

I've been bitten by that notch with old perimeter bolt 97 LS1 heads.
