Default Help - Adjusting pinion angle
I need to set my pinion angle to -2.00. I watched the UMI video but need some clarification please.
I read it with a digital angle finder on the harmonic balancer. Not the bolt.


UMI checked from driver side and got negative angle. I checked from driver side and get a positive angle. Every video or thread I read gets a negative angle on the drivers side.

Am I suppose to read from the drivers side or passenger side?
if driver side why am I getting a positive angle?


Edit: I bought a new angle finder so I’m no longer confused. Answered my own question.
Last edited by Finkledbody; Apr 2, 2024 at 06:53 AM.
Reply
0
Old Apr 2, 2024 | 09:58 PM
Share
  #2
lees02WS6's Avatar
lees02WS6
TECH Fanatic
iTrader: (5)

Joined: Mar 2004
Posts: 1,882
Likes: 281
From: Lansdale, PA
Default
Originally Posted by Finkledbody
I read it with a digital angle finder on the harmonic balancer. Not the bolt.
That's fine, might be easier to get a measurement off the balancer

Originally Posted by Finkledbody

Am I suppose to read from the drivers side or passenger side?
if driver side why am I getting a positive angle?
Just be consistent, if you read off the passenger side for one angle, do the same for the other angle of the drive line.

Originally Posted by Finkledbody
Edit: I bought a new angle finder so I’m no longer confused. Answered my own question.
Does this mean you got your angles in spec?
Reply
0
Old Apr 2, 2024 | 10:00 PM
Share
  #3
lees02WS6's Avatar
lees02WS6
TECH Fanatic
iTrader: (5)

Joined: Mar 2004
Posts: 1,882
Likes: 281
From: Lansdale, PA
Default
Nobody has covered the driveline angle topic, and all the conflicting info, more thoroughly than Mankandy (Garage Fab).

Reply
0
Old Apr 5, 2024 | 09:04 PM
Share
  #4
91 Z28's Avatar
91 Z28
TECH Fanatic
5 Year Member
Photogenic
Photoriffic
Liked
iTrader: (3)

Joined: Oct 2016
Posts: 1,584
Likes: 374
From: Armstrong BC
Default
I take a measurement off my ATI balancer let's call it 6 then from the same side I put my angle finder on my rear end and make that 4. -2 degrees. Just that simple.
Reply
0
Old Apr 6, 2024 | 03:49 PM
Share
  #5
Finkledbody's Avatar
Finkledbody
Thread Starter
TECH Resident
15 Year Member
Liked
Loved
Community Favorite

Joined: Jul 2009
Posts: 753
Likes: 323
Default
Originally Posted by lees02WS6
That's fine, might be easier to get a measurement off the balancer



Just be consistent, if you read off the passenger side for one angle, do the same for the other angle of the drive line.



Does this mean you got your angles in spec?

yes should be all set
final
front tail down 3.4
rear nose up 1.4
= -2.00 pinion angle
if u can confirm?
Reply
0
Old Apr 6, 2024 | 06:32 PM
Share
  #6
lees02WS6's Avatar
lees02WS6
TECH Fanatic
iTrader: (5)

Joined: Mar 2004
Posts: 1,882
Likes: 281
From: Lansdale, PA
Default
Originally Posted by Finkledbody
yes should be all set
final
front tail down 3.4
rear nose up 1.4
= -2.00 pinion angle
if u can confirm?

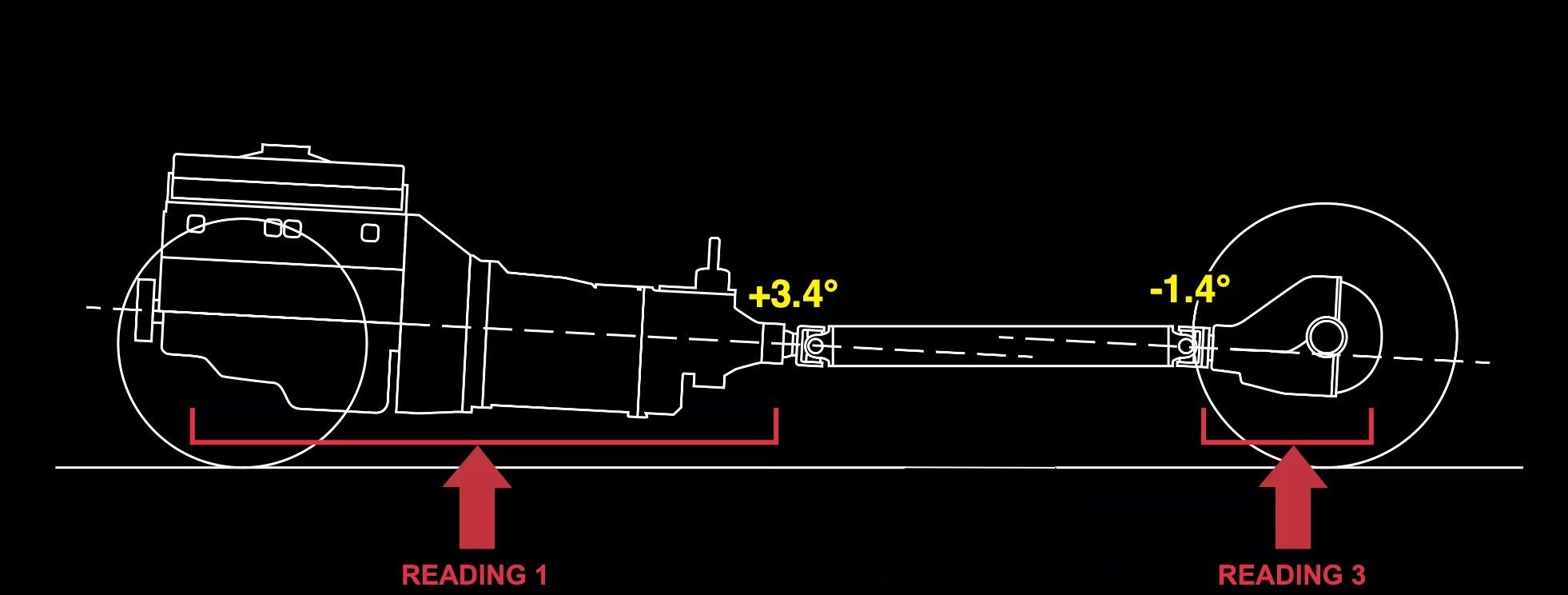

What it is the angle at your tailshaft or balancer? 3.4°?

Your angle at the pinion yoke should be within 1° of the angle measured at the tailshaft. You're trying to account for the slop in bushings, as the axle will rotate up slightly under acceleration load.

If I read your numbers as this, you pinion needs to come up 1 more degree, assuming you're setting this up for street driving. Then go drive it down the highway between, 65 and 75 mph, and see if it runs smooth.

Last edited by lees02WS6; Apr 6, 2024 at 06:46 PM.
Reply
0
Old Apr 7, 2024 | 11:55 AM
Share
  #7
Finkledbody's Avatar
Finkledbody
Thread Starter
TECH Resident
15 Year Member
Liked
Loved
Community Favorite

Joined: Jul 2009
Posts: 753
Likes: 323
Default
According to UMI Engine Tail down is a negative number.

-3.4
axle nose up
1.4
= -2.00

No?
Reply
0

Trending Topics

Old Apr 7, 2024 | 02:19 PM
Share
  #8
lees02WS6's Avatar
lees02WS6
TECH Fanatic
iTrader: (5)

Joined: Mar 2004
Posts: 1,882
Likes: 281
From: Lansdale, PA
Default
Originally Posted by Finkledbody
According to UMI Engine Tail down is a negative number.

-3.4
axle nose up
1.4
= -2.00

No?
Depends, the pinion number is only one half the equation. It's driveline angles (output, and input shafts) that matter, the two numbers together, under load, operating at equally opposing angles. Are you mostly drag racing, or mostly street driving? I would lean towards a street setup if you're doing that 90% or more of the time.

I would try to get the 1.4* number to 2.4*, go drive the thing and see if you get vibrations between 65-75mph.

https://www.umiperformance.com/home/.../2200-2203.pdf

We have found the best settings for a street driven car are: Automatics 1-2 degrees negative, manual 1-3 degrees negative.
Last edited by lees02WS6; Apr 7, 2024 at 02:25 PM.
Reply
0
LS1 Tech Stories

The Best V8 Stories One Small Block at Time

story-0

Amazing '71 Camaro Restomod Is Modern Muscle Car Under the Skin

 Verdad Gallardo
story-1

6 Common C5 Corvette Failures and What's Involved In Repairing Them

 Pouria Savadkouei
story-2

Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph

 Verdad Gallardo
story-3

Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked

 Pouria Savadkouei
story-4

Top 10 Most Powerful Chevy Trucks Ever Made!


story-5

Hennessey's New Supercharged Silverado ZR2 Has 700 HP

 Verdad Gallardo
story-6

Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes

 Verdad Gallardo
story-7

Awesome K5 Blazer Restomod Comes With C7 Corvette Power

 Verdad Gallardo
story-8

10 Camaros You Should Never Buy


story-9

10 LS Engine Myths That Refuse to Die

 Verdad Gallardo
Old Apr 7, 2024 | 02:24 PM
Share
  #9
91 Z28's Avatar
91 Z28
TECH Fanatic
5 Year Member
Photogenic
Photoriffic
Liked
iTrader: (3)

Joined: Oct 2016
Posts: 1,584
Likes: 374
From: Armstrong BC
Default
Originally Posted by Finkledbody
According to UMI Engine Tail down is a negative number.

-3.4
axle nose up
1.4
= -2.00

No?
Don't be overthinking this it's way too simple. Set it up like the BMR video says and you'll be good to go.
Reply
0
Old Apr 7, 2024 | 02:29 PM
Share
  #10
Finkledbody's Avatar
Finkledbody
Thread Starter
TECH Resident
15 Year Member
Liked
Loved
Community Favorite

Joined: Jul 2009
Posts: 753
Likes: 323
Default
Originally Posted by 91 Z28
Don't be overthinking this it's way too simple. Set it up like the BMR video says and you'll be good to go.
im not overthinking it. My math says I nailed it so I’m not adjusting it further until it’s driven then it will be rechecked. What would the BMR video tell me?

Did u read the measurements?
Reply
0
Old Apr 7, 2024 | 02:30 PM
Share
  #11
91 Z28's Avatar
91 Z28
TECH Fanatic
5 Year Member
Photogenic
Photoriffic
Liked
iTrader: (3)

Joined: Oct 2016
Posts: 1,584
Likes: 374
From: Armstrong BC
Default
Originally Posted by Finkledbody
im not overthinking it. My math says I nailed it so I’m not adjusting it further until it’s driven then it will be rechecked. What would the BMR video tell me?

Did u read the measurements?
Yea I did you're good to go
Reply
0
Old Apr 7, 2024 | 09:44 PM
Share
  #12
Tramminc's Avatar
Tramminc
TECH Enthusiast
15 Year Member
Photogenic
Photoriffic
Shutterbug

Joined: Jul 2010
Posts: 593
Likes: 29
From: Florida
Default
I used this app, worked like a charm. Turns your phone into a angle finder and calculator.
