2.9L Whipple Build
I am in the process of building a 416ci high torque motor for my 5,500 lb. Tahoe. I decided on the 2.9L since it is a better match for my cubes. The kit is for a 2010+ Camaro SS 6.2L and works great because it has the same accessory spacing as the trucks. I added the Innovators West 8 rib setup with a 10% overdrive dampner pulley. The Whipple was ordered with 8 ribs but it showed up with the standard 6 rib setup so now I am waiting for the replacements.
The only real modification I had to do was modify the alternator/power steering bracket so it would rotate more towards the driver's side. Otherwise the bracket would not clear the by-pass valve. I also had to switch to the Camaro water pump.
Can't wait to try this baby out. Should make for a good sleeper.
The only real modification I had to do was modify the alternator/power steering bracket so it would rotate more towards the driver's side. Otherwise the bracket would not clear the by-pass valve. I also had to switch to the Camaro water pump.
Can't wait to try this baby out. Should make for a good sleeper.
Last edited by Duntov1967; 12-31-2017 at 09:16 AM.
#5
On The Tree
Thread Starter
iTrader: (22)
Join Date: Oct 2009
Location: Merritt Island, FL
Posts: 191
Likes: 0
Received 0 Likes
on
0 Posts
For those with cathedral heads, the kit can be ordered with a matching base intake. Whipple is pretty good about putting together a custom kit. In my case, they swapped all the accessory/intercooler lines for a truck application. Very cool. Anyone with larger cubes should consider the 2.9L or 3.4L Whipple (or KB) instead of over-driving a 2.3L.
Trending Topics
#8
On The Tree
Thread Starter
iTrader: (22)
Join Date: Oct 2009
Location: Merritt Island, FL
Posts: 191
Likes: 0
Received 0 Likes
on
0 Posts
Yep, the ole' Tahoe
Crank and rods are Calles forged, pistons are Mahle forged with HD wrist pins.
Goals?............ High torque down low. That 'a horse kicked me in the ****' feeling when I hit the gas. LOL
Goals?............ High torque down low. That 'a horse kicked me in the ****' feeling when I hit the gas. LOL
#10
On The Tree
Thread Starter
iTrader: (22)
Join Date: Oct 2009
Location: Merritt Island, FL
Posts: 191
Likes: 0
Received 0 Likes
on
0 Posts
PWR HERE
#11
On The Tree
Thread Starter
iTrader: (22)
Join Date: Oct 2009
Location: Merritt Island, FL
Posts: 191
Likes: 0
Received 0 Likes
on
0 Posts
New issue to overcome. I was told that a cable TB would fit by rotating 180 degrees like they do with the DBW units. Wrong. The TPS won't clear the 4 inch SC pulley and I don't want to step down to a 3.25" or smaller. So it seems the best solution is to rotate it 90 degrees instead. After doing this not so scientific mockup, all the sensors have plenty of clearance and fabricating the cable bracket will be much simpler. So now I am going to machine an adapter out of .500" aluminum which should do the job. A side benefit is that getting to the idle screw will be much more convenient.
Last edited by Duntov1967; 12-31-2017 at 09:12 AM.
#12
On The Tree
Thread Starter
iTrader: (22)
Join Date: Oct 2009
Location: Merritt Island, FL
Posts: 191
Likes: 0
Received 0 Likes
on
0 Posts

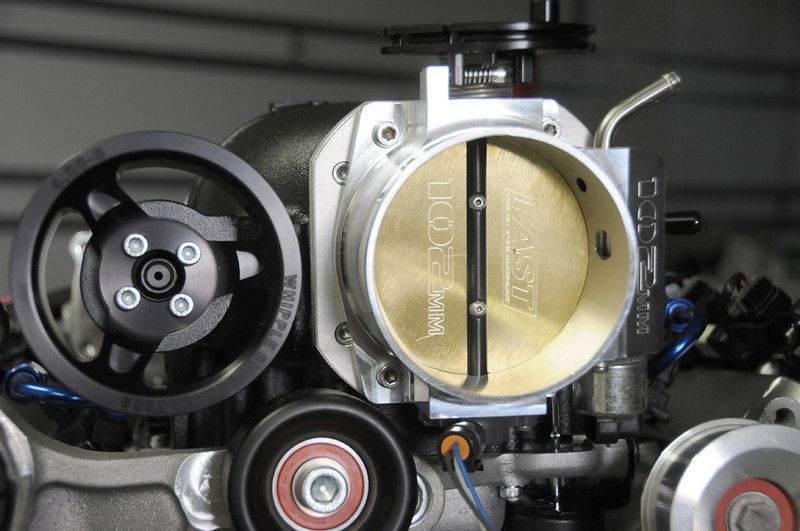

After water-jetting and machining an adapter for the throttle body, all the sensors now clear. Now all I need to do is fab up the cable bracket.
Last edited by Duntov1967; 12-31-2017 at 09:10 AM.
#14
On The Tree
Thread Starter
iTrader: (22)
Join Date: Oct 2009
Location: Merritt Island, FL
Posts: 191
Likes: 0
Received 0 Likes
on
0 Posts
Another update. I spent days in the engine bay modifying the wiring. Stripped the entire loom to reroute the harness behind and down the side of the motor. Other changes to wiring included deleting the IAT in the MAF and rewiring to the new IAT sensor at the back of the manifold. Also modified for the new 3 bar LS9 MAP, relocated knock sensors, LS2 cam sensor and Lingenfelter 100mm Bosch style MAF.
Got the motor in and I am now working on the various external motor parts and connections. Had to set the SC in twice because I forgot to hook up the boost gauge line on the back of the manifold the first time. What a pain that was. I sure hope everything is good because there is a ton of stuff behind the supercharger. If anything is bad with the IAT, MAP, intercooler lines, fuel lines, wiring connectors, etc....... the SC has to come out. Had a few issues with the power steering pump clearance. When I modified the alt/pwr steering bracket by rotating it to the driver's side, I didn't consider the location of the steering box and lines. Also the new hydroboost pump had an extra port tube that caused issues. But a rubber mallet fixed it all.
It is taking much more time than I expected but so far I am pleased with the install. But my back is killing me! Here are a few pics of where I am at now.
Got the motor in and I am now working on the various external motor parts and connections. Had to set the SC in twice because I forgot to hook up the boost gauge line on the back of the manifold the first time. What a pain that was. I sure hope everything is good because there is a ton of stuff behind the supercharger. If anything is bad with the IAT, MAP, intercooler lines, fuel lines, wiring connectors, etc....... the SC has to come out. Had a few issues with the power steering pump clearance. When I modified the alt/pwr steering bracket by rotating it to the driver's side, I didn't consider the location of the steering box and lines. Also the new hydroboost pump had an extra port tube that caused issues. But a rubber mallet fixed it all.
It is taking much more time than I expected but so far I am pleased with the install. But my back is killing me! Here are a few pics of where I am at now.
Last edited by Duntov1967; 12-31-2017 at 09:07 AM.
#16
On The Tree
Thread Starter
iTrader: (22)
Join Date: Oct 2009
Location: Merritt Island, FL
Posts: 191
Likes: 0
Received 0 Likes
on
0 Posts
Just started it up yesterday. I have a few minor issues. Even thou I have the valve covers with the notching for larger rockers, I have a few that are just 'ticking' the covers. I will have to pull the covers and do some extra grinding for clearance. Also the LS2 cam sensor conversion harness was pinned wrong and had to fix that.
I flashed the base tune but won't be able to go into boost until I get it on the chassis dyno. I took it out for an easy 40 mile drive and I can tell you this thing has tons of low end torque. Mildly taking off with no boost will push me back into the seat with ease. I can't wait to get the final dyno tune! I think I may have found the magical combo of l92 heads, baby cam and SC boost.
Final specifications:
Bore: 4.070” (Factory L92 aluminum block)
Stroke: 4” (Callies DragonSlayer)
Rods: 6.125” (Callies Ultra H-Beam)
Pistons: Manley #592770C-8 (-18cc dish), fitted with .170” wall wrist pins for boost application
Heads: Factory L-92, slight shave, dual valve springs (68cc chambers)
Head Gasket: Factory L92 (.051 thickness)
Compression Ratio: 9.8:1
Cam: Vinci Performance, DUR @ .050" 210* / 222*, LIFT .551 /.551, LSA 116* (.585 lift with 1.8 ratio rockers)
Rockers: Yella Terra 1.8 ratio adjustable
Throttle Body: F.A.S.T. 102mm
MAF: Lingenfelter 100mm
Injectors: Siemen Deka #A2C32624700 (80lbs/hr @39.15.psi)
Supercharger: Whipple 2.9L, 4" pulley, inter-cooled
Balancer: Innovators West 10% overdrive
I flashed the base tune but won't be able to go into boost until I get it on the chassis dyno. I took it out for an easy 40 mile drive and I can tell you this thing has tons of low end torque. Mildly taking off with no boost will push me back into the seat with ease. I can't wait to get the final dyno tune! I think I may have found the magical combo of l92 heads, baby cam and SC boost.
Final specifications:
Bore: 4.070” (Factory L92 aluminum block)
Stroke: 4” (Callies DragonSlayer)
Rods: 6.125” (Callies Ultra H-Beam)
Pistons: Manley #592770C-8 (-18cc dish), fitted with .170” wall wrist pins for boost application
Heads: Factory L-92, slight shave, dual valve springs (68cc chambers)
Head Gasket: Factory L92 (.051 thickness)
Compression Ratio: 9.8:1
Cam: Vinci Performance, DUR @ .050" 210* / 222*, LIFT .551 /.551, LSA 116* (.585 lift with 1.8 ratio rockers)
Rockers: Yella Terra 1.8 ratio adjustable
Throttle Body: F.A.S.T. 102mm
MAF: Lingenfelter 100mm
Injectors: Siemen Deka #A2C32624700 (80lbs/hr @39.15.psi)
Supercharger: Whipple 2.9L, 4" pulley, inter-cooled
Balancer: Innovators West 10% overdrive
Last edited by Duntov1967; 12-22-2012 at 12:47 PM.
