Accessory Drive Diagram?

I’ve been looking for a front accessory drive diagram for my 2001 Trans am I can’t seem to find one. It’s been apart for over two years and I can’t remember at all how it goes back together. Any help would be greatly appreciated.

Mar 9, 2019 | 02:05 PM

Che70velle

ModSquad

iTrader: (6)

Joined: Jan 2012

Posts: 7,828

Likes: 5,176

From: Dawsonville Ga.

Quote:

Originally Posted by madsv1000

I just googled “LS1 front accessory drive” and prolly saw 10 pictures of what you need on first page. Try that.

Mar 9, 2019 | 02:18 PM

madsv1000

Thread Starter

On The Tree

iTrader: (1)

Joined: Aug 2013

Posts: 104

Likes: 2

Quote:

Originally Posted by Che70velle

I just googled “LS1 front accessory drive” and prolly saw 10 pictures of what you need on first page. Try that.

Yeah I did that. I just need a better view than that. Looking where a few small brackets go.

Mar 9, 2019 | 02:31 PM

01CamaroSSTx

11 Second Club

iTrader: (3)

Joined: Feb 2015

Posts: 5,997

Likes: 2,286

From: Conroe, Texas

Quote:

Originally Posted by madsv1000

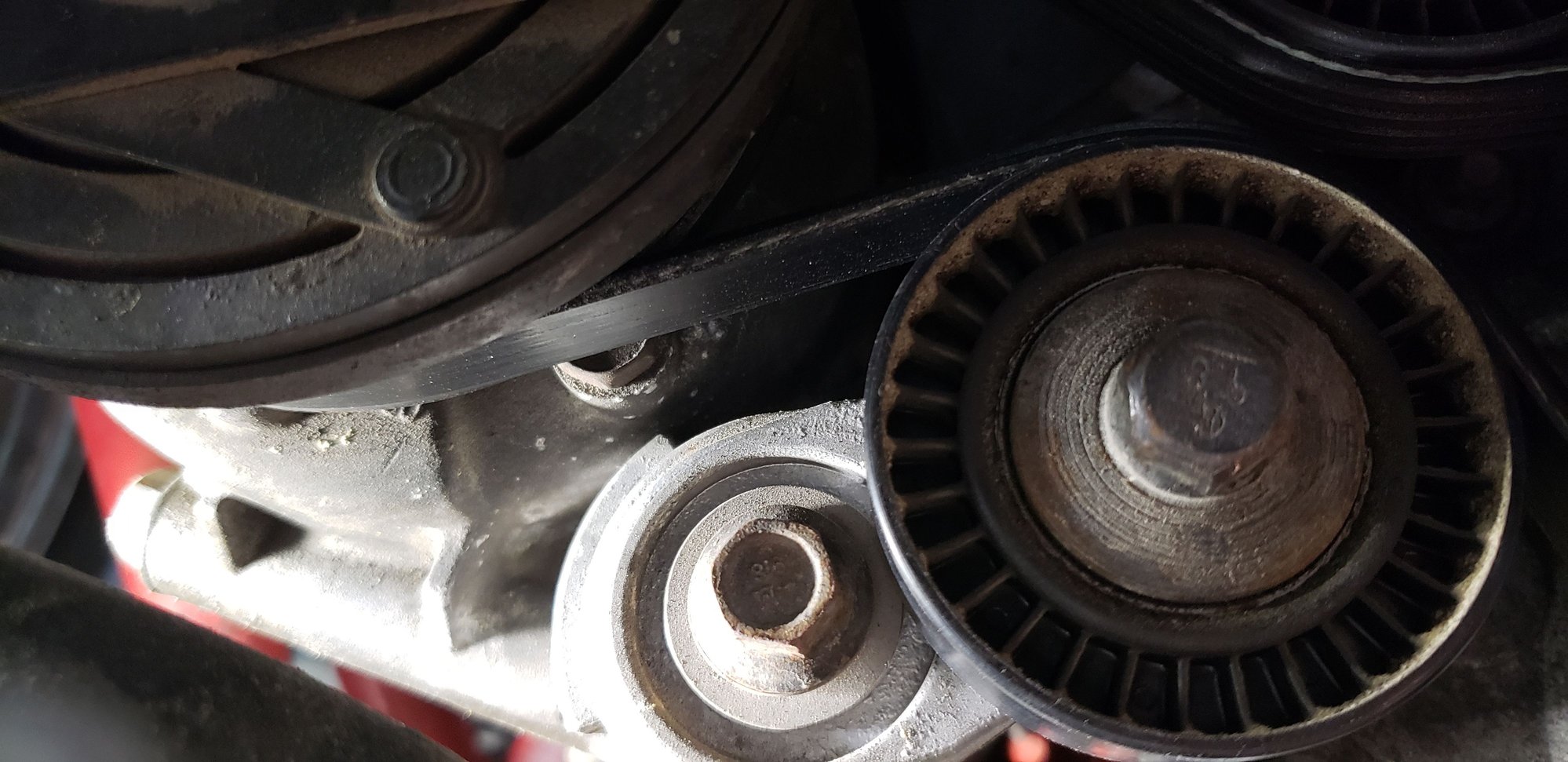

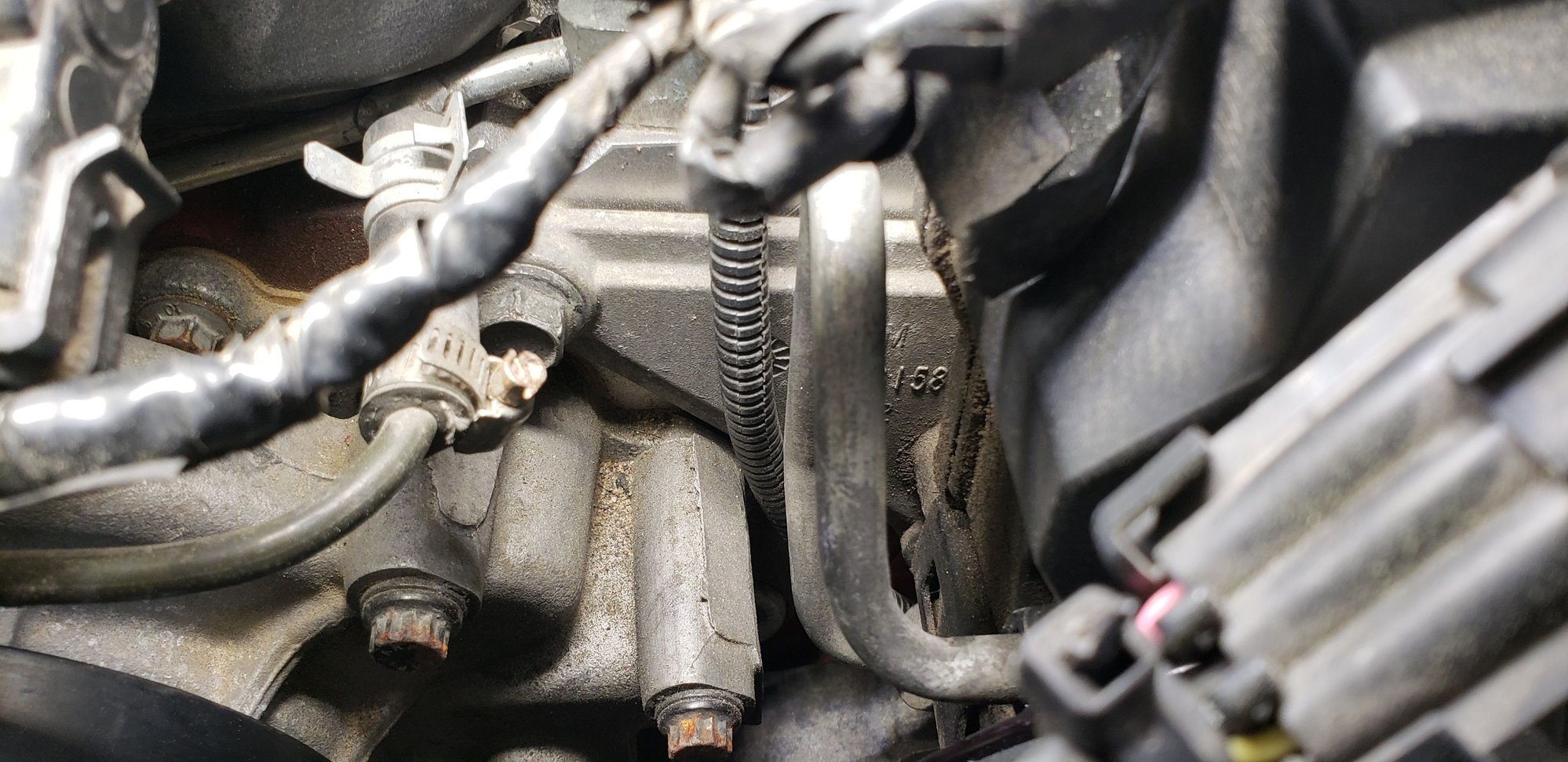

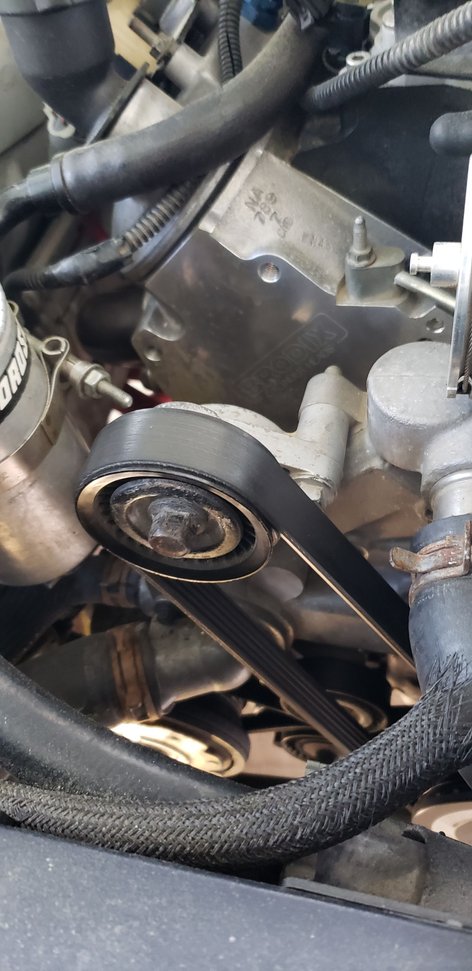

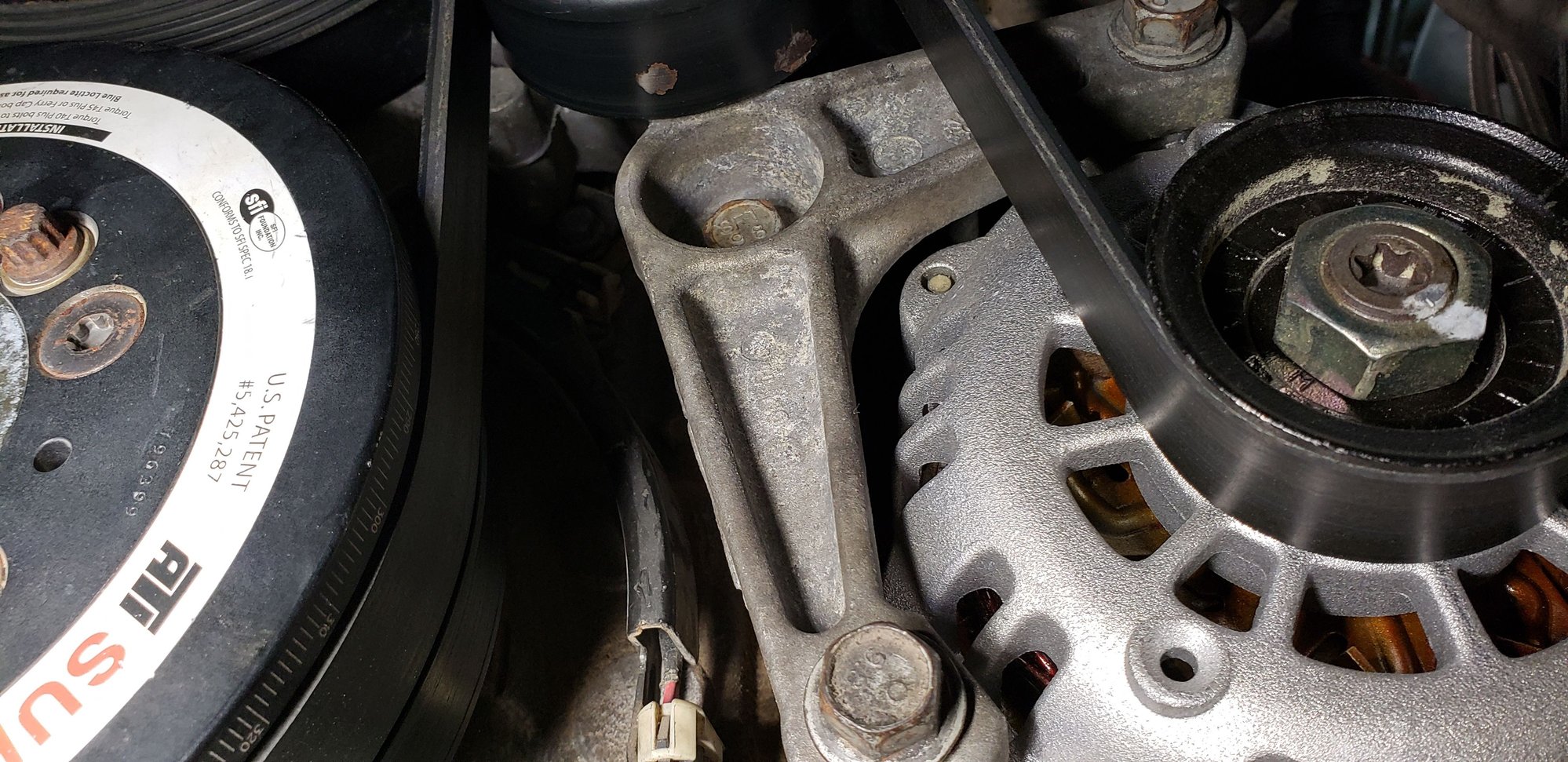

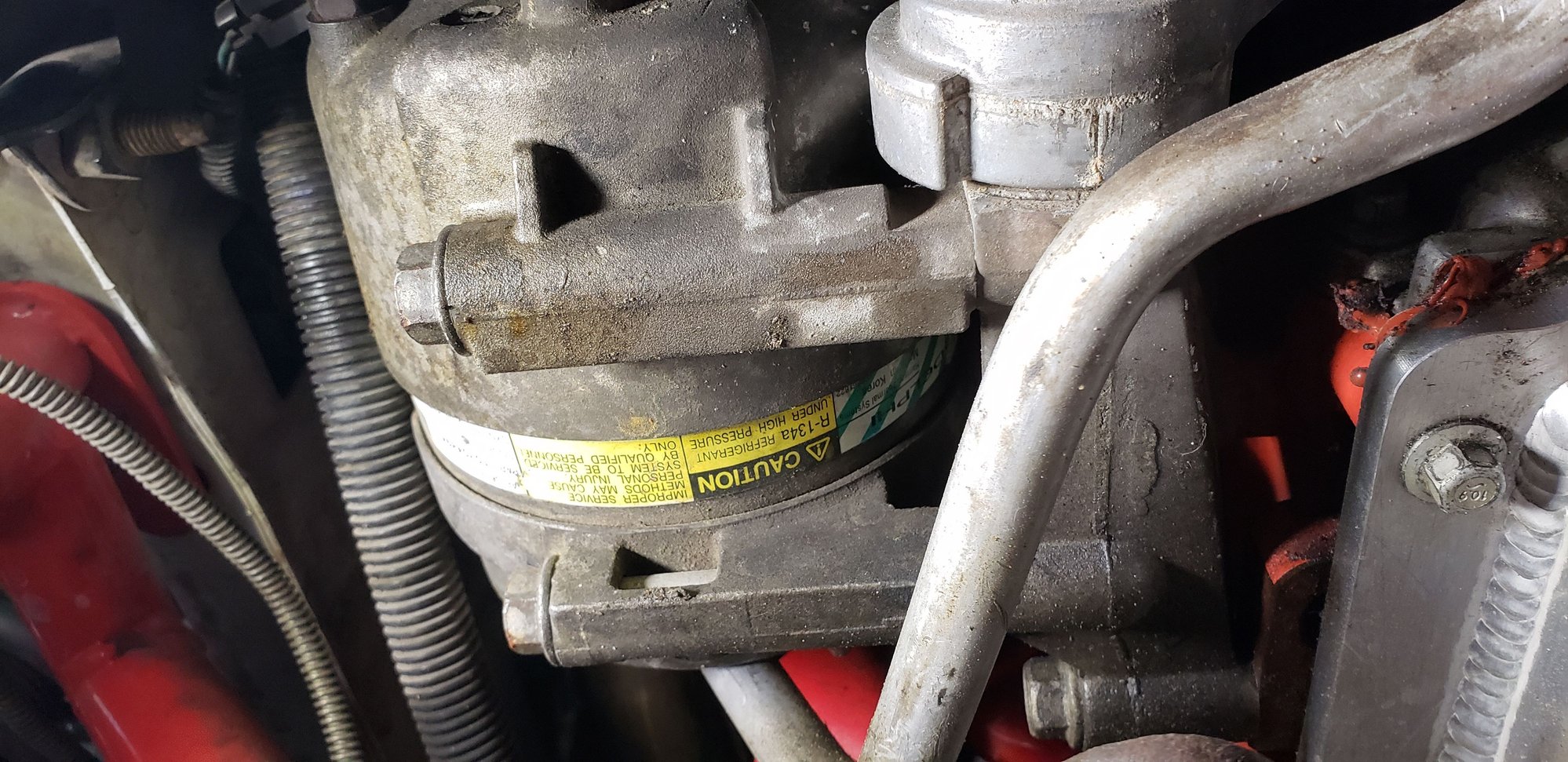

You have three brackets a very small triangular bracket that goes for the power steering pump and bolts to the driver side cylinder head. The larger triangular bracket with a smooth pulley that holds the alternator to the block and the last bracket which bolts the air conditioner compressor to the right side of the engine underneath the passenger side cylinder head. I can send some pictures if you like.
