•Check the crankshaft rear oil gallery plug is not loose, damaged or leaking.

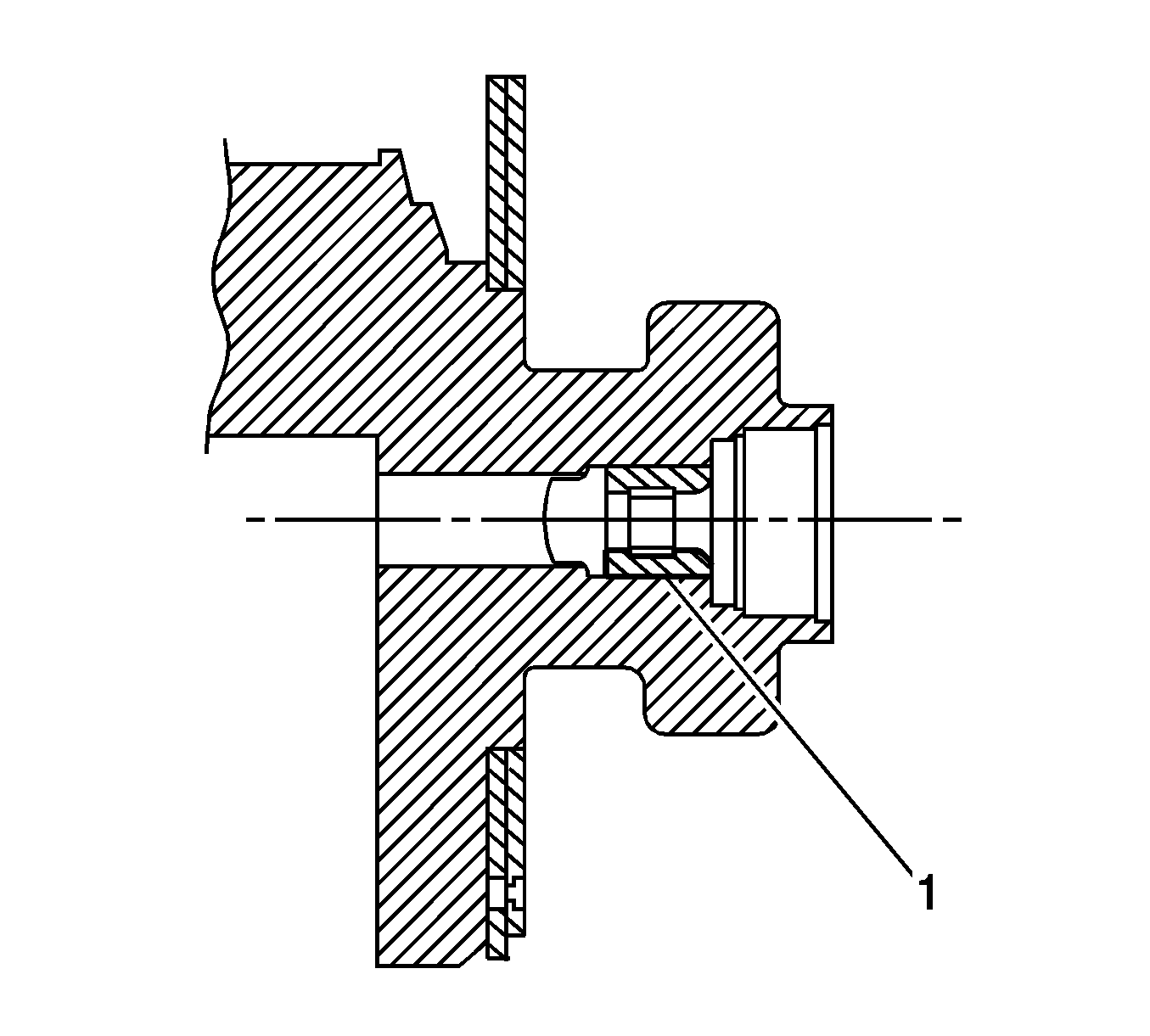

•If necessary, coat the new oil gallery plug (1) with Loctite™ 242 or equivalent.

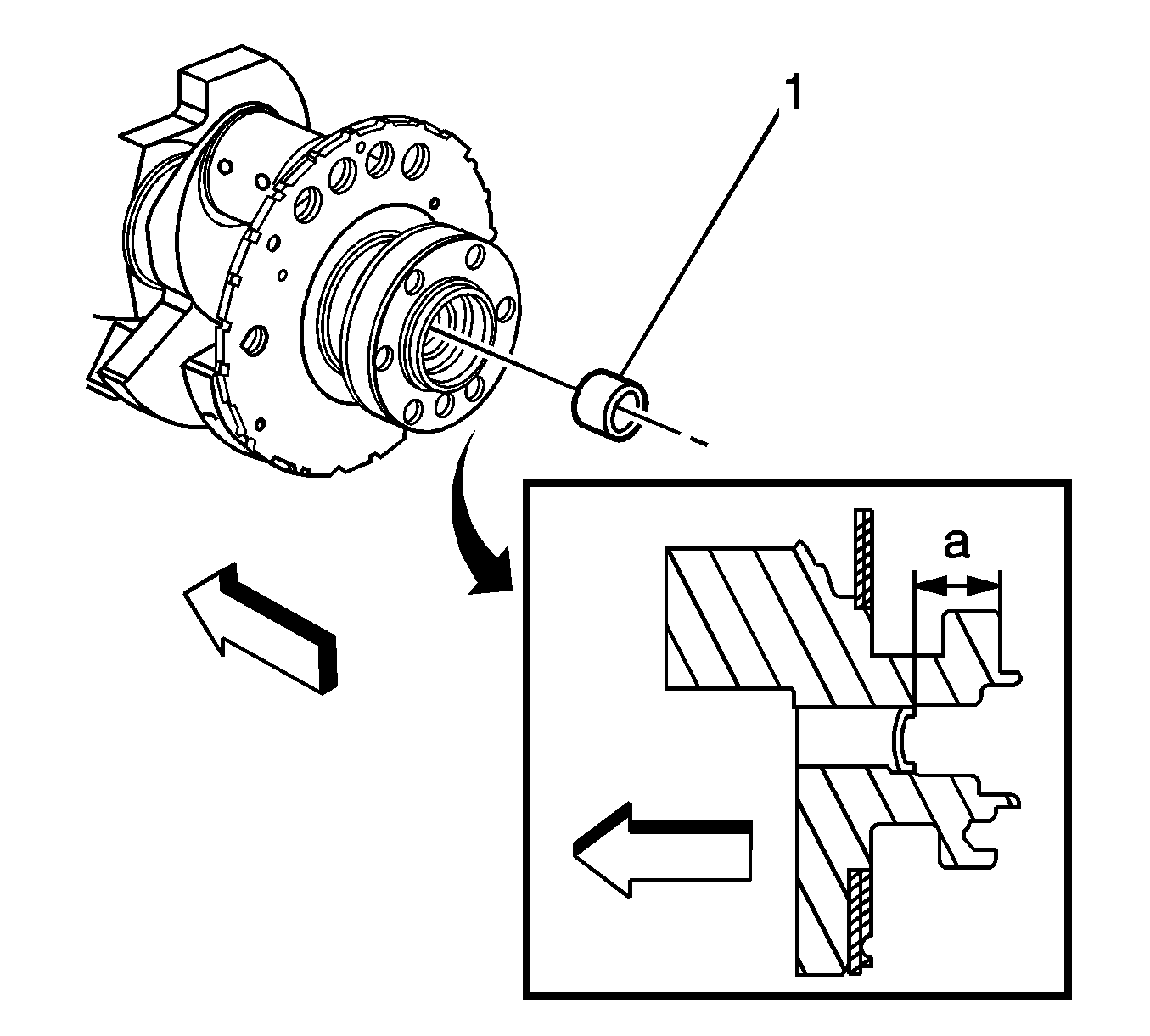

•Install the new oil gallery plug to a depth of 31.2-31.6 mm (1.22-1.24 in).
It's just the picture ID in the manual so don't worry about it.. I removed them to avoid confusion. Your part number is correct: GM part # 24502262
This will help you a lot: https://www.mediafire.com/?40mfgeoe4ctti
